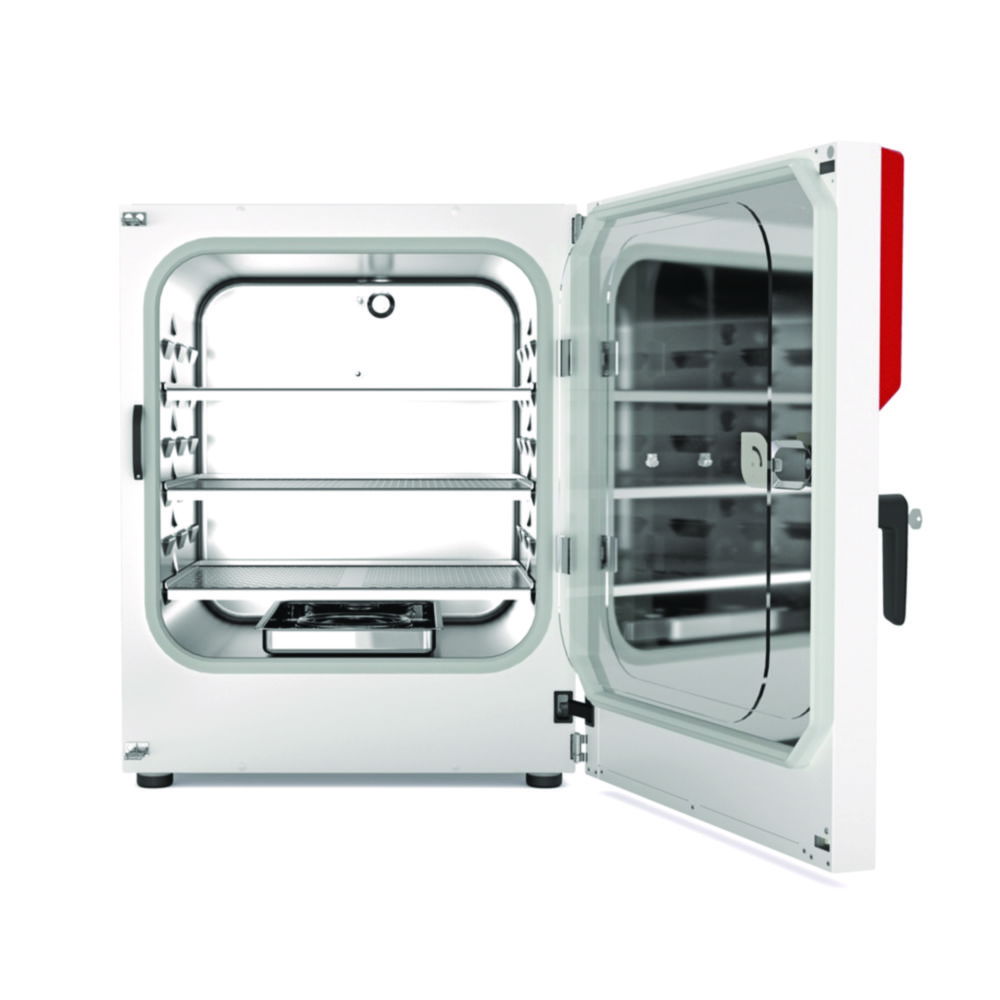

CO2 incubators CB-O, with O2 control
BINDER GmbH
Hersteller: BINDER GmbH
Produktinformationen "CO2 incubators CB-O, with O2 control"
Suitable for routine cell cultivation applications and incubation tasks, also for complex approaches under hypoxic conditions. Models with additional O2 control are available.
- Anti-contamination concept with 180 °C hot air sterilization
- CO2 sensor with single-beam infrared technology
- Seamless inner chamber made of stainless steel
- Fanless interior with Venturi CO2 gas mixing nozzle
- Internal data logger, measured values can be read out via USB
- Troubleshooting system with visual and acoustic alarms
- Interfaces: Ethernet, USB, zero-voltage alarm contact
- Humidification system with condensation protection
- Touchscreen controller
- Fail-safe CO2 system for protecting the pH of cell cultures
Eigenschaften "CO2 incubators CB-O, with O2 control"
| CO₂ range: | 0 ... 20 % |
|---|---|
| Depth int.: | 500 mm |
| Ext. depth: | 715 mm |
| Ext. height: | 870 mm |
| Ext. width: | 680 mm |
| External dimensions (WxDxH): | 680 x 715 x 870 mm |
| Height int.: | 600 mm |
| Int. width: | 560 mm |
| Internal dimensions (WxDxH): | 560 x 500 x 600 mm |
| Manufacturer Article Number: | 9640-0012 |
| Material interior: | Stainless steel |
| Max. CO₂: | 20 % |
| Max. O₂: | 20 % |
| Max. no. of inserts: | 6 |
| Max. relative humidity: | 95 % |
| Max. temperature: | 60 °C |
| Max. voltage: | 120 V |
| Min. CO₂: | 0 % |
| Min. O₂: | 0.2 % |
| Min. relative humidity: | 90 % |
| Min. temperature: | +6 °C |
| Min. voltage: | 100 V |
| Nominal capacity: | 170 l |
| O₂: | 0.2 ... 20 % |
| Plug type: | US |
| Power supply: | 100 ... 120 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1.4 kW |
| Relative humidity: | 90 ... 95 % |
| Temperature: | RT+6 ... 60 °C |
| Temperature addition: | RT |
| Temperature stability: | ±0,1 K (37 °C) |
| Type: | CB170-O-UL |
| Type of auxiliary energy: | Mains connection |
| Weight: | 95 kg |
