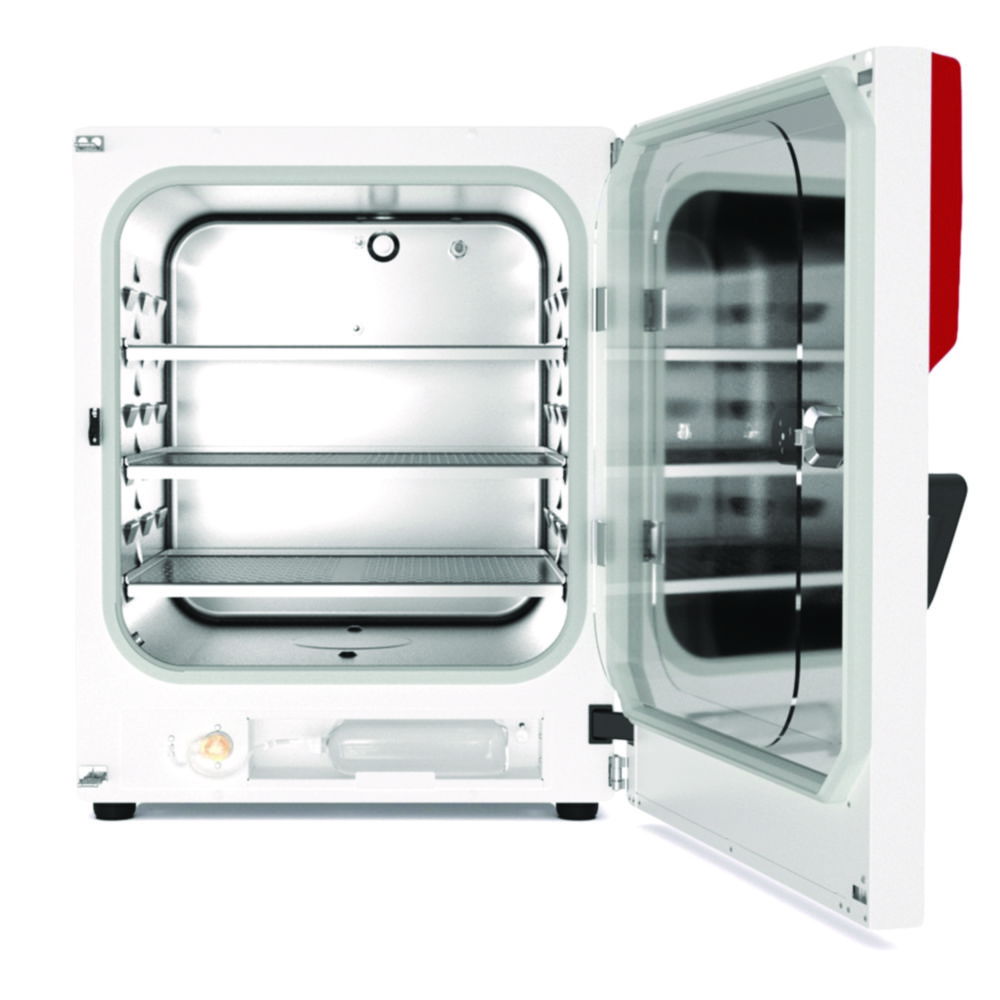

CO2 incubators CBF, with humidity control
BINDER GmbH
Hersteller: BINDER GmbH
Produktinformationen "CO2 incubators CBF, with humidity control"
Suitable for routine cell cultivation applications and incubation tasks, also for complex approaches under hypoxic conditions. Models with additional O2 control are available.
- Anti-contamination concept with 180 °C hot air sterilization
- CO2 sensor with single-beam infrared technology
- Seamless inner chamber made of stainless steel
- Fanless interior with Venturi CO2 gas mixing nozzle
- Internal data logger, measured values can be read out via USB
- Troubleshooting system with visual and acoustic alarms
- Interfaces: Ethernet, USB, zero-voltage alarm contact
- Contamination-safe humidification system without water pan
- Touchscreen controller
- Fail-safe CO2 system for protecting the pH of cell cultures
Eigenschaften "CO2 incubators CBF, with humidity control"
| CO₂ range: | 0 ... 20 % |
|---|---|
| Depth int.: | 500 mm |
| Ext. depth: | 715 mm |
| Ext. height: | 870 mm |
| Ext. width: | 680 mm |
| External dimensions (WxDxH): | 680 x 715 x 870 mm |
| Height int.: | 600 mm |
| Int. width: | 560 mm |
| Internal dimensions (WxDxH): | 560 x 500 x 600 mm |
| Manufacturer Article Number: | 9640-0019 |
| Material interior: | Stainless steel |
| Max. CO₂: | 20 % |
| Max. no. of inserts: | 6 |
| Max. relative humidity: | 95 % |
| Max. temperature: | 60 °C |
| Max. voltage: | 120 V |
| Min. CO₂: | 0 % |
| Min. relative humidity: | 50 % |
| Min. temperature: | +6 °C |
| Min. voltage: | 100 V |
| Nominal capacity: | 170 l |
| Plug type: | US |
| Power supply: | 100 ... 120 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1.4 kW |
| Relative humidity: | 50 ... 95 % |
| Temperature: | RT+6 ... 60 °C |
| Temperature addition: | RT |
| Temperature stability: | ±0,1 K (37 °C) |
| Type: | CBF 170UL |
| Type of auxiliary energy: | Mains connection |
| Weight: | 95 kg |
