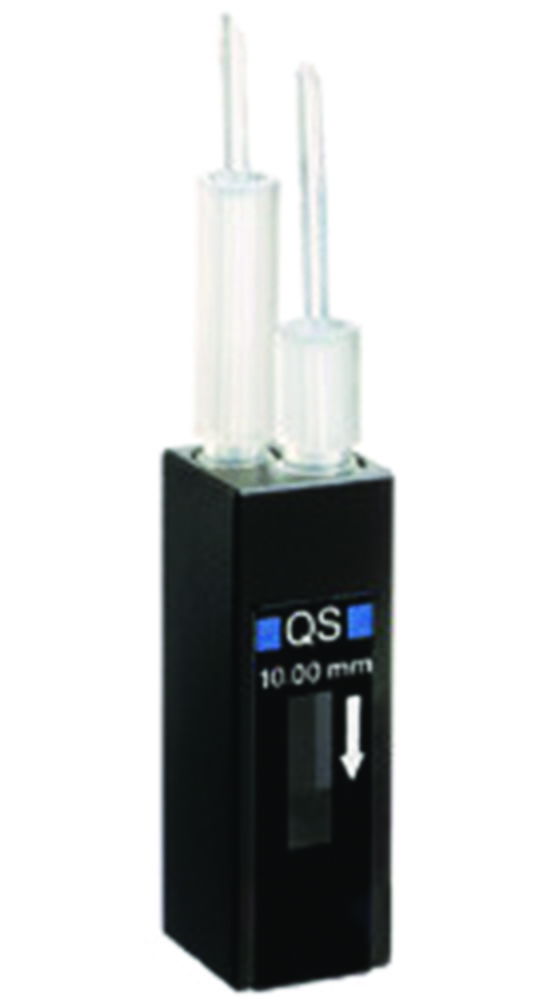

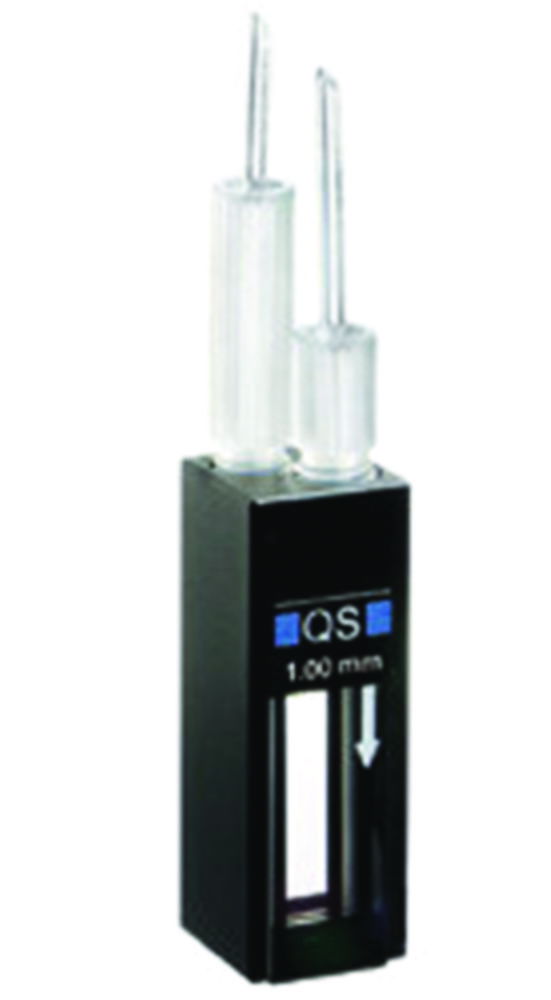

Cells for Absorption Measurement, Flow-Through Measurement, UV-range
Hellma GmbH & Co. KG
Hersteller: Hellma GmbH & Co. KG
Produktinformationen "Cells for Absorption Measurement, Flow-Through Measurement, UV-range"
Optical material:
QS: Quartz glass High Performance, wavelength range: 200 - 2500 nm.
OS: Special Optical Glass, wavelength range: 320 - 2500 nm.
* M 6 x 1 and FEP tubes (outside diameter 1.9mm, inner diameter 1.1mm, length 500mm)
QS: Quartz glass High Performance, wavelength range: 200 - 2500 nm.
OS: Special Optical Glass, wavelength range: 320 - 2500 nm.
* M 6 x 1 and FEP tubes (outside diameter 1.9mm, inner diameter 1.1mm, length 500mm)
Eigenschaften "Cells for Absorption Measurement, Flow-Through Measurement, UV-range"
| Capacity µl: | 750 |
|---|---|
| Centre height mm: | 8.5 |
| Description: | Supply and outlet tubes |
| External dimensions (W x D x H) mm: | 12.5 x 12.5 x 38.5 |
| Internal width mm: | 11 x 6.5 |
| Manufacturer Article Number: | 175-85-10-40 |
| Material: | QS |
| Path length mm: | 10 |
| Type: | macro |
| UNSPSC: | 41-12-18-13 |
