Distillation

Made of DURAN® tubing. With valve stopcock for dosing, with glass olive (angle: 90°).

For economic production of high purity distilled water. The devices are eqipped with 2 independent safety thermostats that prevent from overheating in the event of failure of the water supply. With built in acid addition funnel and stopcock for easy descaling without dismantling. Screwthreads are incorporated on all water connections so hoses can be fitted and removed easily and safely without risk of breakage. The condenser design ensures that the droplets of distilled water stay in contact with the cooling coil as long as possible for providing cold distilled water.Glass constructionAutomatic switch-off prevents overflowPre-drilled stand for easy wall mountingWith metal/silica sheated metal heatersSpecificationsWS-100-4 // WS-200-4-220pH range:5.0…6.5Conductivity:3.0…4.0 µS/cm // 1.0…2.0 µS/cmResistance:0.25…0.3 mΩ/cm // 0.5…1.0 mΩ/cmWater consumption: Output:approx. 60 l/h 4 l/hPower consumption: Dimensions MERIT (W x T x H): Dimensions DISTINCTION (W x T x H):3000 W 500 x 150 x 450 mm 540 x 160 x 410 mmPower supply:220-240 V, 50-60 Hz

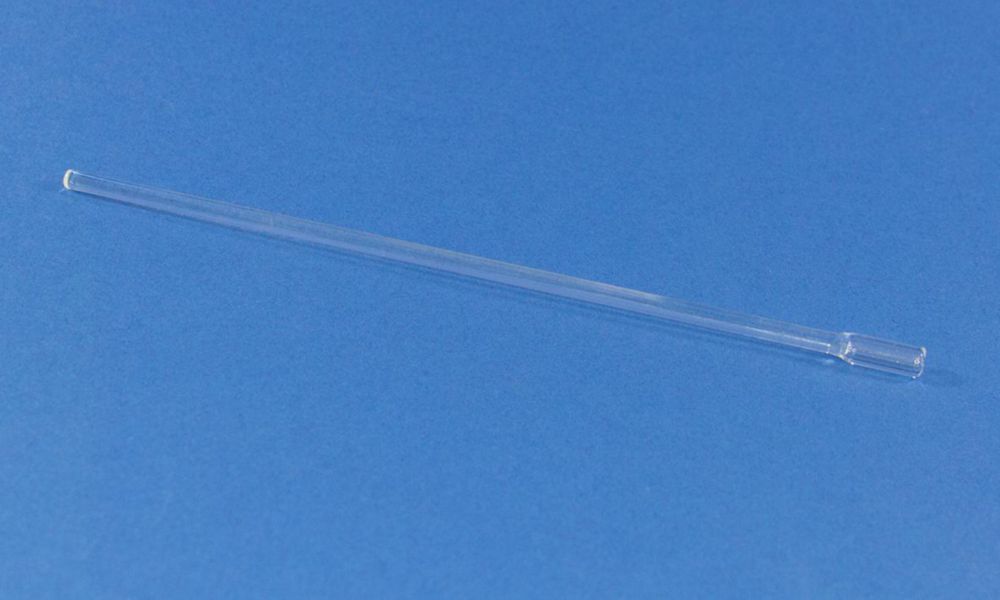

Made of DURAN® tubing. Straight air leak tubes, built-in length: 200mm, with NS cone and thin capillary (easily to draw by burner).

Made from borosilicate glass. For fully automated, unattended operation, equipped with over-temperature thermostat, flow meter and reservoir level control. The water still works with every water supply. With silica sheathed heaters for the production of 8 l pyrogen-free distillate of high purity from any raw water supply. Rapid descaling with no need to dismantle the device thanks to the integrated funnel for addition of acid and the PTFE stopcock for draining the cleaning solution. The acrylic safety screen and the cabinet lid are removable for unrivalled access to the glassware components. The water connections are equipped with screwthreads for easy and safe fitting and removing of hoses without risk of damage. All components are enclosed in a cabinet which can either stand on the laboratory bench or can be wall mounted.Automatic switch-off on full reservoirCan be operated from 20 kPa water pressureEasy to cleanWall mounting includedSpecificationspH value:5.0…6.5Conductivity:1.0…2.0 µS/cmResistance:0.5…1.0 mΩ/cmWater consumption: Output:approx. 120 l/h 8 l/hPower consumption: Dimensions (W x T x H):6000 W 550 x 240 x 410 mmPower supply:220…240 V, 50-60 Hz

Deionized and UV irradiated. Acc to DIN 43530 / EN 385. In plastic canister.Hazardous Substance DataSDSLink

Made of DURAN® tubing. Bent air leak tubes (angle: 90°), built-in length: 250mm, with NS cone and thin capillary (easily to draw by burner).

With bulb (Diameter: 6mm, Wall thickness: 1.5mm).

Developed for preparatory and analytical purposes. Suitable for biochemistry, biotechnology, microbiology, microanalysis. Can even be used in strong acids and alkalis, and in all solvents and oxidants. Suitable for vacuum and high-vacuum distillation. Reduces distillation times in rotary evaporators. No abrasion, absorption of substances or solvents. Softening (evaporation) occurs at 2500°C. Can be sterilised by dry heating. Effective in even the smallest volumes of liquid, even after multiple interruptions. Prevents any bumping. Highly resistant.

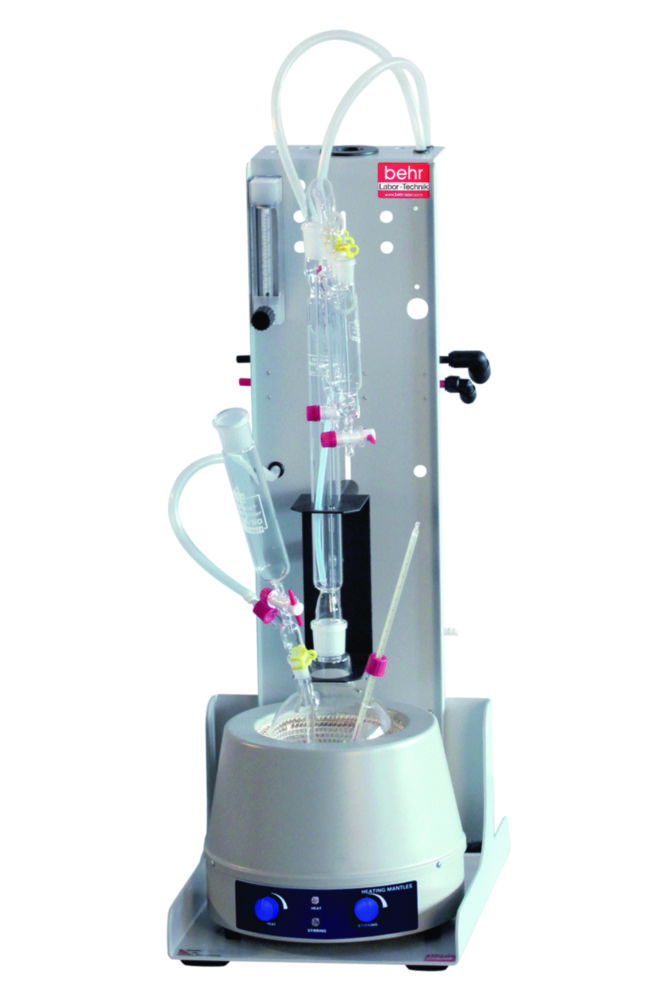

For determination of sulphur dioxide (total SO2), 2 absorption units per sample. With base unit, heating mantle, mounting frame and glassware, including 500ml reaction flasks. Systems with adsorption units or other flask sizes on request.
