Muffle furnaces

For daily laboratory use. Models with flap door or lift door available, for temperatures from 1100 °C to 1400 °C. Equipped with programmable controllers B 510 (with touch panel, 5 programmes with 4 segments each), or C 550 (with touch panel, 10 programmes with 20 segments each), L 1/12 with controller R 7 (continuous operation).Dual shell housing made of textured stainless steel sheets for low external temperatures and high stabilityAdjustable air inlet integrated in doorExhaust air outlet in rear wall of furnaceSolid state relays provide low-noise operationStandard connector 230 V 1/N/PE 50/60 Hz24 and 40 l with 400 V 3/N/PE 50/60 HzOptional:Chimney, chimney with fan or catalytic converterOver-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadProtective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter)Manual or automatic gas supply systemProcess control and documentation via VCD software package for monitoring, documentation and controlCeramic heating plates with integrated heating wire, splash and exhaust protected, easy to replaceHeating from two sides (three sides for interior volumes of 24, 40 and 60 l)The hot side of the lift door is facing away from the operatorExternal dimensions vary for versions with additional equipment. Dimensions on request.

For daily laboratory use. Models with flap door or lift door available, for temperatures from 1100 °C to 1400 °C. Equipped with programmable controllers B 510 (with touch panel, 5 programmes with 4 segments each), or C 550 (with touch panel, 10 programmes with 20 segments each), L 1/12 with controller R 7 (continuous operation).Dual shell housing made of textured stainless steel sheets for low external temperatures and high stabilityAdjustable air inlet integrated in doorExhaust air outlet in rear wall of furnaceSolid state relays provide low-noise operationStandard connector 230 V 1/N/PE 50/60 Hz24 and 40 l with 400 V 3/N/PE 50/60 HzOptional:Chimney, chimney with fan or catalytic converterOver-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadProtective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter)Manual or automatic gas supply systemProcess control and documentation via VCD software package for monitoring, documentation and controlCeramic heating plates with integrated heating wire, splash and exhaust protected, easy to replaceHeating from two sides (three sides for interior volumes of 24, 40 and 60 l)Lift door with hot surface facing away from the operatorExternal dimensions vary for versions with additional equipment. Dimensions on request.

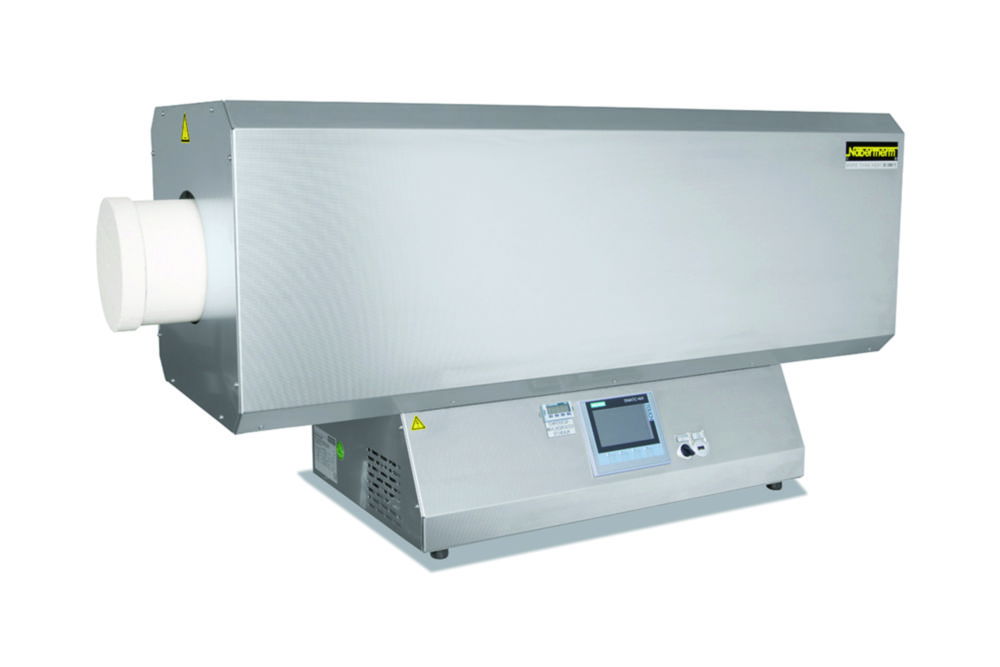

These compact tube furnaces with integrated control systems can be used universally for many processes. Equipped with a standard working tube of C 530 ceramic and two fiber plugs, these tube furnaces have an unbeatable price/performance ratio.Tmax 1200 °C or 1300 °CSingle-zoned design as standardDual shell housing made of sheets of textured stainless steelOuter tube diameter of 50 to 170 mm, heated length from 250 to 1000 mmWorking tube of C 530 ceramic including two fiber plugs as standard equipmentSolid state relays provide for lownoise operationAvailable with the programmable controllers B 510, C 550 and P 580 (for three-zoned design) with adjustable ramps and hold timesStandard power supply 400 V 3/N/PE 50/60 Hz (R 50/250 und R 50/500: 220 V, 1/N/PE, 50/60 Hz)Option:Over-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadCharge control with temperature measurement in the working tube and in the furnace chamber outside the tubeThree-zoned design (heated length from 500 mm)Working tubesGas supply systems for protective gas or vacuum operationProcess control and documentation with VCD software package

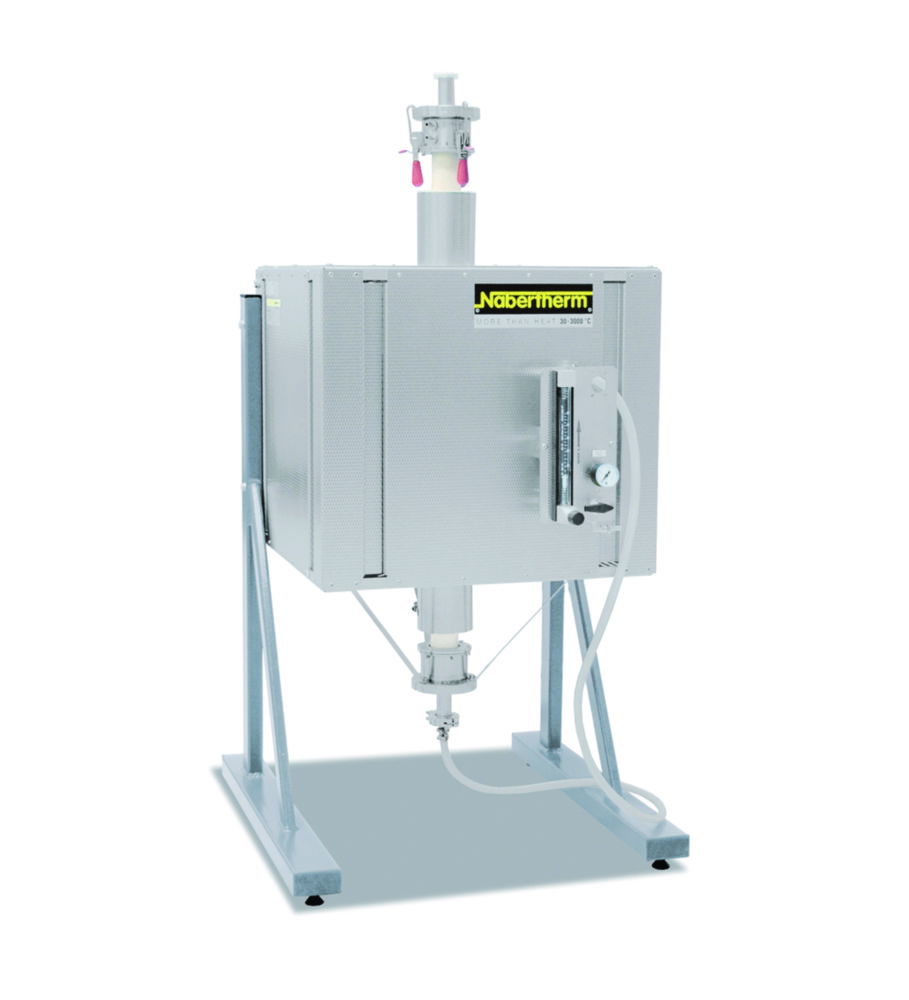

The high-temperature tube furnaces are available in either horizontal (type RHTH) or vertical (type RHTV) designs. High-quality insulation materials made of vacuum-formed fibre plates enable energy-saving operation and a fast heating time due to low heat storage and heat conductivity. By using different gas supply systems, operations can be performed under a protective gas atmosphere, vacuum, or even with flammable gasses.Tmax 1600 °C, 1700 °C or 1800 °CMoSi2 heating elements, mounted vertically for easy replacementInsulation with vacuum-formed ceramic fibre platesRectangular outer housing with slots for convection coolingModels RHTV with hinges for wall mountingHousing made of sheets of textured stainless steelCeramic working tube made of material C 799 incl. fibre plugs operation under airType B thermocoupleSwitchgear separate from furnace in separate floor standing cabinetSwitchgear with control unitPossible controller variants are the programmable B 500, C 550 and P 570 (threes) with adjustable ramps and hold times.Over-temperature limit controller with manual reset for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the oven and loadInsulation only made of materials that are classified as not carcinogenic acc. to TRGS 905, class 1 or 2Standard power supply 400 V 3/N/PE 50/60 HzDimensions without tube.Option:Charge control with temperature measurement in the working tube and in the oven chamber behind the tubeAlternative working tubes designed for process requirementsDisplay of inner tube temperature with additional thermocoupleGas-tight flanges for protective gas and vacuum operationManual or automatic gas supply systemThree- or five-zone control for optimization of temperature uniformityCheck valve at gas outlet avoids intrusion of false air

For daily laboratory use. Models with flap door or lift door available, for temperatures from 1100 °C to 1400 °C. Equipped with programmable controllers B 510 (with touch panel, 5 programmes with 4 segments each), or C 550 (with touch panel, 10 programmes with 20 segments each), L 1/12 with controller R 7 (continuous operation).Dual shell housing made of textured stainless steel sheets for low external temperatures and high stabilityAdjustable air inlet integrated in doorExhaust air outlet in rear wall of furnaceSolid state relays provide low-noise operationStandard connector 230 V 1/N/PE 50/60 Hz24 and 40 l with 400 V 3/N/PE 50/60 HzOptional:Chimney, chimney with fan or catalytic converterOver-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadProtective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter)Manual or automatic gas supply systemProcess control and documentation via VCD software package for monitoring, documentation and controlMax. temperature 1400 °C (recommended working temperature for processes with longer dwell times is 1300 °C)Heating elements on support tubes for free heat radiation, short heating times and long service lifeHeating from two sidesFlap door can be used as work platformExternal dimensions vary for versions with additional equipment. Dimensions on request.

For daily laboratory use. Models with flap door or lift door available, for temperatures from 1100 °C to 1400 °C. Equipped with programmable controllers B 510 (with touch panel, 5 programmes with 4 segments each), or C 550 (with touch panel, 10 programmes with 20 segments each), L 1/12 with controller R 7 (continuous operation).Dual shell housing made of textured stainless steel sheets for low external temperatures and high stabilityAdjustable air inlet integrated in doorExhaust air outlet in rear wall of furnaceSolid state relays provide low-noise operationStandard connector 230 V 1/N/PE 50/60 Hz24 and 40 l with 400 V 3/N/PE 50/60 HzOptional:Chimney, chimney with fan or catalytic converterOver-temperature limiter with adjustable cutout temperature for thermal protection class 2 in accordance with EN 60519-2 as temperature limiter to protect the furnace and loadProtective gas connection to purge with non-flammable protective or reaction gases (not available in combination with chimney, chimney with fan or catalytic converter)Manual or automatic gas supply systemProcess control and documentation via VCD software package for monitoring, documentation and controlMax. temperature 1400 °C (recommended working temperature for processes with longer dwell times is 1300 °C)Heating elements on support tubes for free heat radiation, short heating times and long service lifeHeating from two sidesLift door with hot surface facing away from the operatorExternal dimensions vary for versions with additional equipment. Dimensions on request.

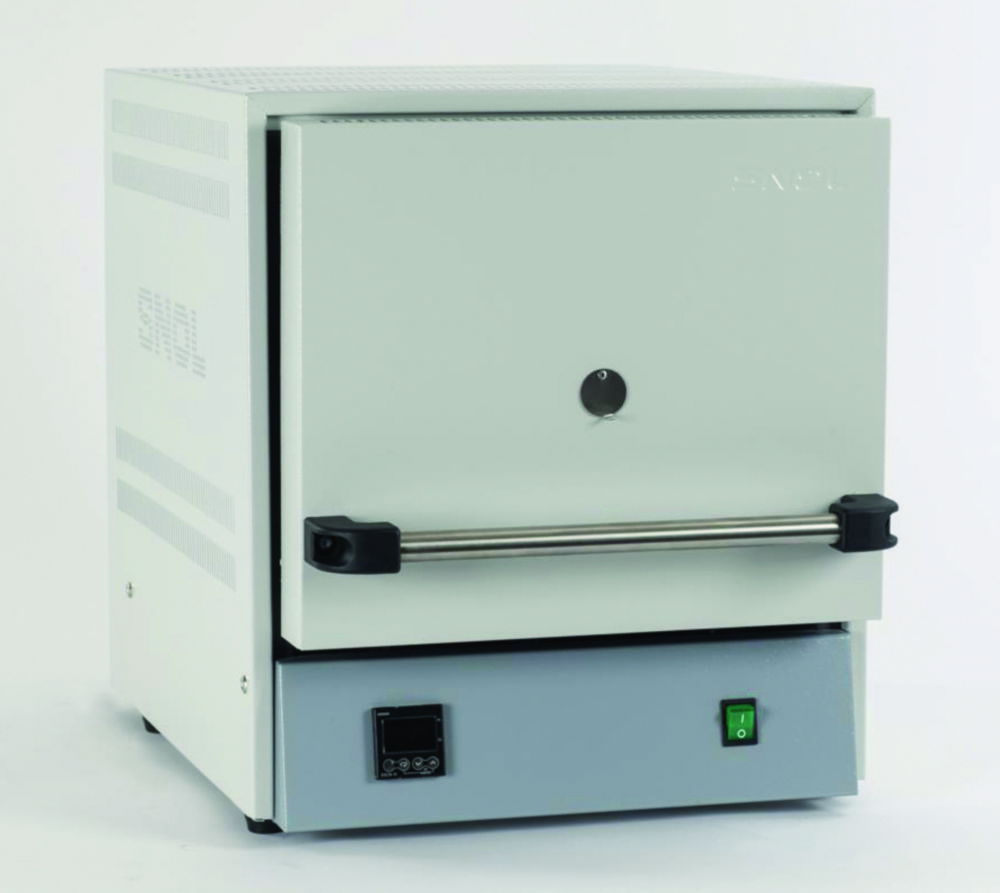

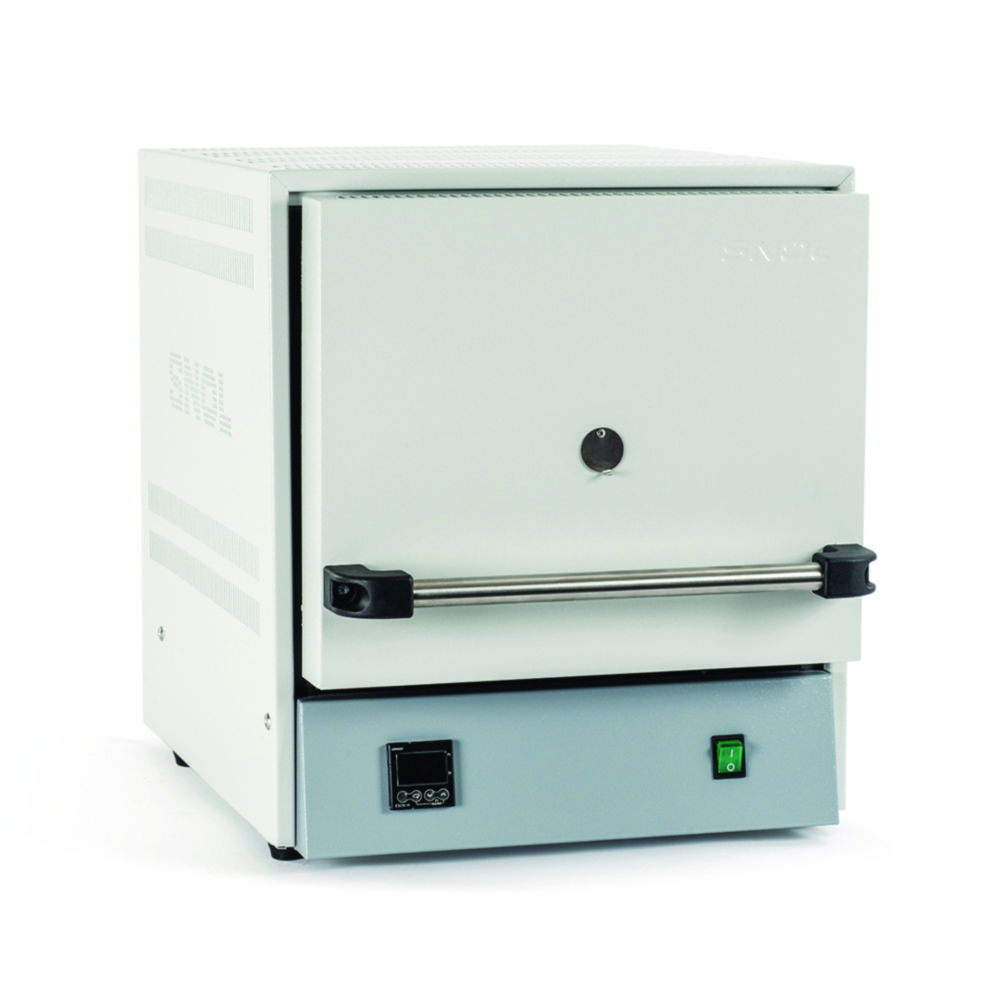

Muffle furnaces with fibre-insulated chambers and ceramic heating plates. Suitable for thermal treatments in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalCeramic bottom plateControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)

Muffle furnaces with fibre-insulated chambers and ceramic heating plates. Suitable for thermal treatments in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalCeramic bottom plateControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)

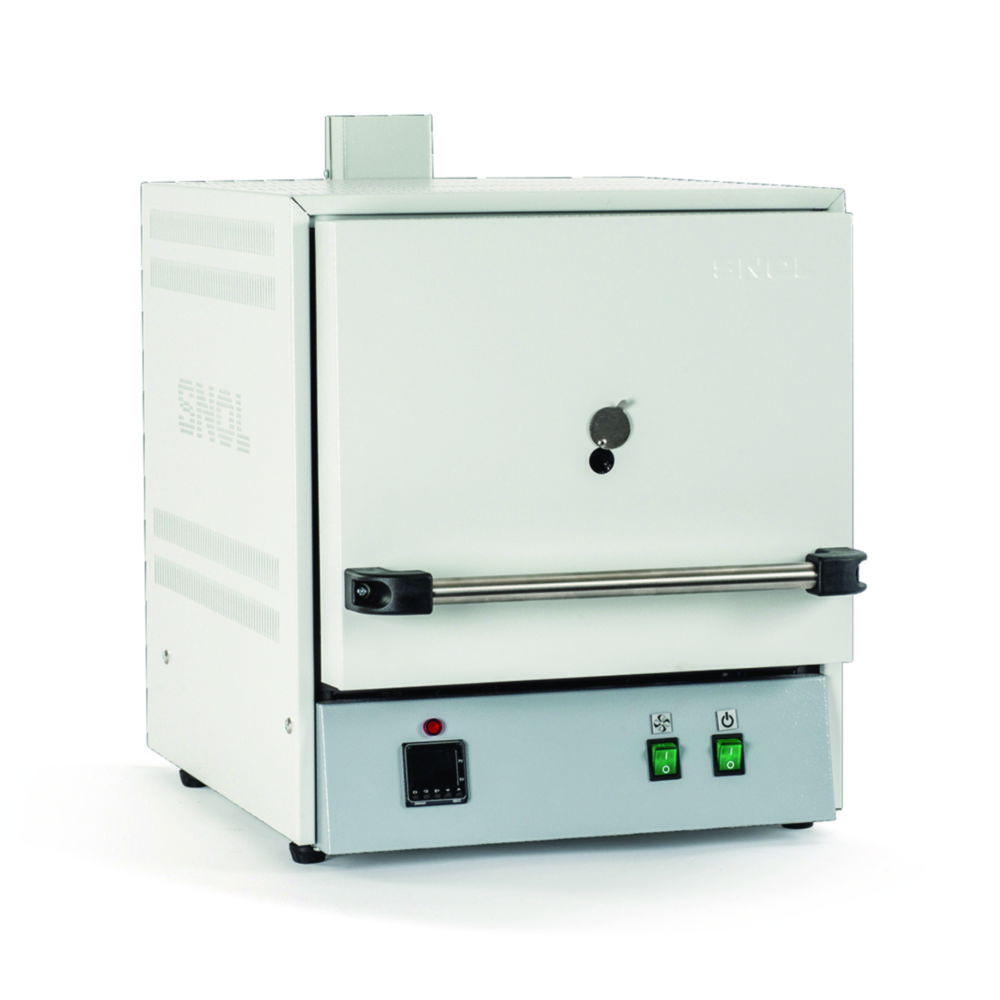

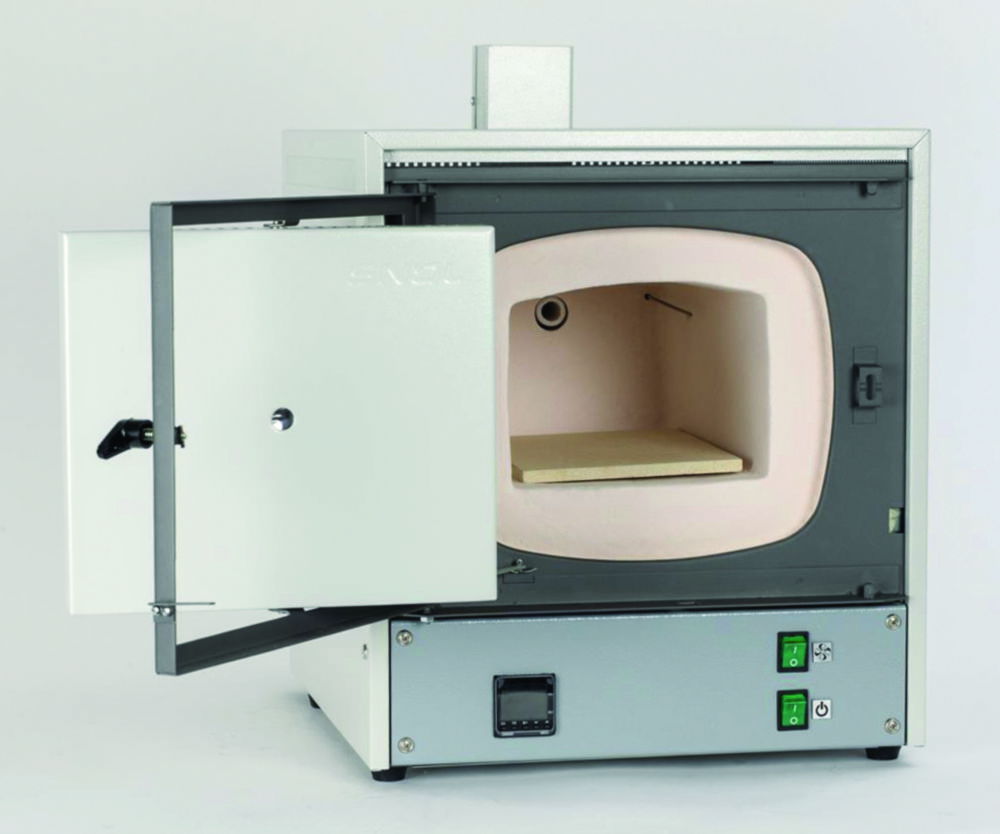

Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)

Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)

Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)

Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)

Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)

Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith basic temperature controller Omron E5CC with adjustable temperature and time (not programmable)

Muffle furnaces with fibre-insulated chambers and ceramic heating plates. Suitable for thermal treatments in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalCeramic bottom plateControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments

Muffle furnaces with fibre-insulated chambers and ceramic heating plates. Suitable for thermal treatments in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalCeramic bottom plateControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments

Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments

Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments

Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments

Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments

Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments

Ashing furnaces with muffle chamber made of ceramic fibres and exhaust chimney. Suitable for applications in industry, science and medicine.Side, top or down-opening door depending on modelOuter casing made of powder-coated sheet metalExhaust chimney with fanControl panel in the lower part of the ovenIncl. door safety switchFast heating timeGood stability and temperature distributionLow power consumptionWith temperature controller Omron E5CC-T: programmable PID controller with 8 programmes and 32 programming segments

The chamber furnaces are suitable for Annealing, Hardening and Brazing. The furnaces can be extended with a variety of accessories, like annealing boxes for operation under protective gas, roller guides, or a cooling station with a quench tank. Even high-performance applications like the annealing of titanium can be implemented without the use of expensive and complicated annealing systems.Robust insulation with light refractory bricksDeep furnace chamber with three-sides heating: from both side walls and bottomLow energy consumption due to multi-layer insulationBase frame includedN 7/H - N 17/HR designed as table-top modelParallel guided downward swinging door (user protected from heat radiation)NTLog Basic for Nabertherm controller: recording of process data with USB-flash driveEquipped with the B 500 programmable controller (with touch panel, 5 programmes with 4 segments each), optionally available with the C 540 controller

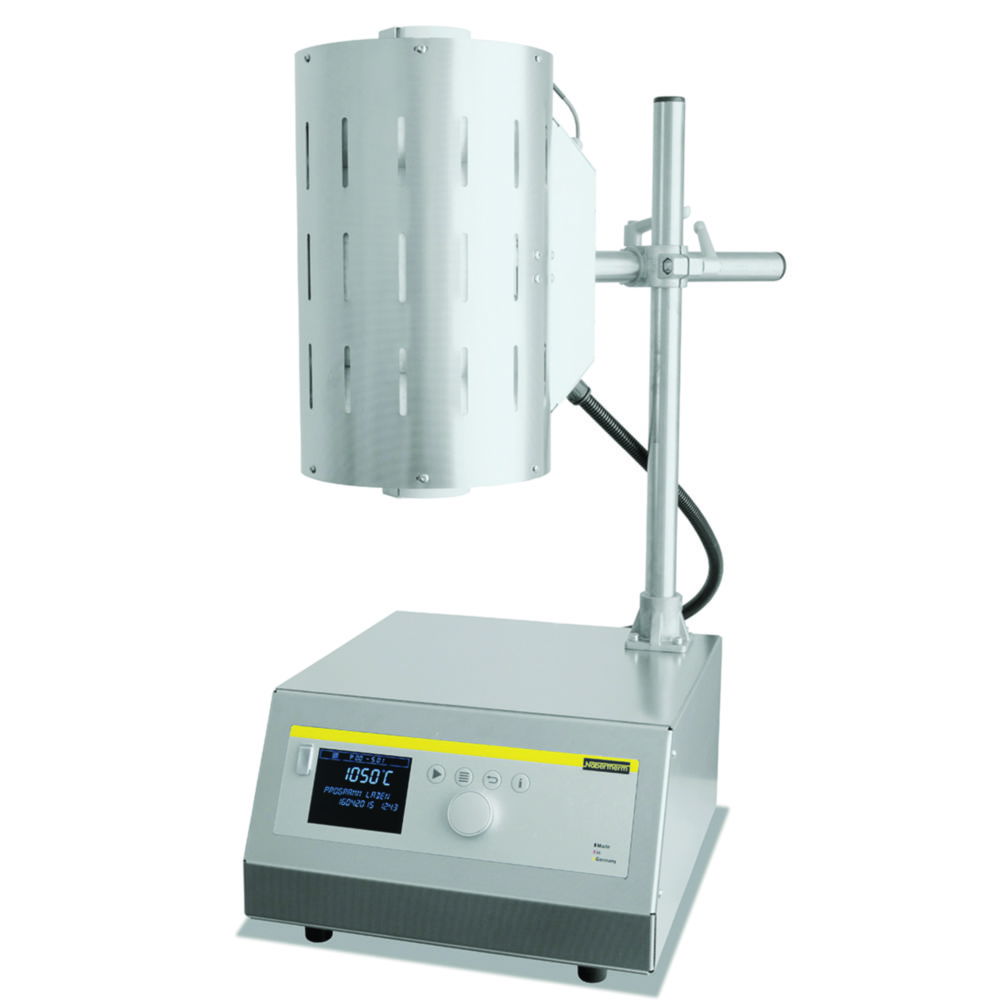

These compact tube furnaces are used when laboratory experiments must be performed horizontally, vertically, or at specific angles. The ability to configure the angle of tilt and the working height, and their compact design, also make these tube furnaces suitable for integration into existing process systems.Vertical or horizontal operation freely adjustableWorking height freely adjustableWorking tube made of C 530 ceramicControl system integrated in furnace baseNTLog Basic for Nabertherm controller: recording of process data with USB-flash driveEquipped with the programmable controller B 510 (with touch panel, 5 programmes with 4 segments each), optionally available with the C 550 controller (with touch panel, 10 programmes with 20 segments each)
