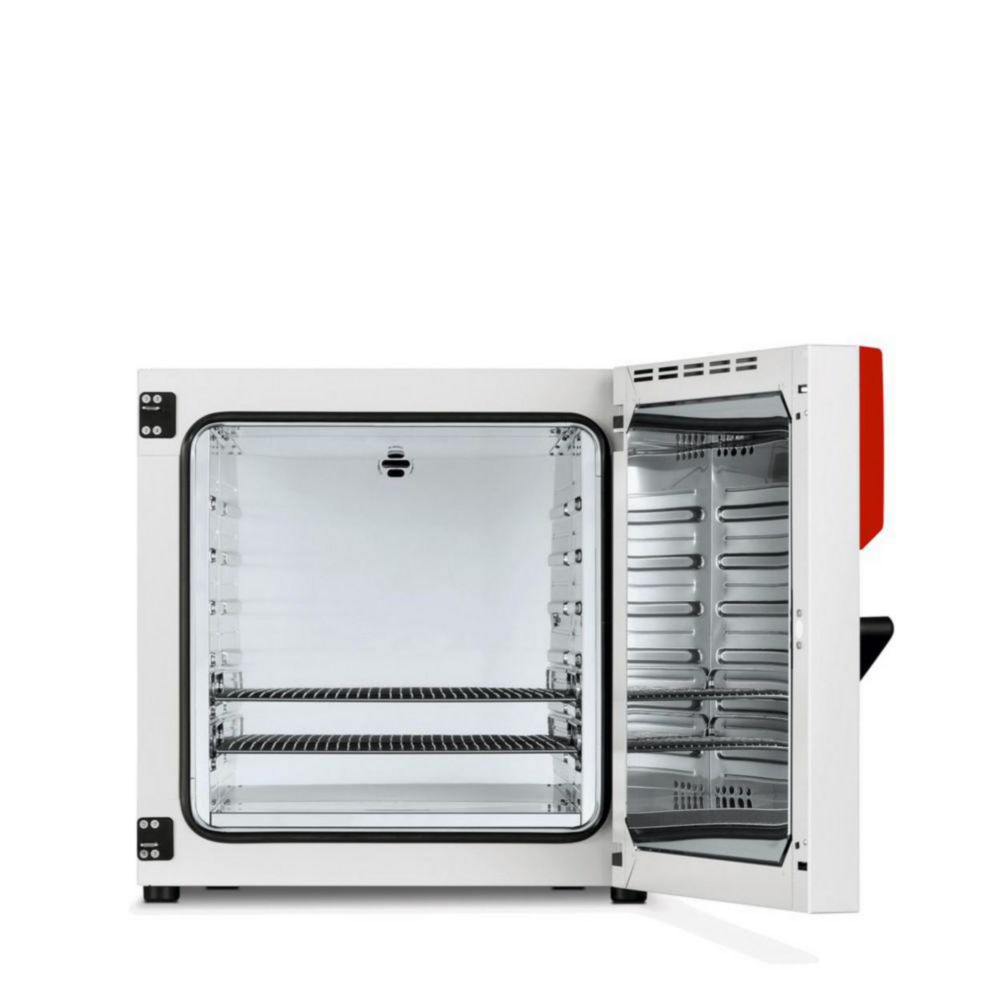

Drying and heating chambers FD Avantgarde.Line
BINDER GmbH
Hersteller: BINDER GmbH
Produktinformationen "Drying and heating chambers FD Avantgarde.Line"
Drying and heating chambers are suitable for routine drying and sterilisation tasks with homogeneous temperature distribution.
- High temperature accuracy thanks to APT.line™ technology
- Electromechanical control of the exhaust air flap
- Chambers up to 115 l are stackable
- Ergonomic handle design
- USB connection for data recording
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- With forced convection
- Controller with LCD display
Eigenschaften "Drying and heating chambers FD Avantgarde.Line"
| Depth int.: | 385 mm |
|---|---|
| Ext. depth: | 605 mm |
| Ext. height: | 735 mm |
| Ext. width: | 710 mm |
| External dimensions (WxDxH): | 710 x 605 x 735 mm |
| Height int.: | 550 mm |
| IP code: | IP 20 |
| Int. width: | 550 mm |
| Internal dimensions (WxDxH): | 550 x 385 x 550 mm |
| Manufacturer Article Number: | 9010-0305 |
| Material interior: | Stainless steel |
| Max. no. of inserts: | 5 |
| Max. temperature: | 300 °C |
| Max. voltage: | 230 V |
| Min. temperature: | +10 °C |
| Nominal capacity: | 116 l |
| Plug type: | EU |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 1.3 kW |
| Temperature: | RT+10 ... 300 °C |
| Temperature addition: | RT |
| Temperature stability: | ±0,3 K (150 °C) |
| Type: | FD 115 |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104510 |
| Weight: | 54 kg |
| With timer: | Yes |
