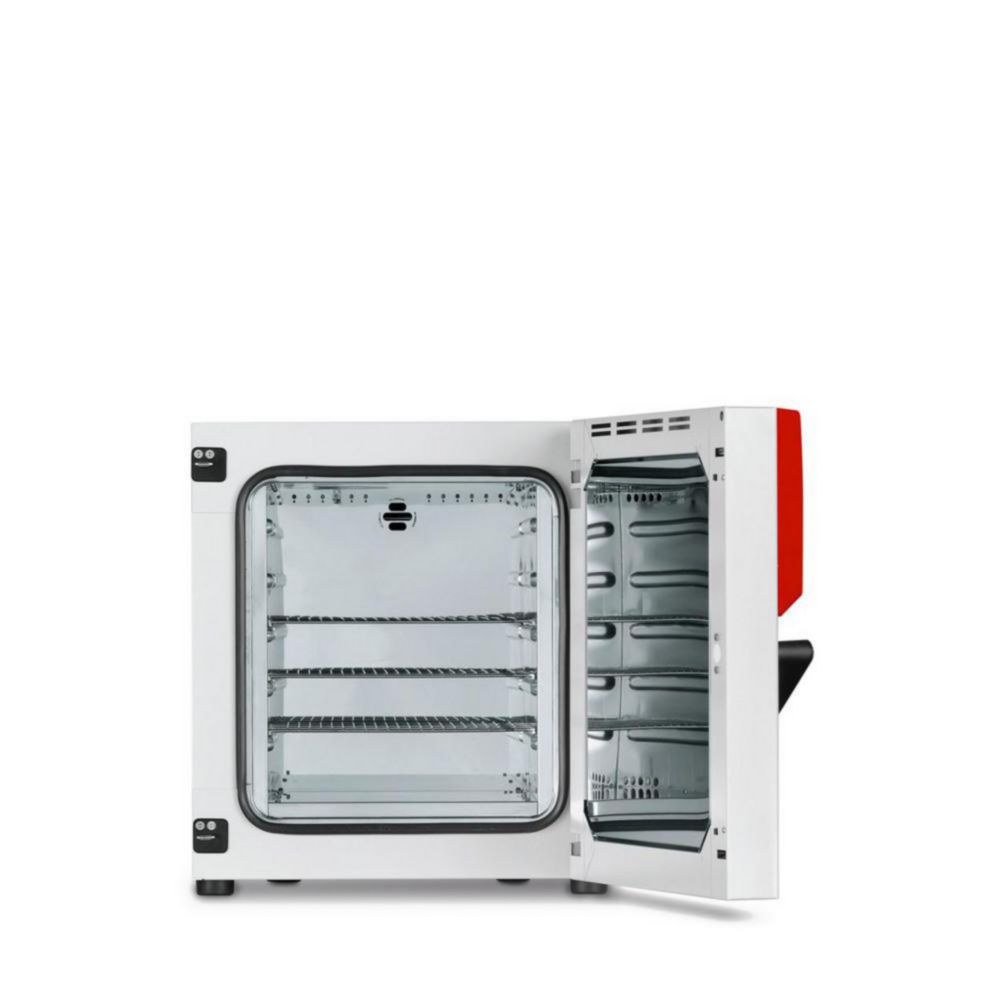

Drying and heating chambers FED Avantgarde.Line
BINDER GmbH
Hersteller: BINDER GmbH
Produktinformationen "Drying and heating chambers FED Avantgarde.Line"
Drying and heating chambers are suitable for routine drying and sterilisation tasks with homogeneous temperature distribution.
- High temperature accuracy thanks to APT.line™ technology
- Electromechanical control of the exhaust air flap
- Chambers up to 115 l are stackable
- Ergonomic handle design
- USB connection for data recording
- Class 2 integrated independent adjustable temperature safety device (DIN 12880) with visual alarm
- With forced convection
- Controller with LCD display and enhanced timer functions
- Adjustable fan speed
- Ethernet interface
Eigenschaften "Drying and heating chambers FED Avantgarde.Line"
| Depth int.: | 345 mm |
|---|---|
| Ext. depth: | 565 mm |
| Ext. height: | 625 mm |
| Ext. width: | 560 mm |
| External dimensions (WxDxH): | 560 x 565 x 625 mm |
| Height int.: | 440 mm |
| IP code: | IP 20 |
| Int. width: | 400 mm |
| Internal dimensions (WxDxH): | 400 x 345 x 440 mm |
| Manufacturer Article Number: | 9010-0296 |
| Material interior: | Stainless steel |
| Max. no. of inserts: | 4 |
| Max. temperature: | 300 °C |
| Max. voltage: | 120 V |
| Min. temperature: | +10 °C |
| Nominal capacity: | 60 l |
| Plug type: | US |
| Power supply: | 120 V, 60 Hz |
| Power supply frequency: | 60 Hz |
| Rated capacity: | 1.2 kW |
| Temperature: | RT+10 ... 300 °C |
| Temperature addition: | RT |
| Temperature stability: | ±0,3 K (150 °C) |
| Type: | FED 56UL |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104510 |
| Weight: | 39 kg |
| With timer: | Yes |
