Dispersers & mills

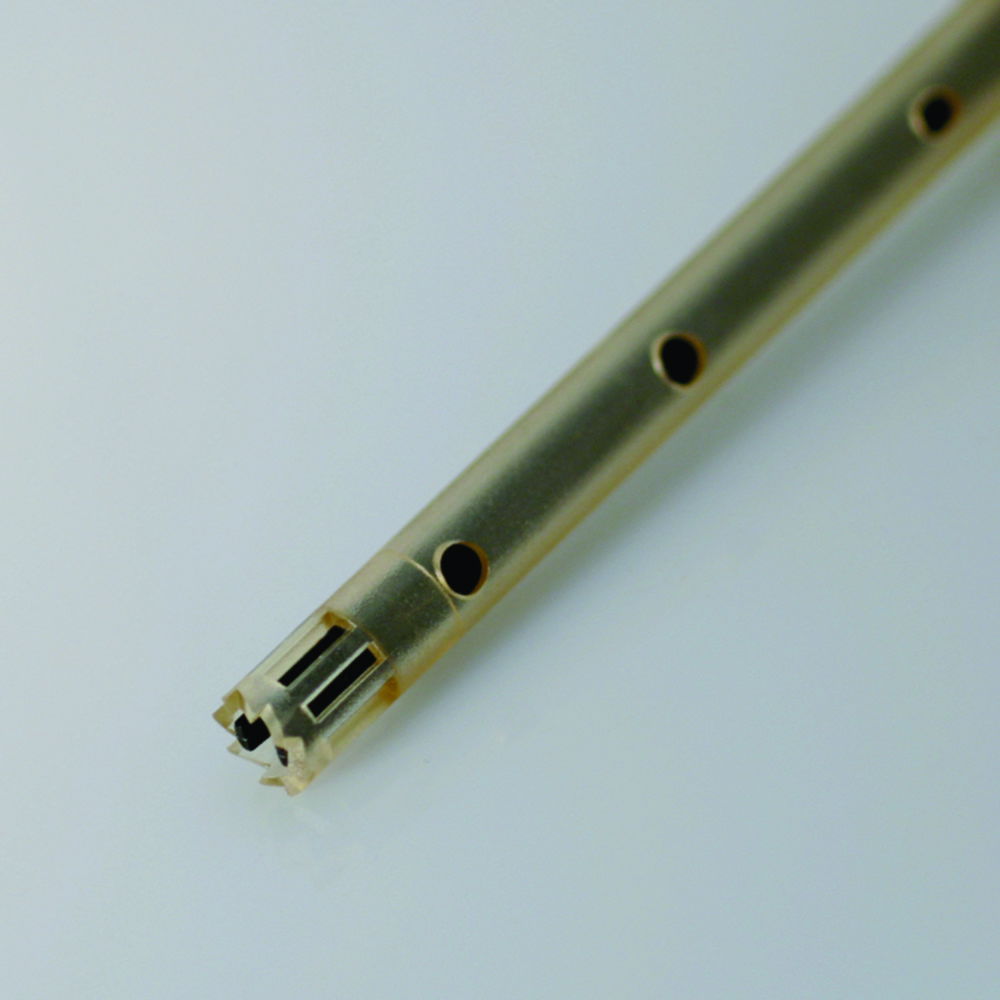

Type addition EC (STANDARD DISPERSING HEADS): The universal geometry uses two rows of teeth, is suitable for a large spectrum of laboratory applications, and it is reliable and efficient.Type addition BEC: High-turbulence mixing head, suitable for suspension of solid particles and for high viscosity applications.Type addition W: Dispersing head for fibrous and tough materials.Type addition SYN (SYNTHETICS): Disposable dispersing heads for theprocessing of multiple samples per day, where the required sterilization of stainless steel dispersing heads represents a significant time limitation. Available in PES / Special POM. Sterile packed.Type addition E: Coupling type EType addition F: Coupling type F*sterile

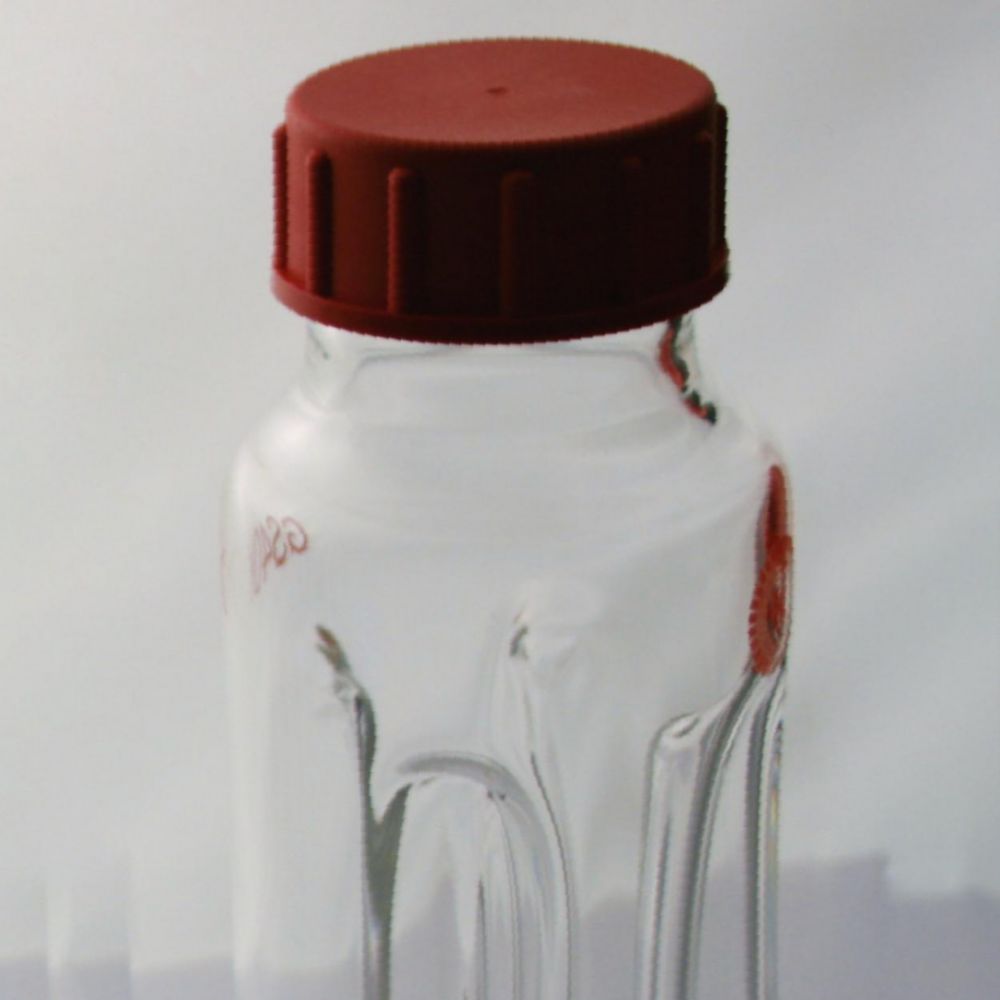

GS jars have a cloverleaf-like shape creating high turbulences optimizing the mixing and the dispersing efficiency. This minimizes the machining time and reducing the application of energy. The sterilisable screw caps with PTFE or a silicone seal are temperature-resistant up to 180 °C.

Dimensions stand (LxDxH) : 360x180x195 mm

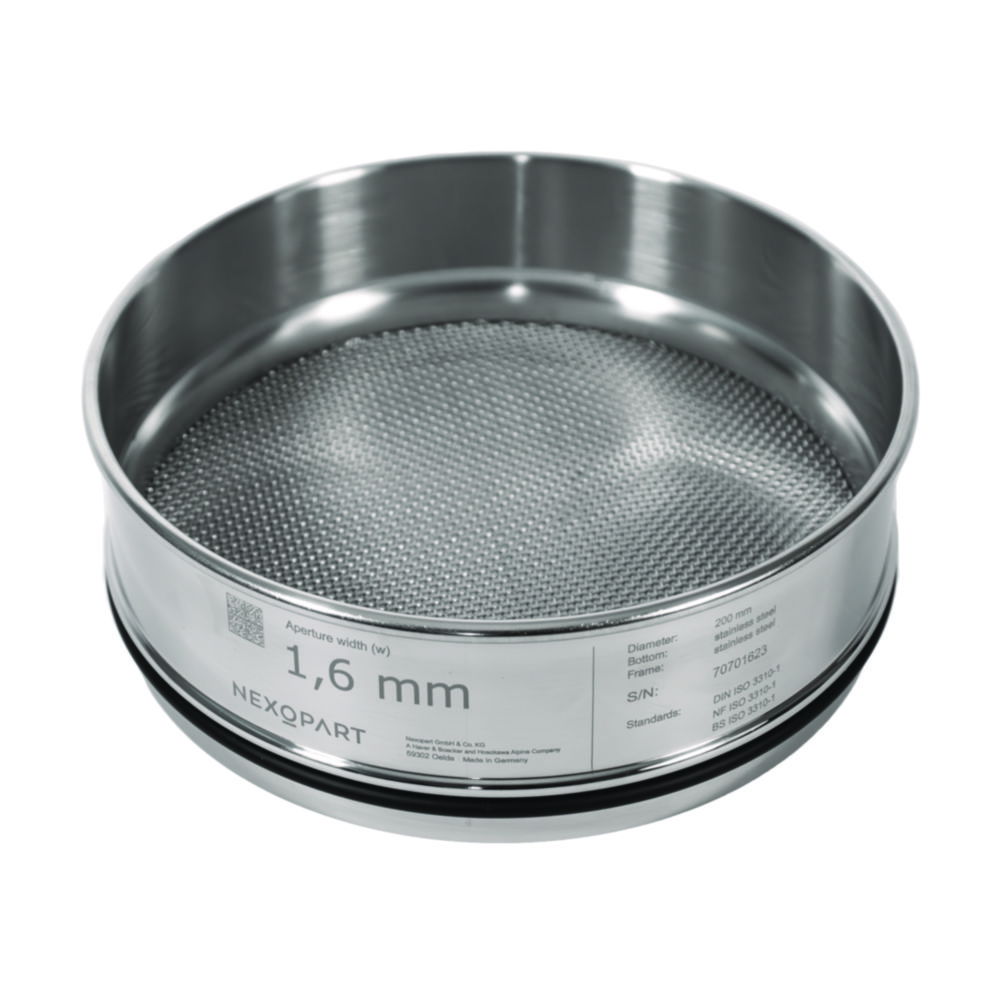

Sturdy stainless steel sieve frameSmooth frame surfacePrecise mesh sizesAccurate edgesWith serial number and data matrix codeIncl. Certificate of Compliance 2.1 acc. to DIN EN 10204Manufactured acc. to DIN ISO 3310-1Sturdy stainless steel sieve frameSmooth frame surfacePrecise mesh sizesAccurate edgesWith serial number and data matrix codeIncl. Certificate of Compliance 2.1 acc. to DIN EN 10204Manufactured acc. to DIN ISO 3310-1

Sturdy stainless steel sieve frameSmooth frame surfacePrecise mesh sizesAccurate edgesWith serial number and data matrix codeIncl. Certificate of Compliance 2.1 acc. to DIN EN 10204Manufactured acc. to DIN ISO 3310-1Sturdy stainless steel sieve frameSmooth frame surfacePrecise mesh sizesAccurate edgesWith serial number and data matrix codeIncl. Certificate of Compliance 2.1 acc. to DIN EN 10204Manufactured acc. to DIN ISO 3310-1

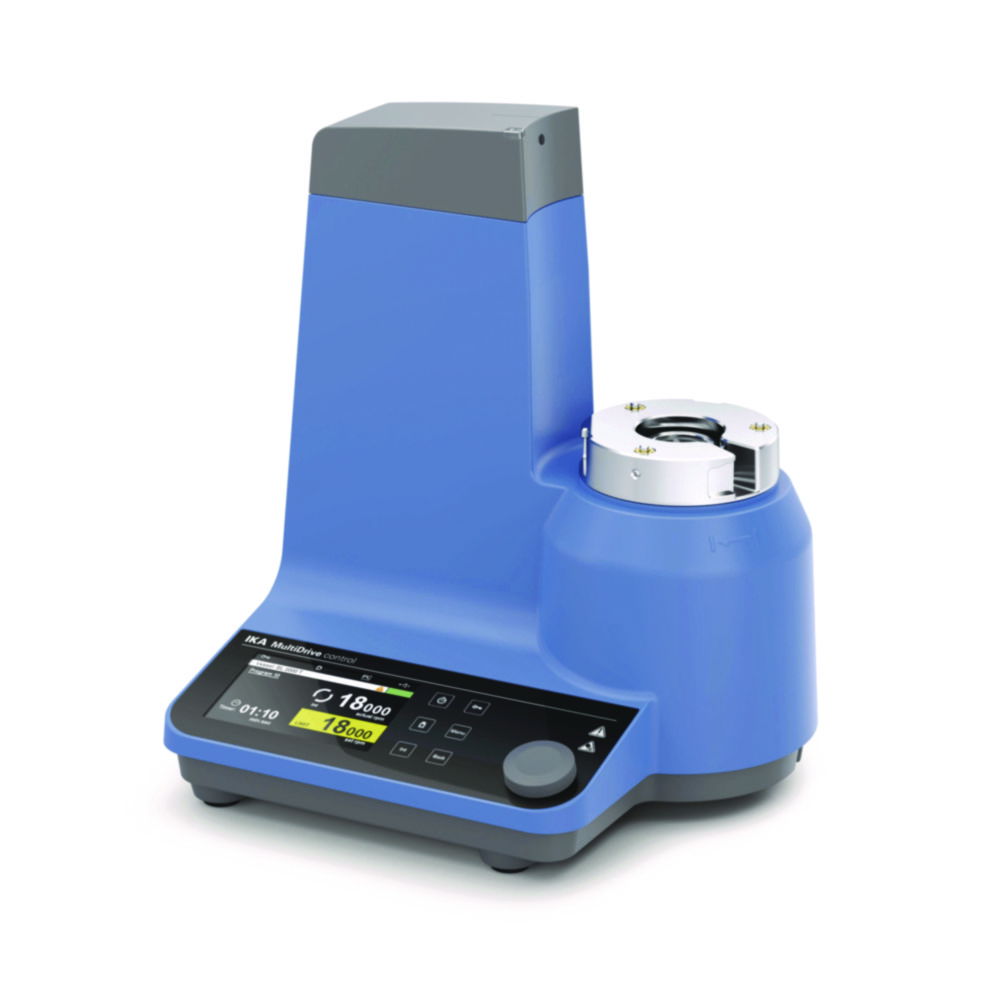

Universal mill for the pre- and fine comminution of hard, soft or fibrous samples.Adjustable interval operationIntegrated cooling in the grinding bowlGround product and coolant remain disconnectedUSB interfaceTemperature measurement and vessel recognition using RFIDTemperature limit can be set for temperature-sensitive materials, or for specific planned reactionsIntegrated weighing function for weighing without transferring the materialDispersion vessel and a disposable tube are available as accessoriesPlease order vessels separately.

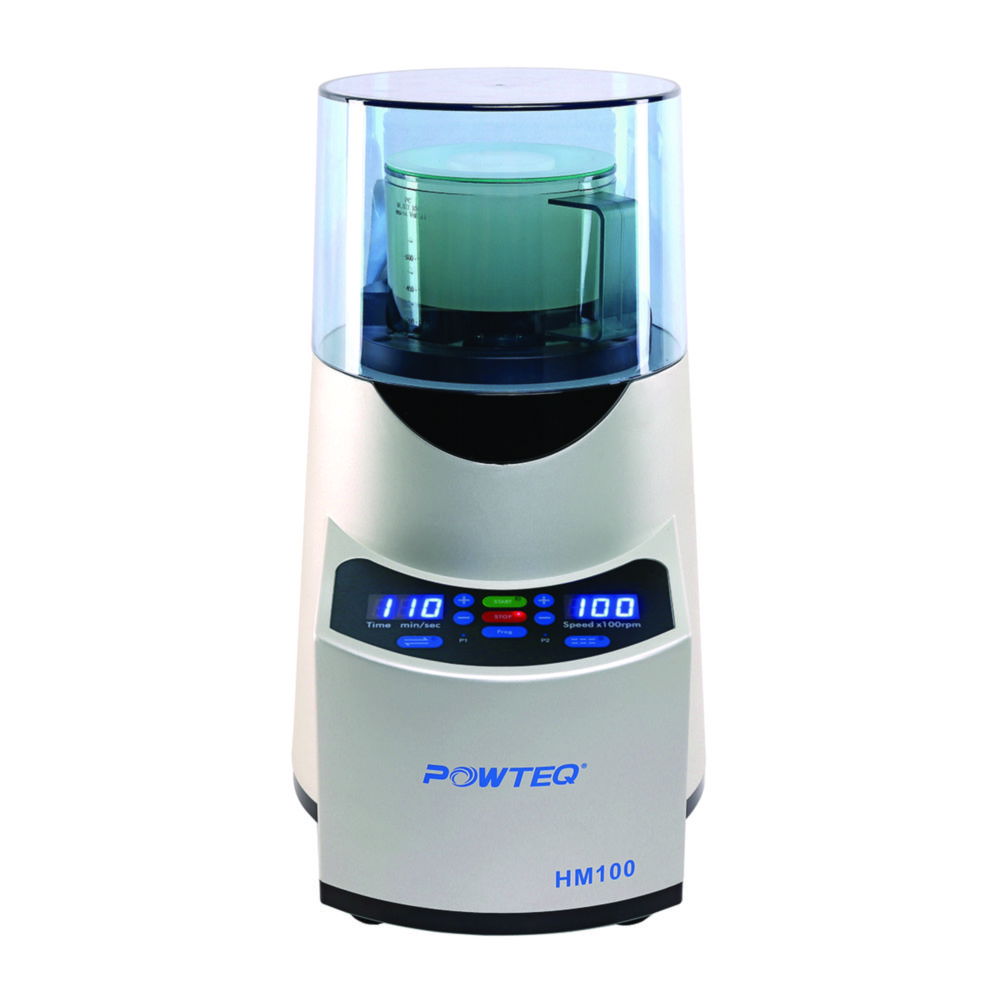

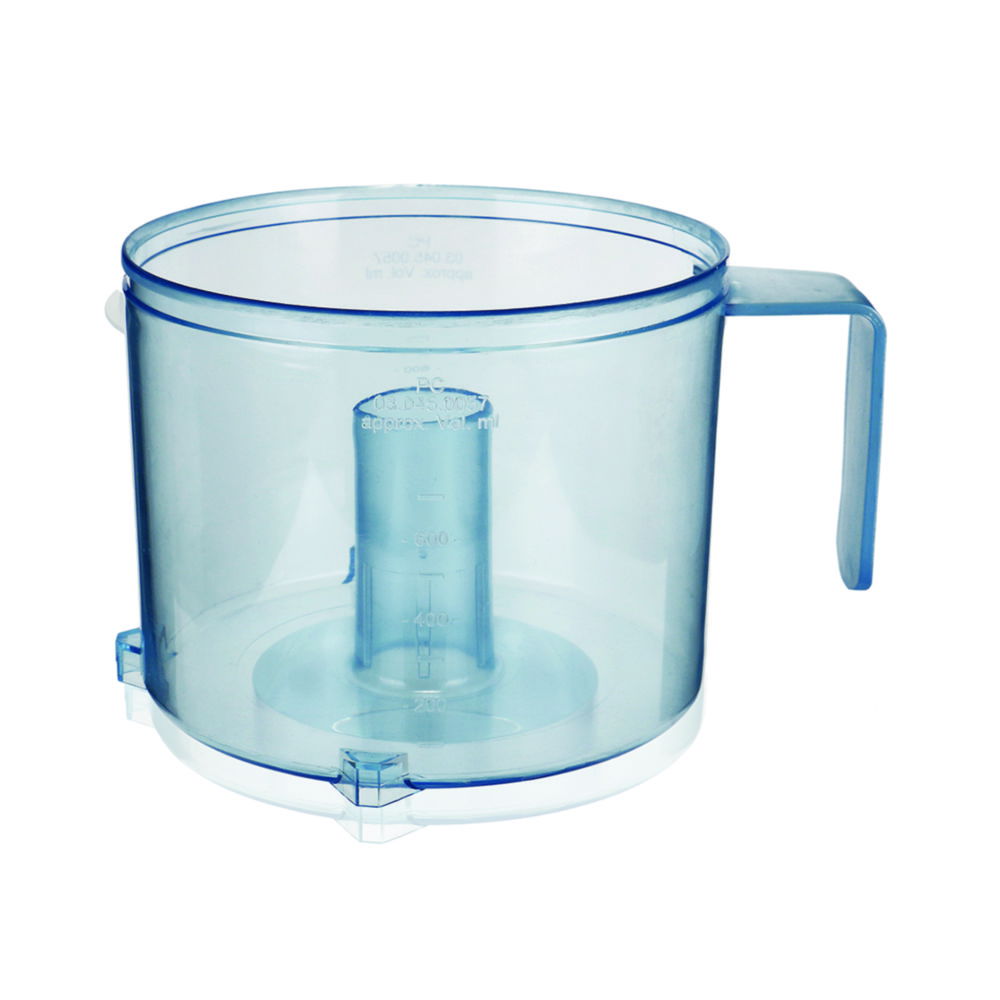

The HM100 knife mill is used for grinding soft, medium-hard, brittle and fibrous materials. Especially suitable for samples with a high water, oil or fat content. The 2 knives are driven by a 900 W motor to achieve a reliable grinding result. Suitable for applications in agriculture, biology, medicine and food technology.For soft, elastic, fibrous, aqueous, oily or fatty samplesElectronically controlled speedSamples are grinded in only 10 to 30 secondsUp to 700 ml sample volumeAutoclavable grinding vesselsGrinding vessels available in various materialsCutting knives with 2 stainless steel and titanium blades availableEasy operationQuick startCoarse and fine grinding in one stepInterval, reverse and manual mode availableScope of supply: Knife mill, 1 l grinding vessel made of plastic (autoclavable), lid, stainless steel knife

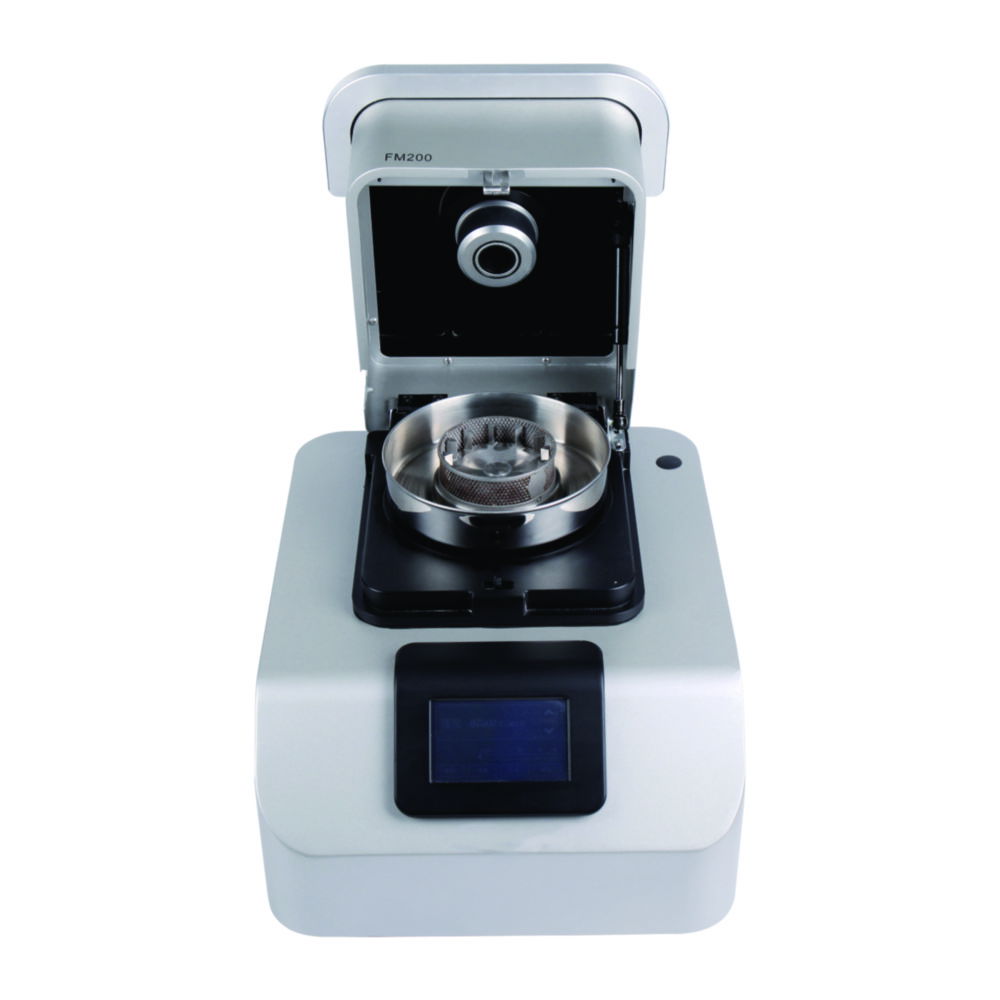

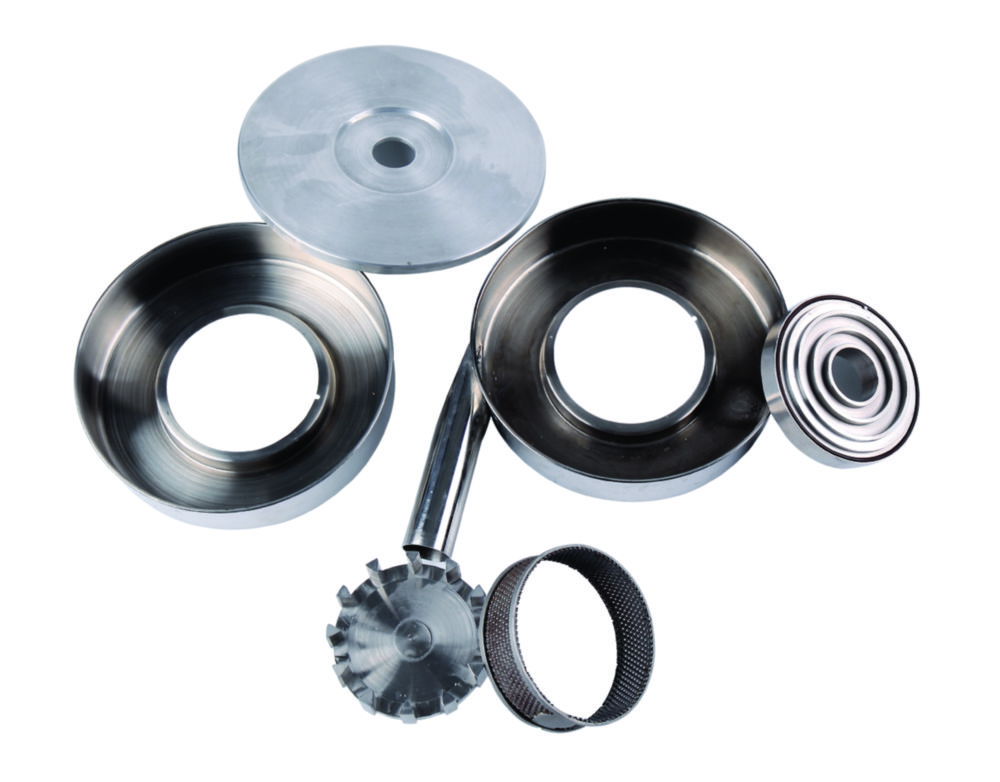

For fine grinding, homogenising and mixing of soft, brittle, fibrous and hard samples in the laboratory and pilot plant. The high grinding efficiency is ensured by the high speed rotor and the ring sieve used. A final fineness of less than 100 µm can be achieved. The mill guarantees a high sample throughput and low-noise operation.Exchangeable ring sievesSimple operation via touch control panelEfficient sample coolingGround samples are collected in a panFeed hopper with anti-blocking deviceMotor with overload protectionEasy cleaningNo tools required to dismantle the parts in contact with the sampleElectronic and mechanical safety interlocksComprehensive range of ring sieves and rotors availableRing sieves and rotors are not included in the scope of supply and must be ordered separately.

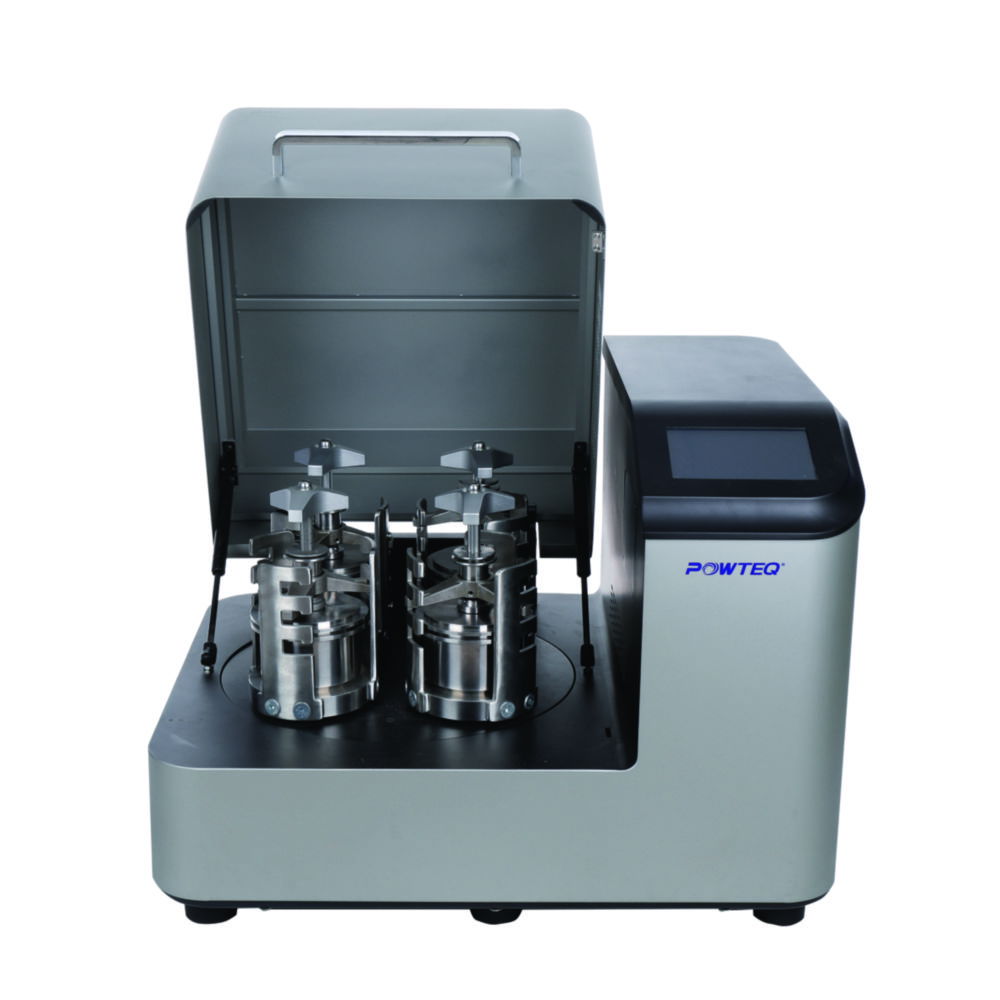

For rapid grinding of soft, hard, brittle and fibrous materials down to a final fineness of less than 1 µm in laboratories and pilot plants. Also suitable for colloid grinding. Suitable for use in geology, mineralogy, metallurgy, ceramics, materials research, mechanical alloying, pharmacy, chemistry, biology and analysis preparation.Grinding platform with 4 stations for up to 8 grinding bowlsSuitable for continuous operationGrinding time digitally adjustable from 0 to 999 minutesVariable speed of the sun wheel from 30 to 400 min-1For dry and wet grindingProgrammable grinding parametersAutomatic reversal of direction to avoid agglomerationsVentilated grinding chamber for cooling the grinding bowlControl via 7" LCD display with one-button operationSafety interlockGrinding bowls made of different materials and with different capacities available as accessoriesGrinding bowls and balls are not included in the scope of supply and must be ordered separately.

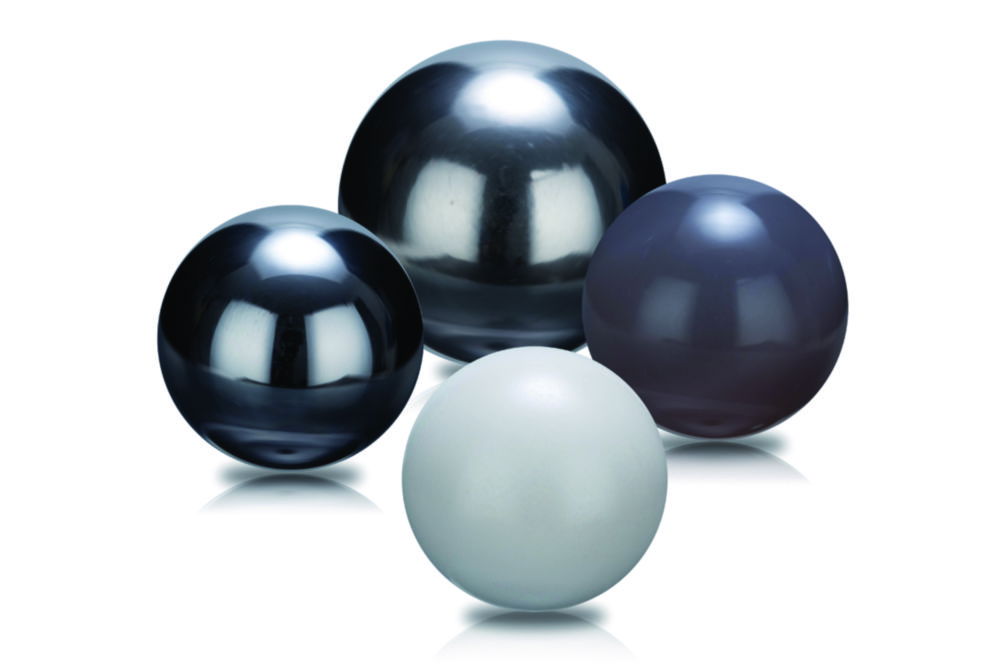

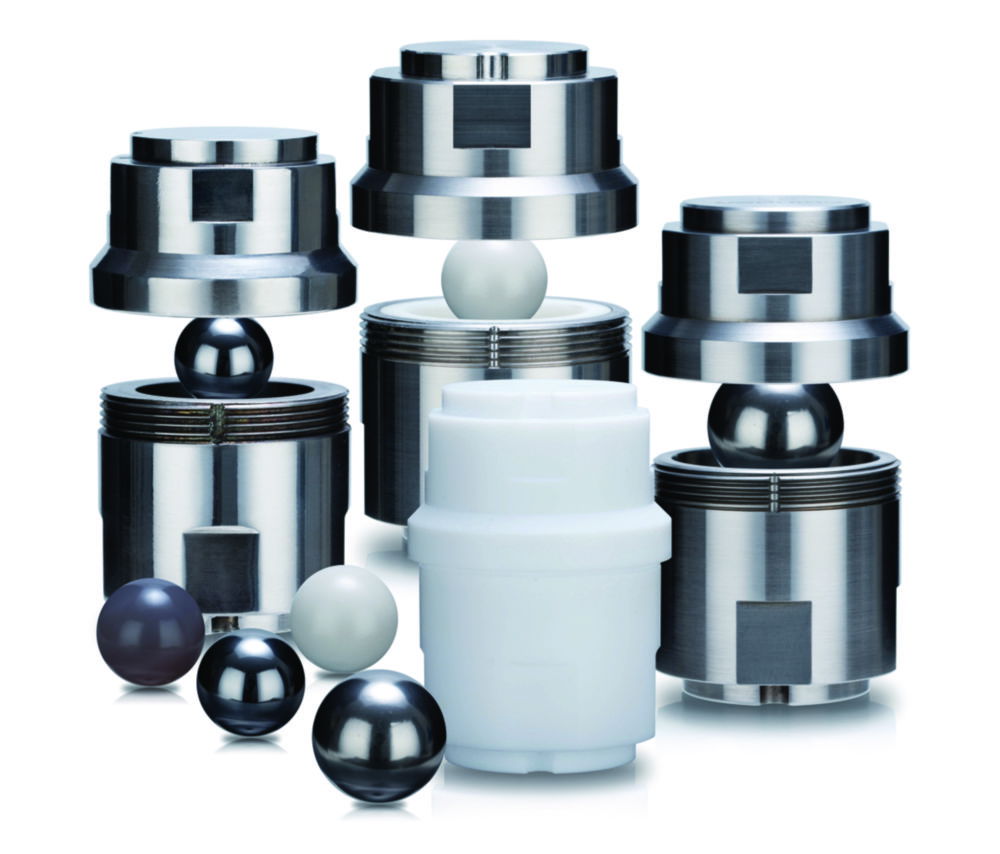

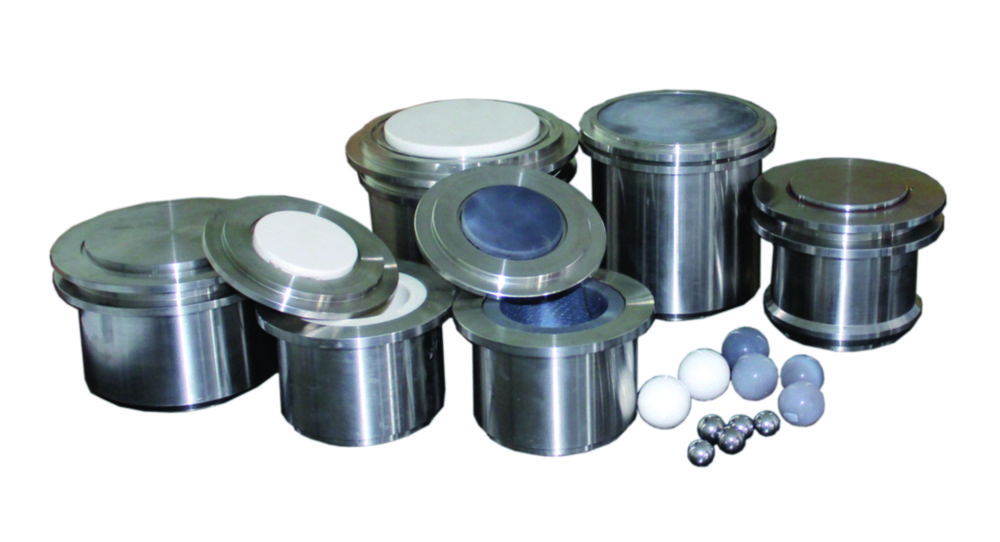

Grinding jars made of stainless steel, agate, sintered aluminium oxide, zirconium oxide and tungsten carbide have a stainless steel casing for safety reasons.

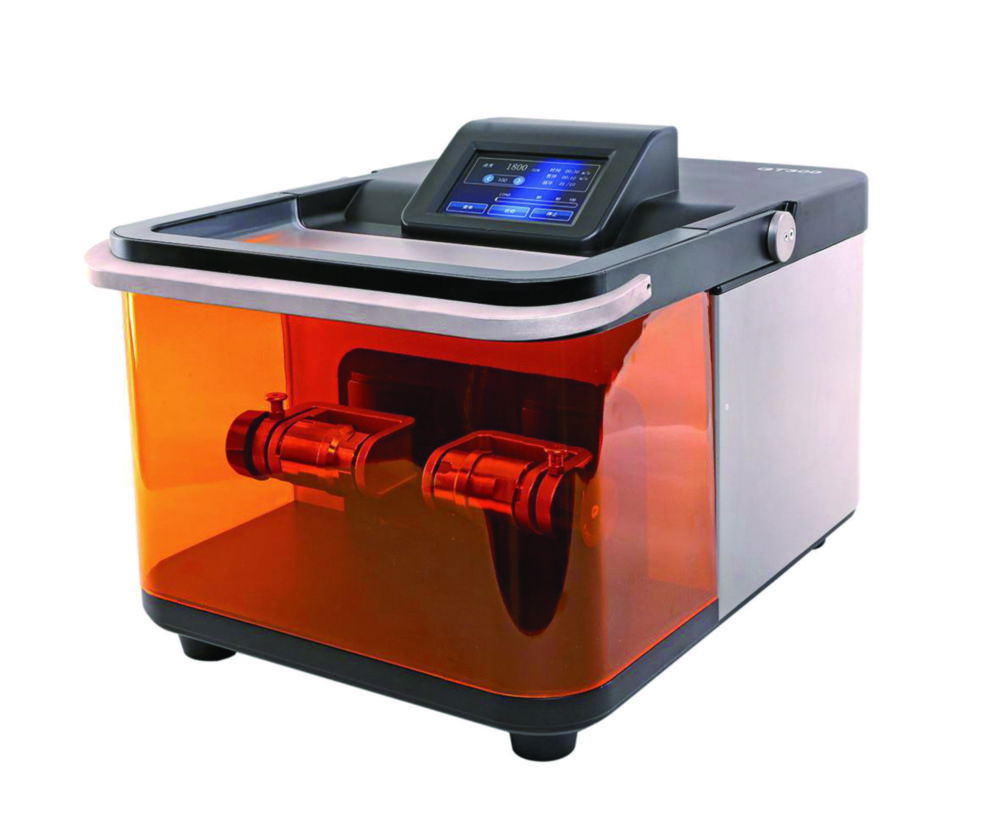

For grinding and mixing of hard, medium-hard, soft, elastic and fibrous samples. Also suitable for cell disruption and DNA/RNA extraction. The mill is designed for very short processing times and high sample throughput. The grinding containers carry out horizontal, circular-arc-shaped oscillations and the grinding balls ensure effective grinding and mixing of the sample.Only 30 seconds average processing time2 grinding stations for bowls with a volume of 5 to 50 mlMultifunctional clamping device, which also holds adapters for reaction vesselsGrinding time digitally adjustable from 1 second to 100 minutesVariable speed from 180 to 1800 min-1Control via LCD displayProgrammable grinding parameters, up to 10 programs can be storedTransparent coverSafety interlockGrinding chamber, clamping system and swivel arm made of stainless steelMaintenance-free direct driveGrinding bowls made of different materials with volumes up to 50 ml available as accessoriesGrinding bowls and balls are not included in the scope of supply and must be ordered separately.

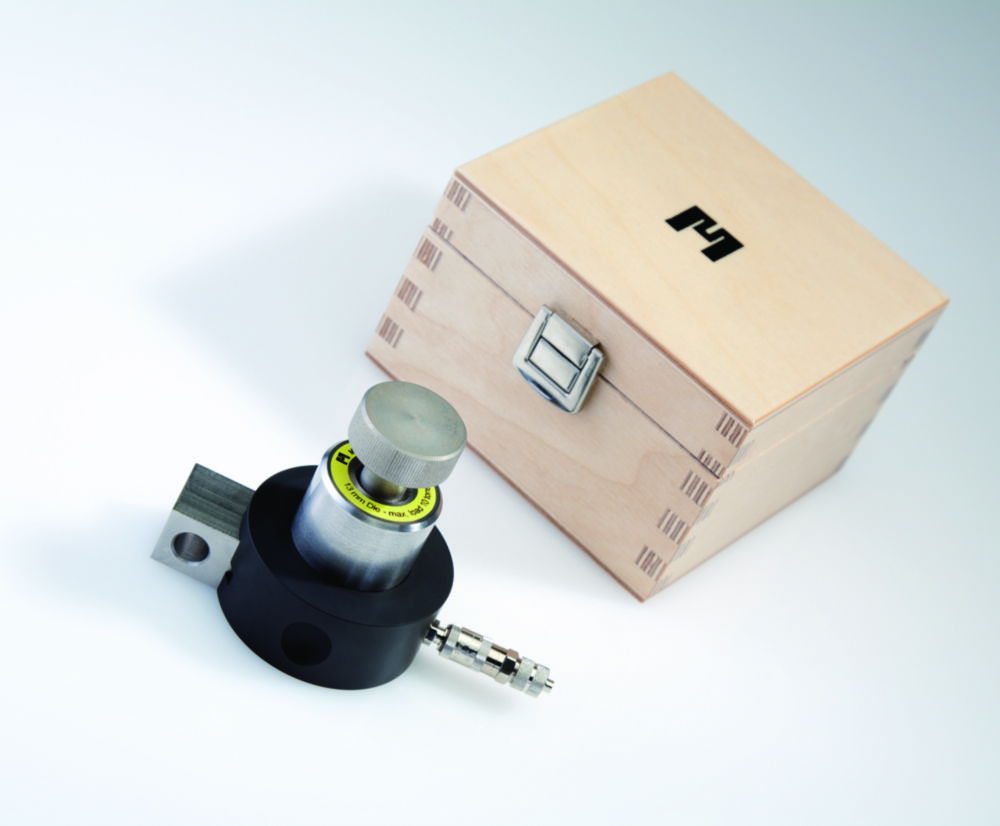

The 13 mm press die is supplied in a wooden box (for 32 and 40 mm: optional)The 32 and 40 mm press die can be combined to save costs, since the same parts can be usedAll press dies from 10 mm have a vacuum connection with a special self-locking tubing adapter, which makes it easier to connect and disconnectFurther diameters available on request.

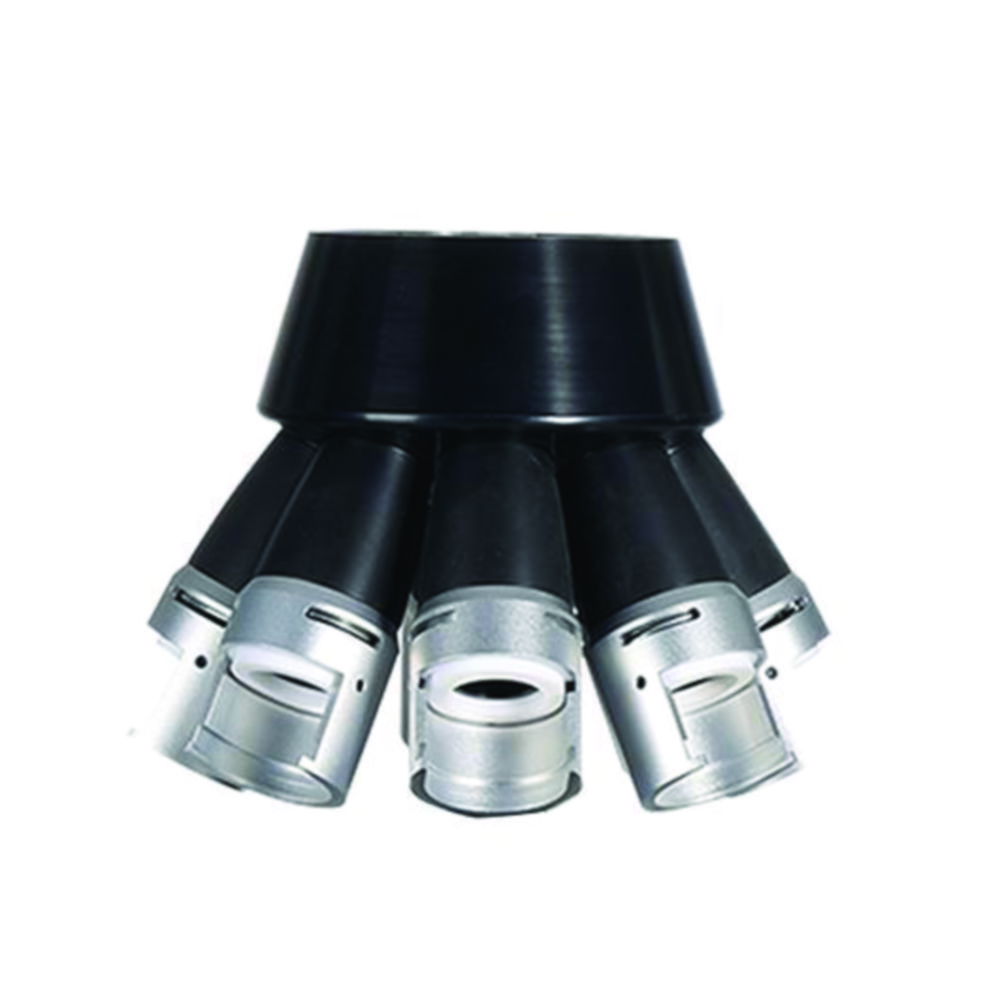

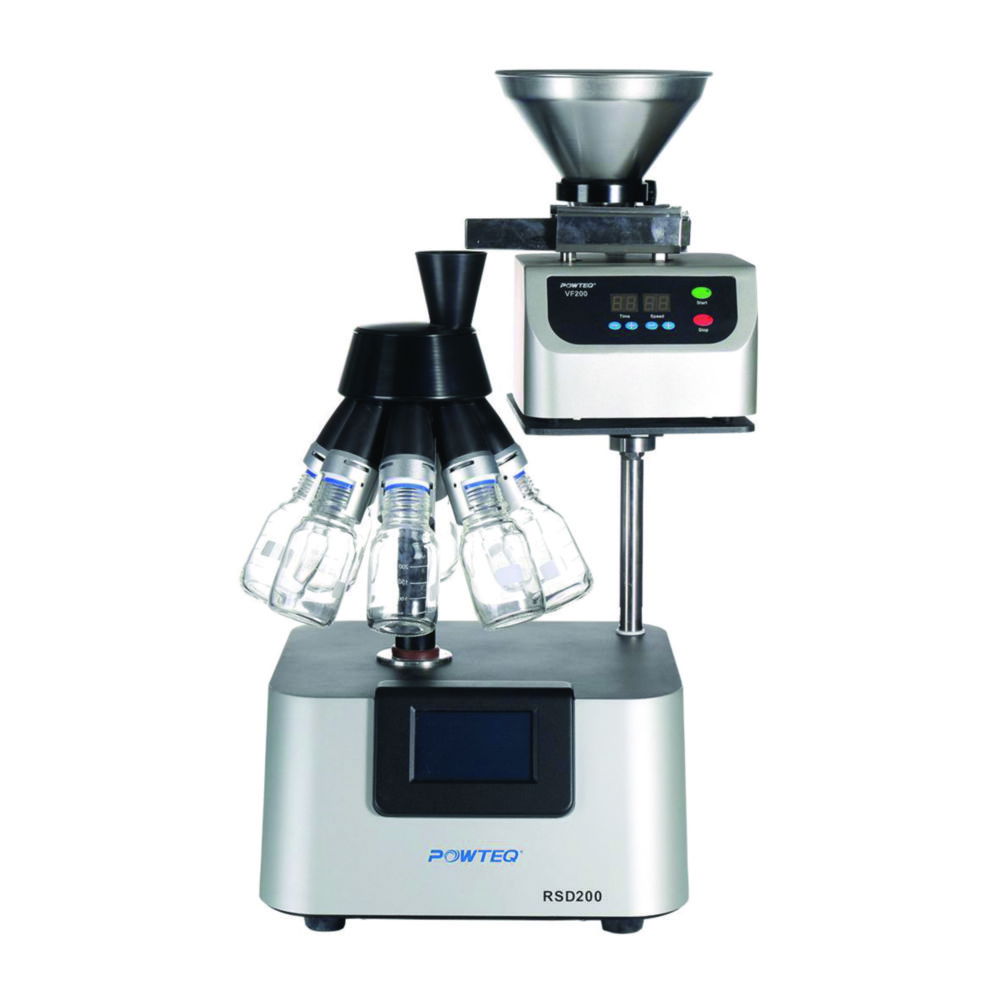

With the optional dividing heads, the filled sample material can be divided into 6, 8 or 10 equal subsamples. The composition of each subsample corresponds exactly to the total sample. In addition, the bulk material is added and divided automatically and without loss of material.High division accuracyModular designDigital time settingSpeed monitoring and constant speed controlMaintenance-freeEasy collection and cleaningScope of supply: Rotary sample divider RSD200, vibration feeder VF200, 10 sample bottles of 250 mlPlease order rotary dividing heads separately.Number of divisions:6/8/10 (depending on dividing head)Sample bottle capacities:10/25/50/100/250/500 mlTimer:1 min ... 99 h 59 minDimensions (W x D x H):460 x 456 x 850 mmWeight:30 kgPower supply:220 V, 50/60 HzSpeed range:80 ... 120 rpm
