Rotary evaporators

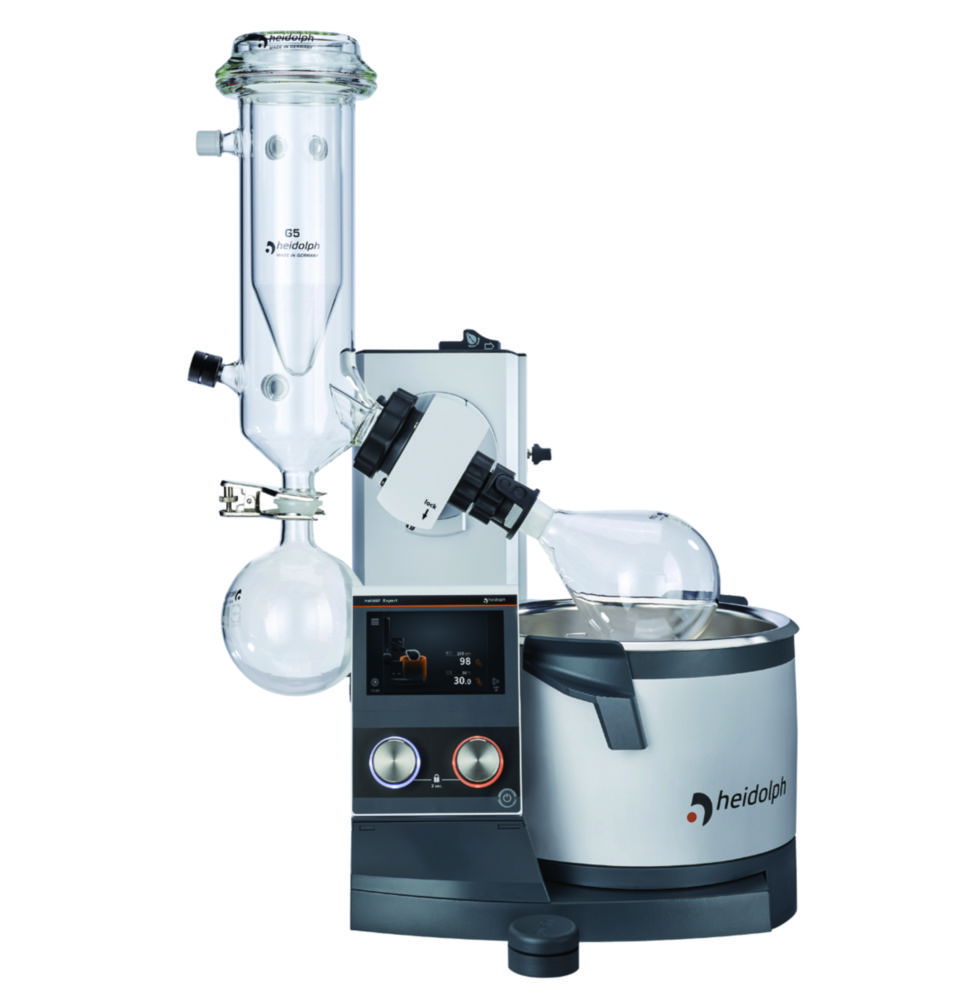

This devices are central control units for regulation of all process parameter: vacuum, cooling temperature, rotation and heating bath temperature.Available as hand or motor lift5'' touch display for controlling the entire system including the vacuum and the cooling temperatureFor precise monitoring, the pictogram on the-display also symbolizes active functionsSeparate knobs for quick access: the right one for direct vacuum control, the left one for the rotationSetting of values either via the touch display or the separate quick access knobsDirect access to two favorites on the start screenExpandable solvent library: user defined favorites can be transfered to other devices using a USB stickUser defined evaporation processes (ramps) can be defined and savedAutomatic evaporation with the Dynamic AUTOaccurate Program (DAA)USB and Micro SD interfacesScope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask, Control-Box. Supplied condensor as indicated.Scope of supply: Hei-VAP Expert Control with motor lift and vertical glassware set G3, vacuum pump Rotavac Vario Tec, condenser for Rotavac Vario, tubing set, Woulff bottle, AUTOaccurate sensor

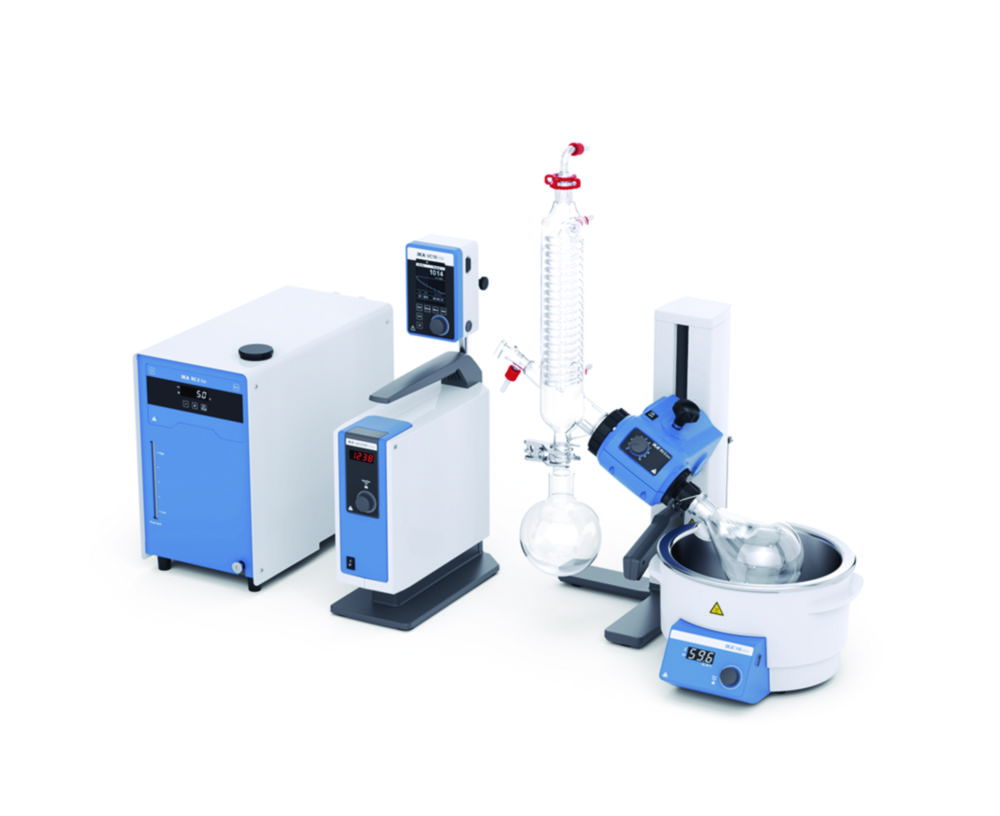

Complete solution for a rotary evaporator setup with the ideal entry-level model including heating bath HB eco and vertical glassware.With extremely space-saving vacuum pump VACSTAR digital, which achieves a minimum vacuum of 2 mbar.The vacuum controller VC 10 lite is used for control. In addition to controlling the recirculating cooler RC 2 lite, it enables manual setpoint input of the vacuum as well as programme-controlled operation.The powerful compact RC 2 lite recirculating cooler with 400 W cooling capacity and a strong pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10 °C.Scope of supply: Rotary evaporator, vacuum pump VACSTAR digital, vacuum controller VC 10 lite, recirculating cooler RC 2 lite, stand pole VC 10.500, hose set RV 10.5005, data cable PC 1.3

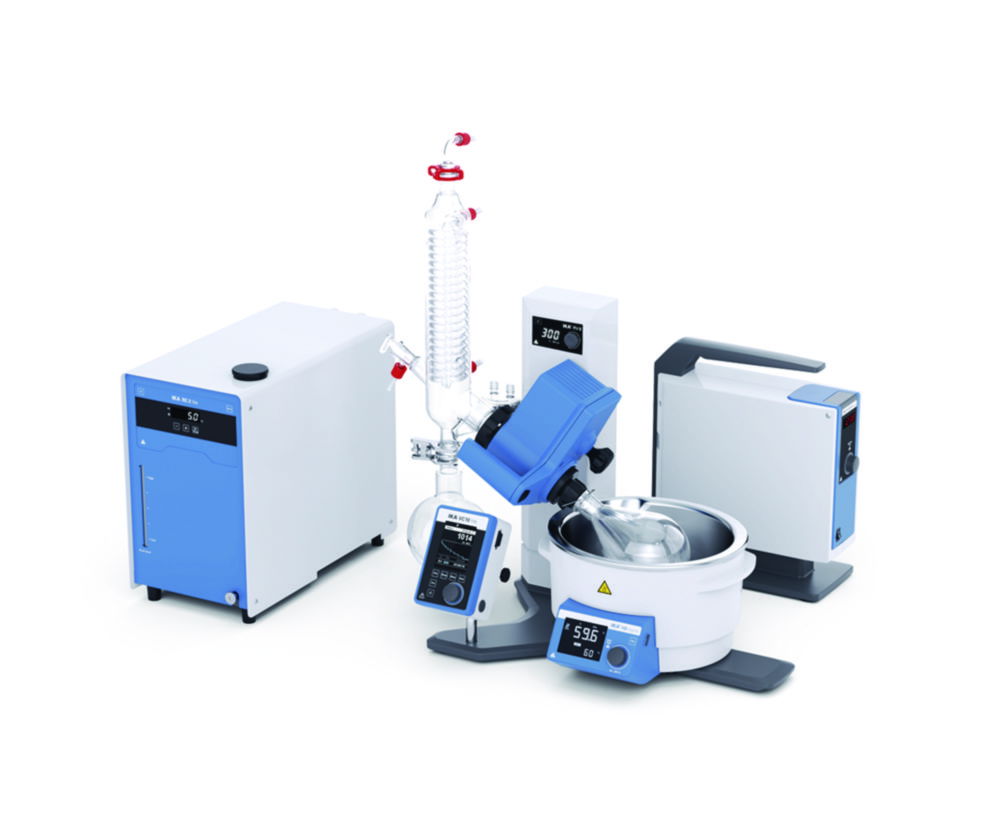

Complete solution for a rotary evaporator setup with the manual base unit including heating bath HB digital and vertical glassware. Digital displays for rotation speed and heating bath temperature allow optimal control of all distillation processes.With extremely space-saving vacuum pump VACSTAR digital, which achieves a minimum vacuum of 2 mbar.The vacuum controller VC 10 lite is used for control. In addition to controlling the recirculating cooler RC 2 lite, it enables manual setpoint input of the vacuum as well as programme-controlled operation.The powerful compact RC 2 lite recirculating cooler with 400 W cooling capacity and a strong pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10 °C.Scope of supply: Rotary evaporator, vacuum pump VACSTAR digital, vacuum controller VC 10 lite, recirculating cooler RC 2 lite, stand pole RV 8.3, hose set RV 10.5005, data cable PC 1.3

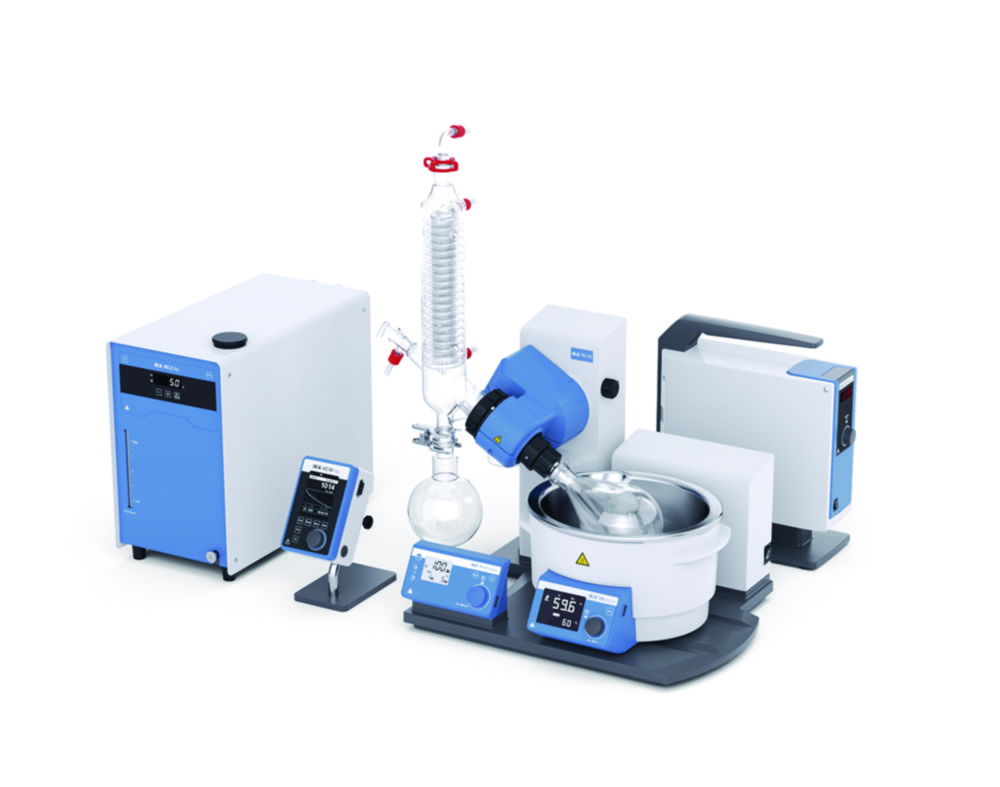

Complete solution for a rotary evaporator setup with the robust and reliable companion for all distillation tasks including heating bath HB digital and vertical glassware. This rotary evaporator is characterised by innovative features and remote control of the various components as well as increased safety through motor-driven lift, safety temperature circuit and dry-running protection.With extremely space-saving vacuum pump VACSTAR digital, which achieves a minimum vacuum of 2 mbar.The vacuum controller VC 10 lite is used for control. In addition to controlling the recirculating cooler RC 2 lite, it enables manual setpoint input of the vacuum as well as programme-controlled operation.The powerful compact RC 2 lite recirculating cooler with 400 W cooling capacity and a strong pressure and suction pump (0.35 bar) is designed for simple cooling tasks down to -10 °C.Scope of supply: Rotary evaporator, vacuum pump VACSTAR digital, vacuum controller VC 10 lite, recirculating cooler RC 2 lite, table stand VC 10.400, hose set RV 10.5005, data cable PC 1.3

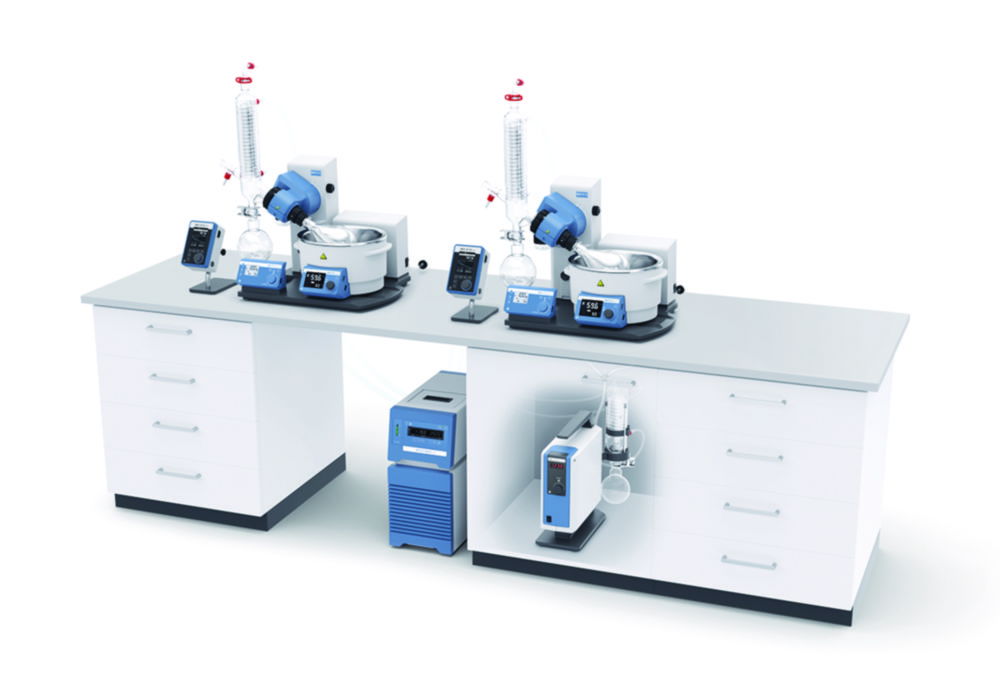

Complete solution for a rotary evaporator setup with two rotary evaporators including two HB digital heating baths and two vertical glassware sets are the robust and reliable companions for all distillation tasks. They are characterised by innovative features and remote control of the various components as well as increased safety due to motor-driven lift, safety temperature circuit and dry-running protection.With extremely space-saving vacuum pump VACSTAR digital plus vacuum safety emmision condenser VSE 1. A minimum vacuum of 2 mbar can be achieved. One vacuum source is sufficient to supply both rotary evaporators.Controlling is done via the two included vacuum controllers VC 10 pro.The powerful and energy-efficient RC 2 GREEN basic recirculating chiller is suitable for cooling tasks down to -30 °C. The demand- and speed-controlled compressor achieves a cooling capacity of 800 W.Scope of supply: 2 x Rotary evaporator, vacuum pump VACSTAR digital + vacuum safety emmision condenser VSE 1, 2 x vacuum controller VC 10 pro, recirculating cooler RC 2 GREEN basic, 2 x table stand VC 10.400, 2 x hose set RV 10.5005, 2 x non-return valves VC 10.300, data cable PC 1.3, 2 x Y-distributor

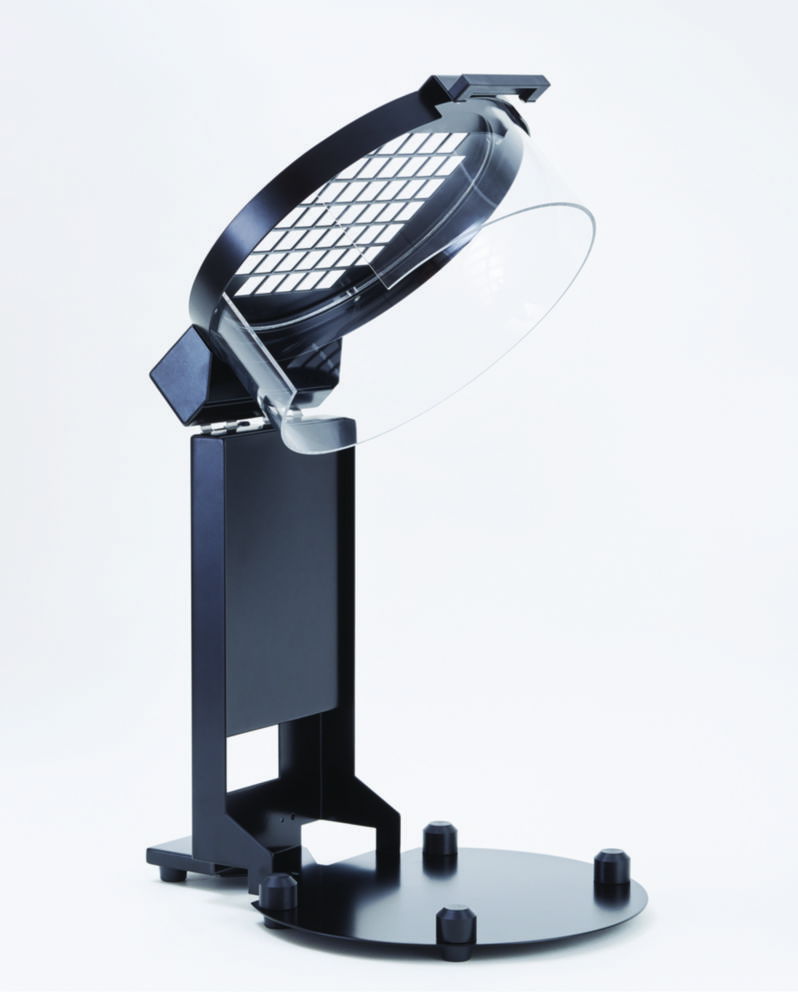

Protective cover for the heating bath of the rotary evaporator RE 212 FW-G.

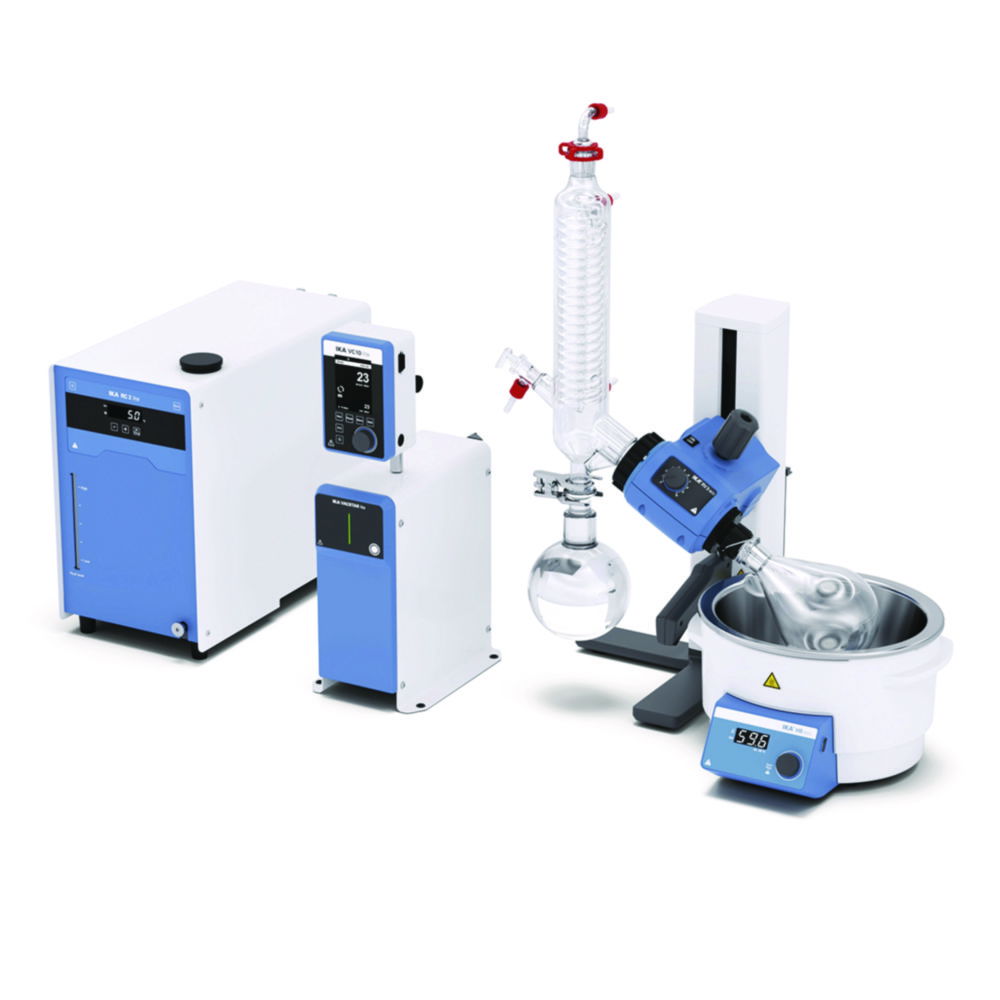

The Starter Solution is the complete package for the rotary evaporator setup. The RV 3 rotary evaporator is the ideal entry-level model. It finds a multitude of uses in the chemical, pharmaceutical and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories and in plant construction.Scope of supply: rotary evaporator RV 3 Flex, VACSTAR lite vacuum pump, VC 10 lite vacuum controller, HB eco heating bath, vertical glass condenser set with 1 l receiver and evaporator flask, RC 2 lite recirculating chiller, stand pole, set of hoses, cable

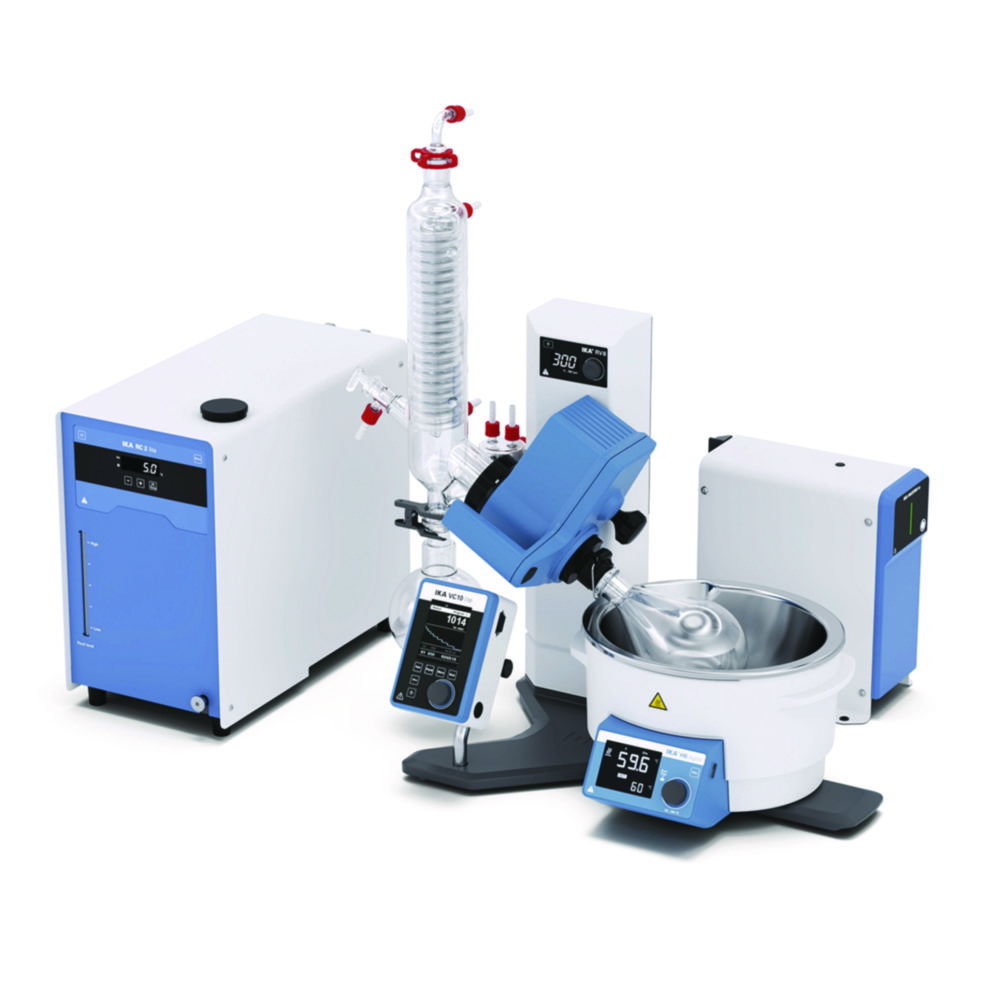

The Starter Solution is the complete package for the rotary evaporator setup. The RV 8 is a manual basic model. It finds a multitude of uses in the chemical, pharmaceutical, and biotechnology industries, in research and development, in manufacturing and quality assurance, in laboratories, and in plant construction. Digital displays for speed and heating bath temperature enable optimum control of all distillation processes.Scope of supply: rotary evaporator RV 8 Flex, VACSTAR lite vacuum pump, VC 10 lite vacuum controller, HB digital heating bath, vertical glass condenser set with 1 l receiver and evaporator flask, RC 2 lite recirculating chiller, stand pole, set of hoses, cable

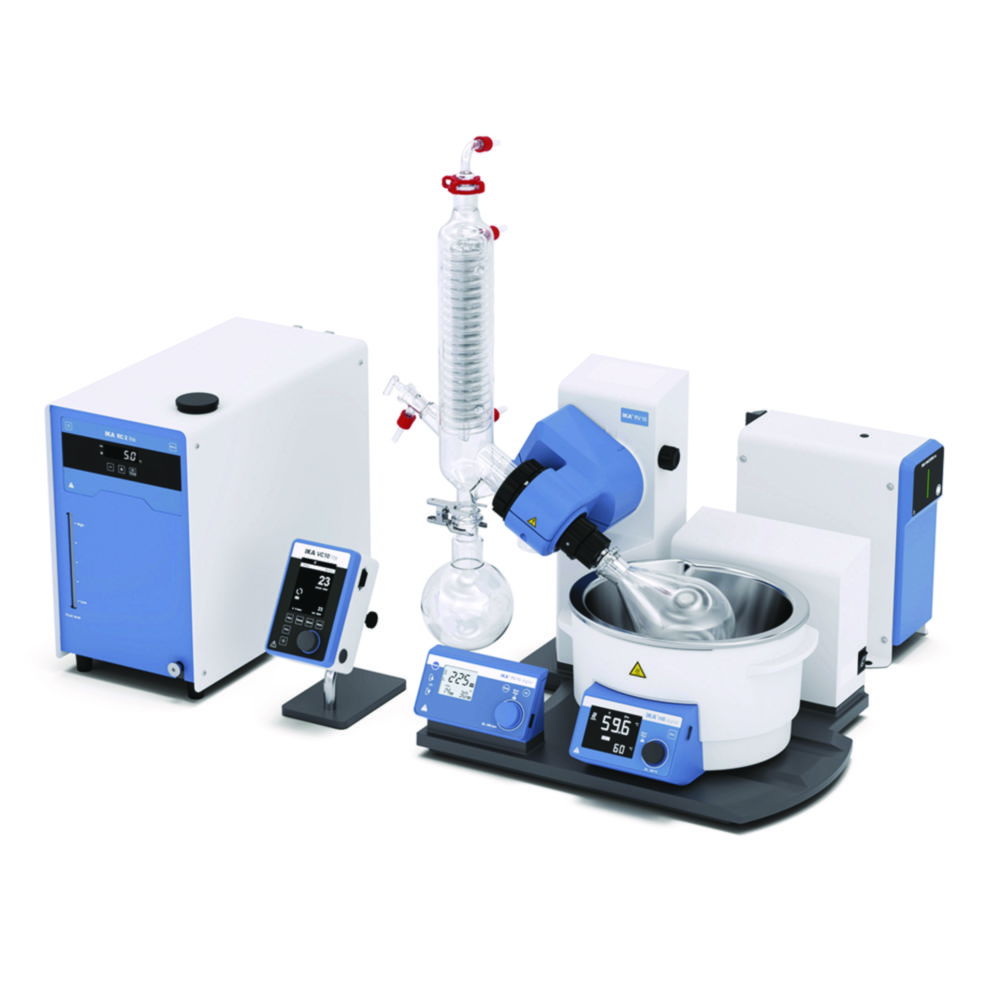

The Starter Solution is the complete package for the rotary evaporator setup. The RV 10 digital offers features such as smooth start, left-right interval and timer function. The motorized lift has an automated lift-out function in case of power outage to prevent superheating of the solvent. The RS 232 interface allows for remote control via the software labworldsoft®. The heating bath is controlled from the main unit via the IR interface.Scope of supply: rotary evaporator RV 10 digital Flex, VACSTAR lite vacuum pump, VC 10 lite vacuum controller, HB digital heating bath, vertical glass condenser set with 1 l receiver and evaporator flask, RC 2 lite recirculating chiller, stand pole, set of hoses, cable

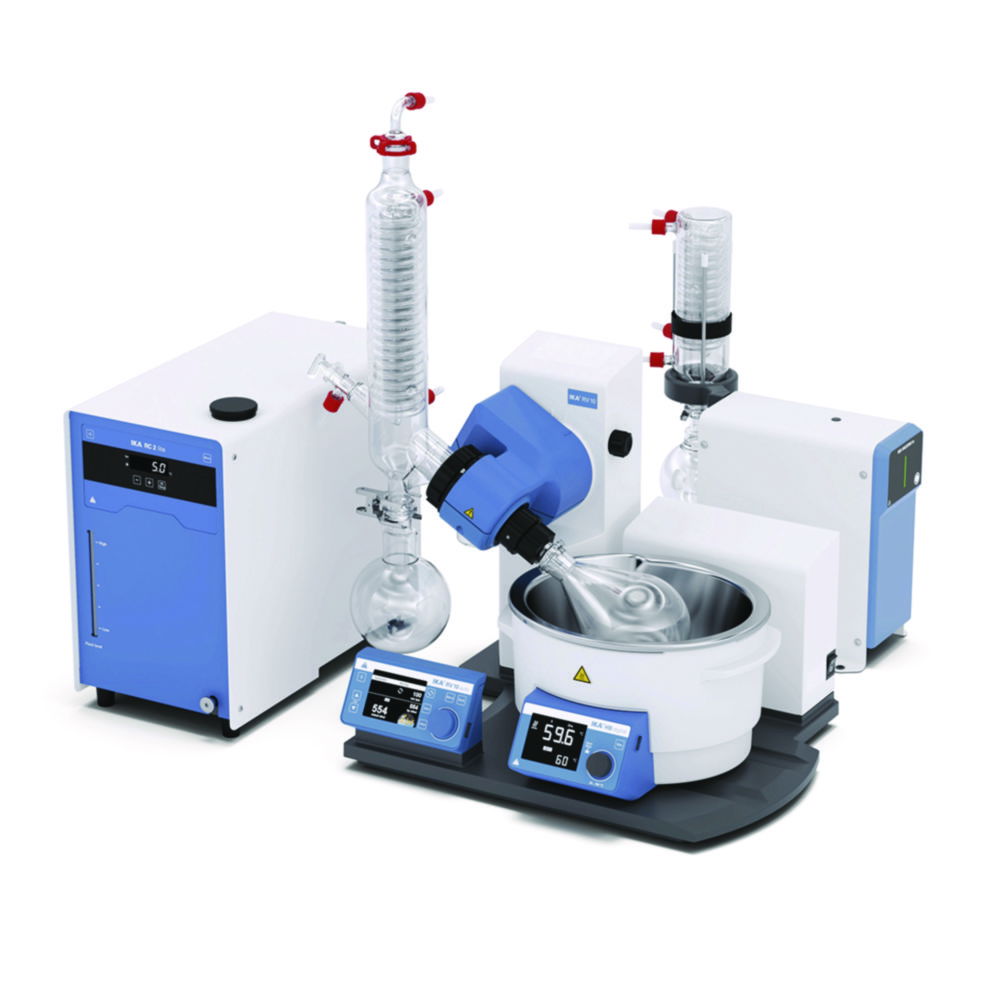

The Starter Solution is the complete package for the rotary evaporator setup. The RV 10 auto offers features such as smooth start, left-right interval and timer function. It impresses with its intuitive operation via a TFT colour graphic display, an integrated vacuum controller, cooling water monitoring and safety standards. The motorised lift has an automated lift-out function in case of power outage to prevent superheating of the solvent. The USB or RS232 interface allows remote control using the IKA software labworldsoft® and the option of updating using the Firmware Update Tool.Scope of supply: rotary evaporator RV 10 auto, VACSTAR lite vacuum pump, HB digital heating bath, vertical glass condenser set with 1 l receiver and evaporator flask, RC 2 lite recirculating chiller, hoses, cable

Especially for rotary evaporators, with spherical joint socket S 35, autoclavable, material: DURAN®.

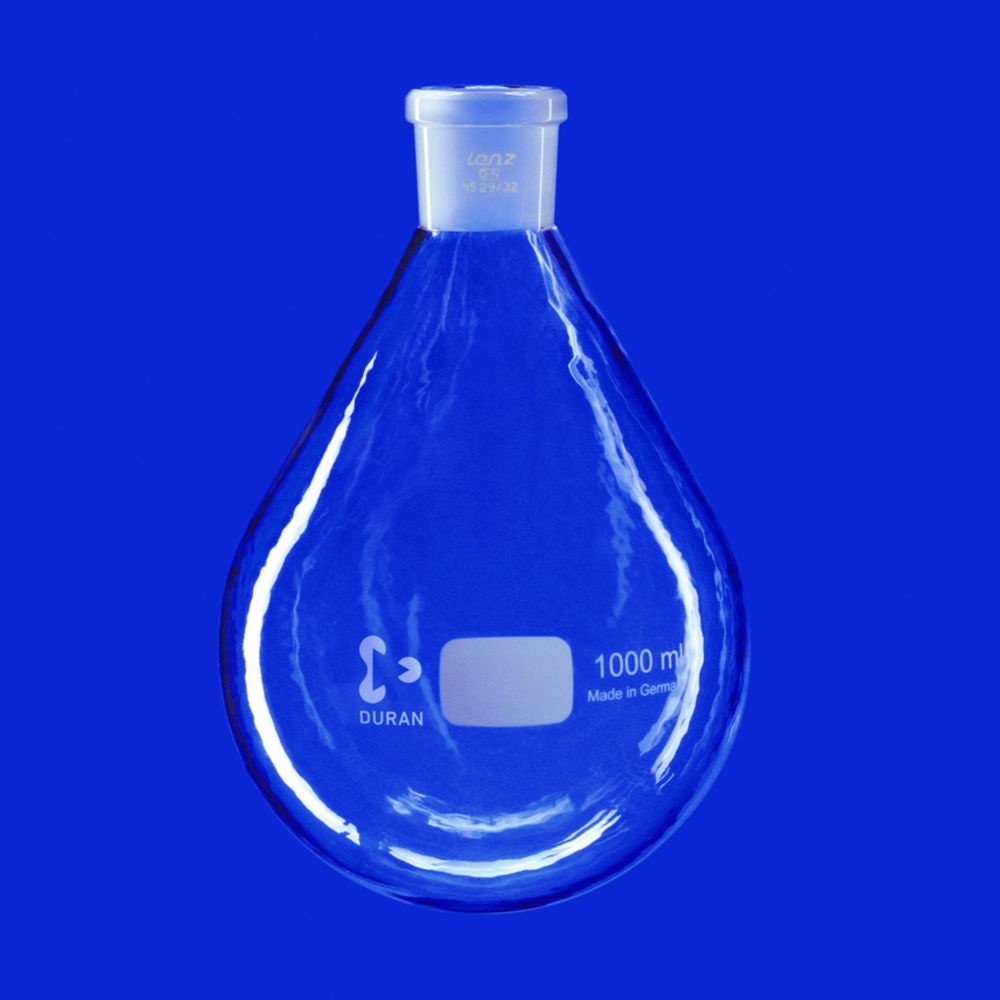

Especially for rotary evaporators, with center neck and conical joint, pear-shaped, material: DURAN®

Specially for rotary evaporators. For the drying of powder-like substances. With center neck and conical joint, with inscription label.

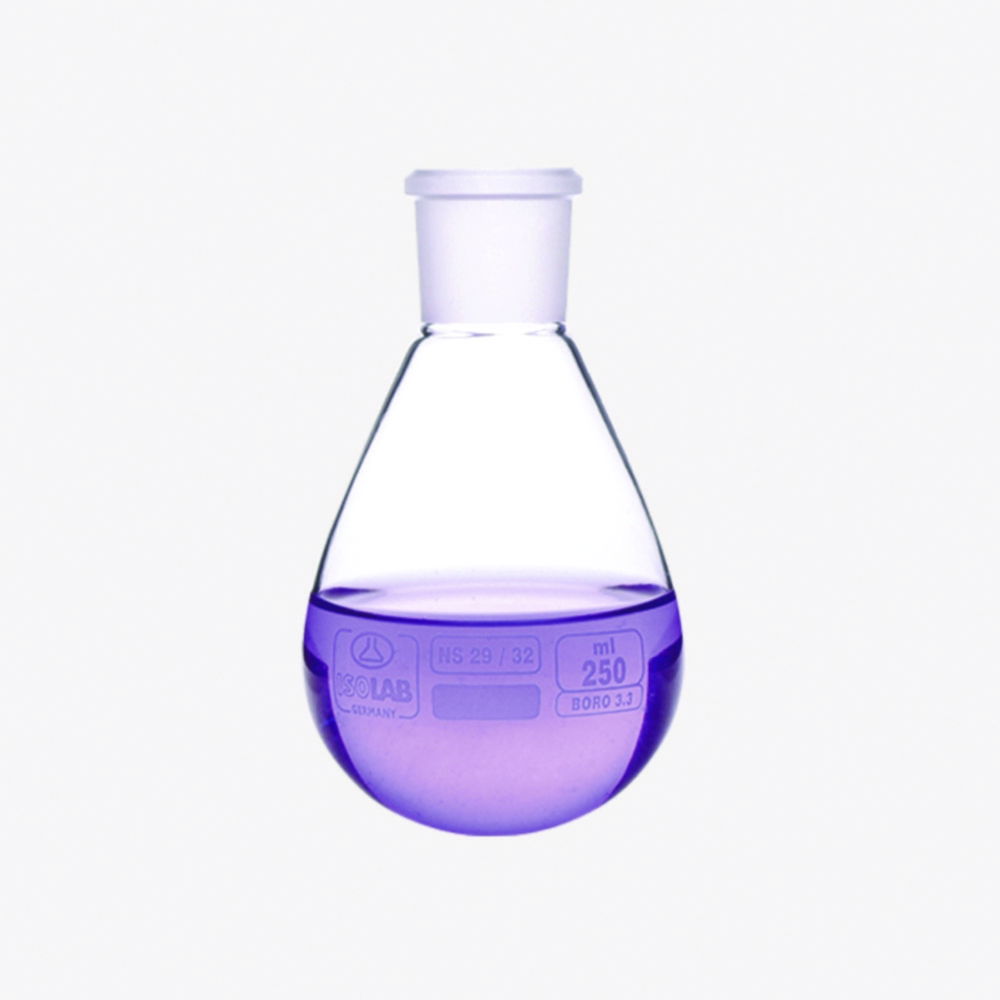

Pear shaped Evaporator flask with NS 29/32, suitable for all Rotary evaporators.

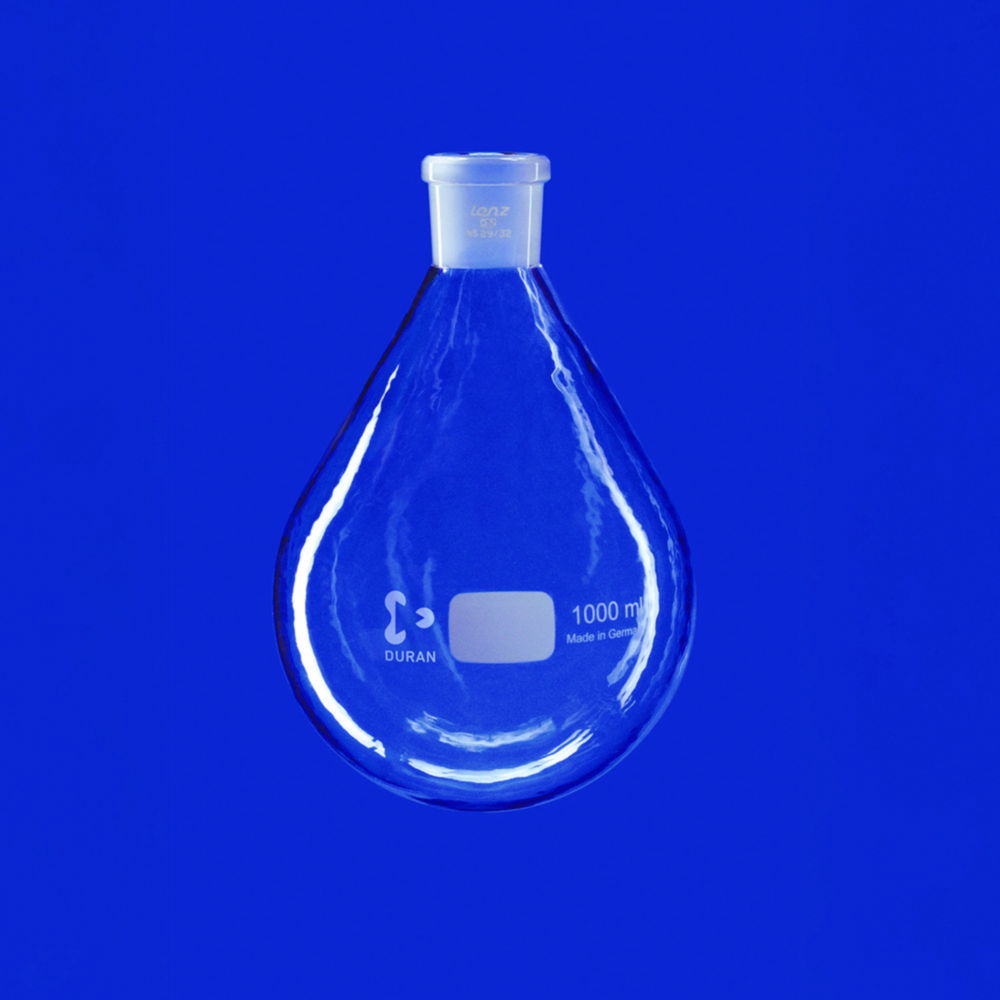

Especially for rotary evaporators, with center neck and conical joint, with highly transparent PUR coating, autoclavable, pear-shaped, material: DURAN®

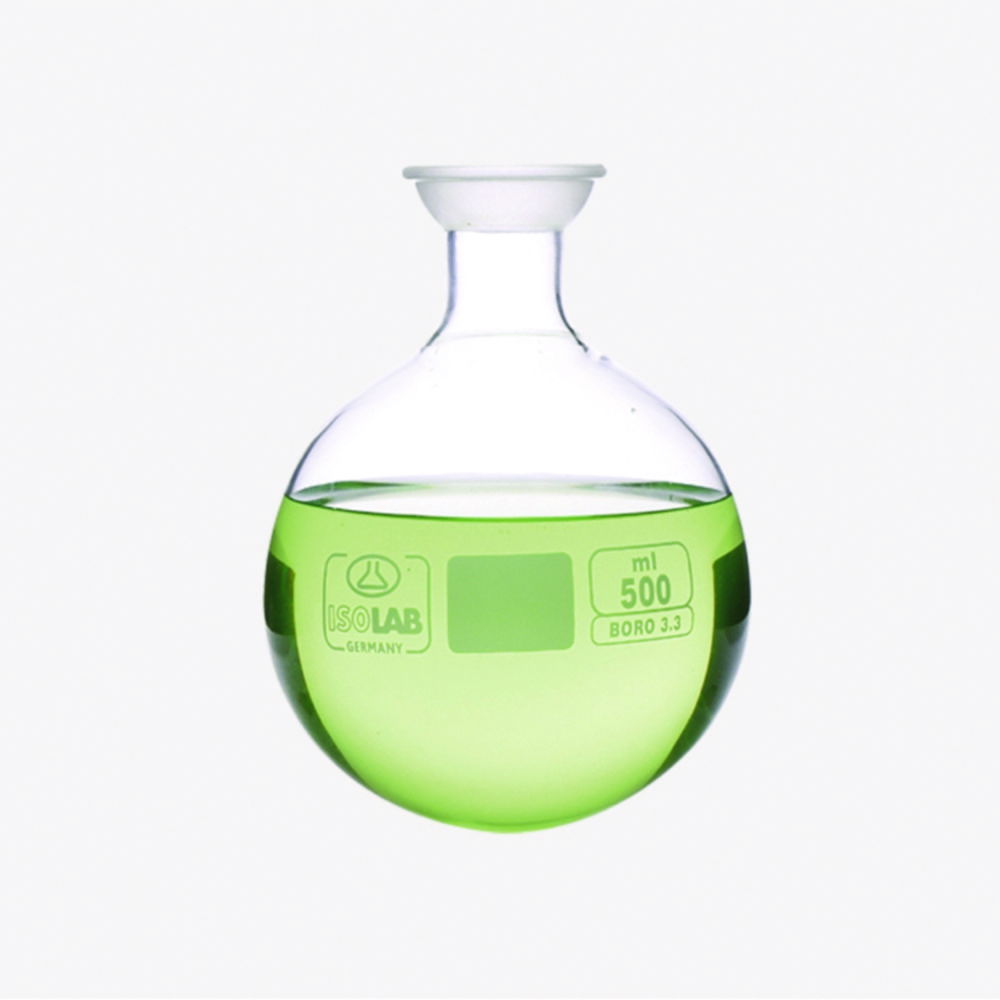

Receiving flasks with spherical ground glass joint KS35 suitable for all Rotary evaporators.

The rotary evaporator RE-100D is suitable for all distillation tasks. The motorized lift is equipped with a safety function that automatically lifts the flask out of the heating bath in case of power failure. LCD display shows temperature, speed and time.Final position recognitionPush-off mechanismTimer functionInterval operation left/rightUSB interfaceVertical condenser. Coated condenser as optionScope of supply: Rotary evaporator, vertical condenser

Various collection, evaporator and powder flasks available on request.

Scope of supply: 2 x membrane with support ring and fastening

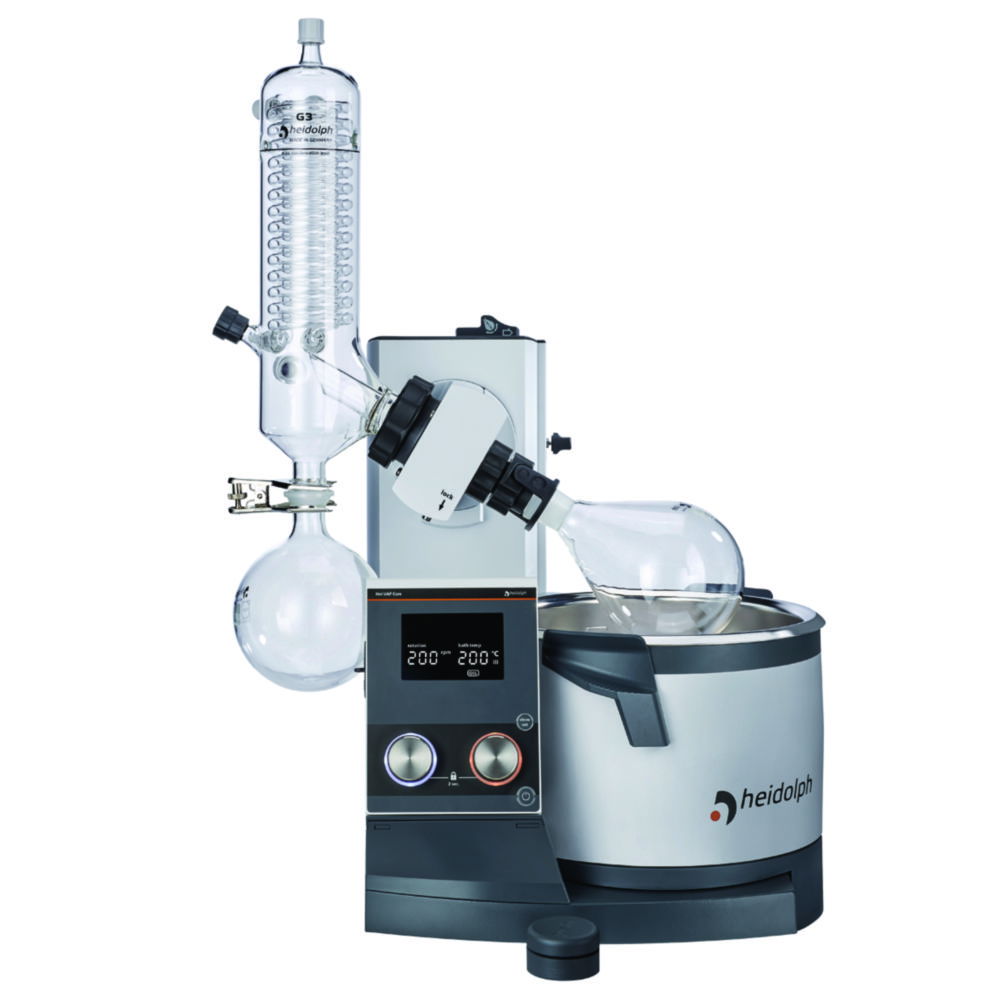

Available as hand or motor liftClear digital display for monitoring the current values and separate button to display the set valuesTwo separate operating knobs for adjusting the rotation speed and heating temperature with LED ring light system for activity indicationActivated lock feature prevents inadvertent adjustmentsResidual heat indicator when >50 °CStandby button stops all functions and lifts the evaporator flask out of the heating bath on motor lift modelsErgonomically optimized heating bath handles sit securely in your handEasily adjust immersion depth up to 155 mm and the tilt angle of the evaporating flask from 20° to 80°Grease-free operation thanks to innovative sealing technologyVentilation cap with PTFE inlet and free of ground joints. Optionally available with replenishment valveOptional cable extension. The operating panel can be detached for use outside closed fume hoodsScope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask. Supplied condensor as indicated.Scope of supply: Hei-VAP Core with hand lift and vertical glassware set G3, Vacuum controller Hei-VAC Control, Vacuum pump Rotavac Valve Tec, Tube-Set, Chiller Hei-CHILL 250, Thermal fluid Kyro 30 (10 l)

Available as hand or motor liftClear digital display for monitoring the current values and separate button to display the set valuesTwo separate operating knobs for adjusting the rotation speed and heating temperature with LED ring light system for activity indicationActivated lock feature prevents inadvertent adjustmentsResidual heat indicator when >50 °CStandby button stops all functions and lifts the evaporator flask out of the heating bath on motor lift modelsErgonomically optimized heating bath handles sit securely in your handEasily adjust immersion depth up to 155 mm and the tilt angle of the evaporating flask from 20° to 80°Grease-free operation thanks to innovative sealing technologyVentilation cap with PTFE inlet and free of ground joints. Optionally available with replenishment valveOptional cable extension. The operating panel can be detached for use outside closed fume hoodsScope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask. Supplied condensor as indicated.Available as hand or motor liftClear digital display for monitoring the current values and separate button to display the set valuesTwo separate operating knobs for adjusting the rotation speed and heating temperature with LED ring light system for activity indicationActivated lock feature prevents inadvertent adjustmentsResidual heat indicator when >50 °CStandby button stops all functions and lifts the evaporator flask out of the heating bath on motor lift modelsErgonomically optimized heating bath handles sit securely in your handEasily adjust immersion depth up to 155 mm and the tilt angle of the evaporating flask from 20° to 80°Grease-free operation thanks to innovative sealing technologyVentilation cap with PTFE inlet and free of ground joints. Optionally available with replenishment valveOptional cable extension. The operating panel can be detached for use outside closed fume hoodsScope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask. Supplied condensor as indicated.

With the clear 5'' touch display all values are easy to read. Without vacuum control. For integration into an existing vacuum system or for configuration with optional vacuum controller.Available as hand or motor liftCentral operating panel with 5'' touch displayClear display of all values (Basic and Advanced modes)With timer, limitation of max. temperature, multilingual menu and text display for error messagesSeparate knobs for rotation and heating with locking function to prevent accidental readjustingLED ring lights and pictogram to display the activity even from a distanceIntegrated solvent library to facilitate adjustment of the required vacuum on an external vacuum controllerUSB and Micro SD interfaces Optional display of vapor temperatureScope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask. Supplied condensor as indicated.With the clear 5'' touch display all values are easy to read. Without vacuum control. For integration into an existing vacuum system or for configuration with optional vacuum controller.Available as hand or motor liftCentral operating panel with 5'' touch displayClear display of all values (Basic and Advanced modes)With timer, limitation of max. temperature, multilingual menu and text display for error messagesSeparate knobs for rotation and heating with locking function to prevent accidental readjustingLED ring lights and pictogram to display the activity even from a distanceIntegrated solvent library to facilitate adjustment of the required vacuum on an external vacuum controllerUSB and Micro SD interfaces Optional display of vapor temperatureScope of supply: Flask clamp Easy-Clip, vapour tube, ventilation cap, heating bath, 1-l receiving flask, 1-l evaporating flask. Supplied condensor as indicated.
