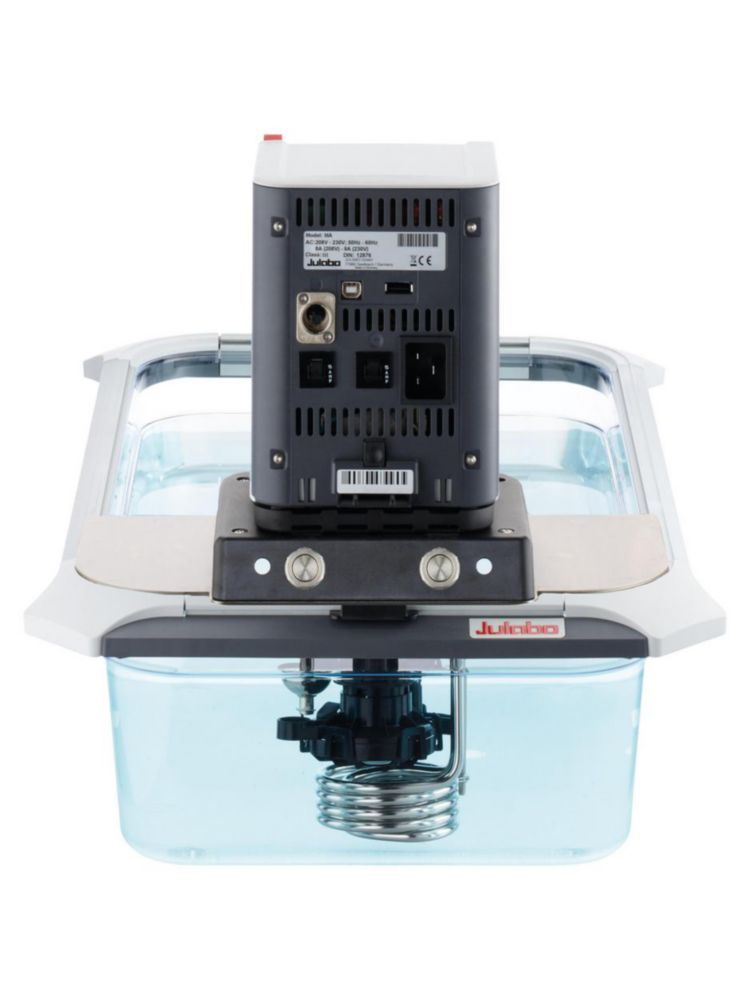

Heating bath circulator CORIO™ CD-BT, with transparent bath tank
Julabo GmbH
Hersteller: Julabo GmbH
Produktinformationen "Heating bath circulator CORIO™ CD-BT, with transparent bath tank"
Heating bath circulator for internal and external temperature applications with transparent bath tank and pump connections.
- Bright, white, easy to read display
- Very quiet
- Pump change-over between internal and external circulation
- USB connection
- Class III (FL) according to DIN 12876-1
Eigenschaften "Heating bath circulator CORIO™ CD-BT, with transparent bath tank"
| Bath depth: | 150 mm |
|---|---|
| Depth opening: | 350 mm |
| Ext. depth: | 580 mm |
| Ext. height: | 380 mm |
| Ext. width: | 380 mm |
| External dimensions (WxDxH): | 380 x 580 x 380 mm |
| Heating capacity: | 2 kW |
| IP code: | IP 21 |
| Manufacturer Article Number: | 9012319 |
| Material bath: | PC |
| Max. delivery pressure: | 0.35 bar |
| Max. flow rate: | 15 l/min |
| Max. temperature: | 100 °C |
| Max. voltage: | 230 V |
| Max. volume bath: | 19 l |
| Min. temperature: | 20 °C |
| Min. volume bath: | 14 l |
| Opening (WxD): | 300 x 350 mm |
| Power supply: | 230 V, 50 Hz |
| Power supply frequency: | 50 Hz |
| Temperature: | 20 ... 100 °C |
| Temperature stability: | ±0,03 °C |
| Type: | CD-BT19 |
| Type of auxiliary energy: | Mains connection |
| Volume bath: | 14 ... 19 l |
| Weight: | 8 kg |
| Width opening: | 300 mm |
| With lid: | No |
