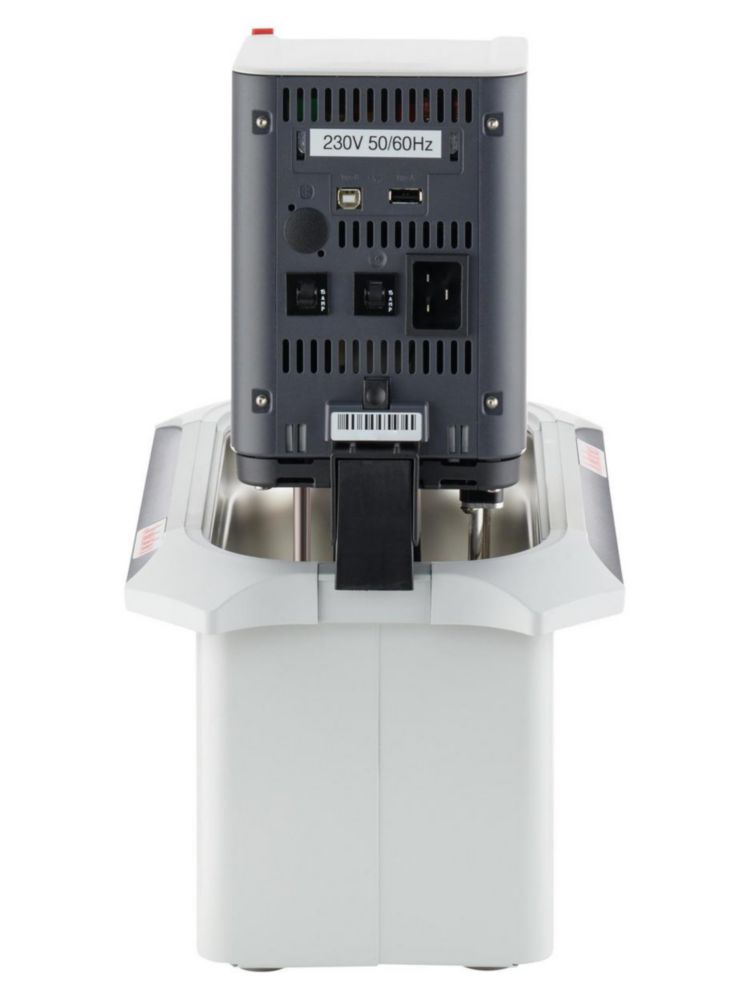

Heating bath circulators CORIO™ C-B, with stainless steel bath tanks
Julabo GmbH
Hersteller: Julabo GmbH
Produktinformationen "Heating bath circulators CORIO™ C-B, with stainless steel bath tanks"
Heating bath circulators for internal temperature applications with stainless steel bath tanks for working temperatures from 20 °C to 100 °C, complete set with bath tanks.
- For internal applications
- Bright, white, easy to read display
- Whisper quiet
- Integrated drain screw (except for B5)
Eigenschaften "Heating bath circulators CORIO™ C-B, with stainless steel bath tanks"
| Bath depth: | 150 mm |
|---|---|
| Depth opening: | 150 mm |
| Ext. depth: | 380 mm |
| Ext. height: | 410 mm |
| Ext. width: | 230 mm |
| External dimensions (WxDxH): | 230 x 380 x 410 mm |
| Heating capacity: | 2 kW |
| IP code: | IP 21 |
| Manufacturer Article Number: | 9011405 |
| Material bath: | Stainless steel |
| Max. delivery pressure: | 0.1 bar |
| Max. flow rate: | 6 l/min |
| Max. temperature: | 100 °C |
| Max. voltage: | 230 V |
| Max. volume bath: | 5 l |
| Min. temperature: | 20 °C |
| Min. volume bath: | 3.5 l |
| Opening (WxD): | 150 x 150 mm |
| Power supply: | 230 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Temperature: | 20 ... 100 °C |
| Temperature stability: | ±0,03 °C |
| Type: | C-B5 |
| Type of auxiliary energy: | Mains connection |
| Volume bath: | 3.5 ... 5 l |
| Weight: | 7.3 kg |
| Width opening: | 150 mm |
| With lid: | No |
| With timer: | Yes |
