Magnetic stirrer Hei-PLATE Sensor Advanced Package Core
Heidolph Scientific
Hersteller: Heidolph Scientific
Produktinformationen "Magnetic stirrer Hei-PLATE Sensor Advanced Package Core"
The Hei-PLATE Mix'n'Heat Core series with heating consists of models Hei-PLATE Mix'n'Heat Core, Hei-PLATE Mix'n'Heat Core+ and Hei-PLATE Mix'n'Heat Core+.

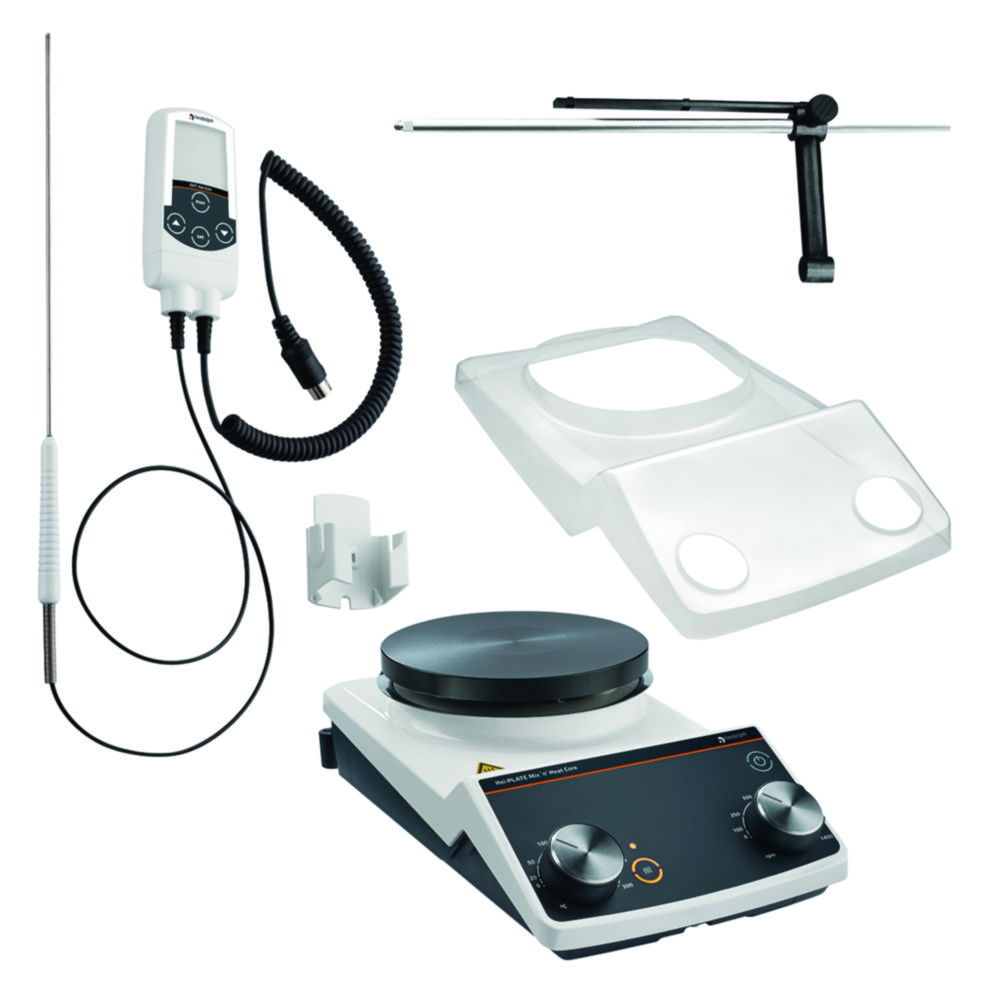

Scope of supply: Hei-PLATE Mix'n'Heat Core, EKT Hei-Con incl. clamping system, silicone protective cover
- With patented Kera-Disk® top plate made of anodized aluminum and fireproof aluminum die cast housing
- Fastest heating times thanks to 800 W (at 230 V), the built in PID controller guarantees precise control without overshooting the temperature
- Simple operating concept
- Larger distances between the heating plate and knobs for additional protection against burns
- Liquids are safely dissipated from the device
- A carrying support on the underside ensures safe transport
- Connections on the back are protected by a flap
- With connection for optional temperature sensor Pt 1000
- Compatible with EKT Hei-Con contact thermometers for external controlling and display of actual temperature values
Eigenschaften "Magnetic stirrer Hei-PLATE Sensor Advanced Package Core"
| Colour housing: | White |
|---|---|
| Depth: | 299 mm |
| Dimensions (WxDxH): | 168 x 299 x 101 mm |
| Display: | Analogue |
| Heating capacity: | 800 W |
| Heating temperature: | 20 ... 300 °C |
| Height: | 101 mm |
| IP code: | IP 42 |
| Manufacturer Article Number: | 506-11157-00 |
| Max. heating temperature: | 300 °C |
| Max. permitted ambient temperature: | 31 °C |
| Max. relative humidity rate: | 80 % |
| Max. speed: | 1400 1/min |
| Max. stirring capacity: | 20 l |
| Max. voltage: | 230 V |
| Min. heating temperature: | 20 °C |
| Min. permitted ambient temperature: | 5 °C |
| Min. speed: | 100 1/min |
| No. of stirring positions: | 1 |
| Permitted ambient temperature: | 5 ... 31 °C |
| Plug type: | EU |
| Power supply: | 230 V |
| Rated capacity: | 825 W |
| Speed: | 100 ... 1,400 1/min |
| Type: | Hei-PLATE Sensor Advanced Core |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41103806 |
| Weight: | 3 kg |
| Width: | 168 mm |
| With connection ext. temperature sensor: | Yes |
| With timer: | No |
| Working area Ø: | 145 mm |
