Sampling

AISI 304 stainless steel.

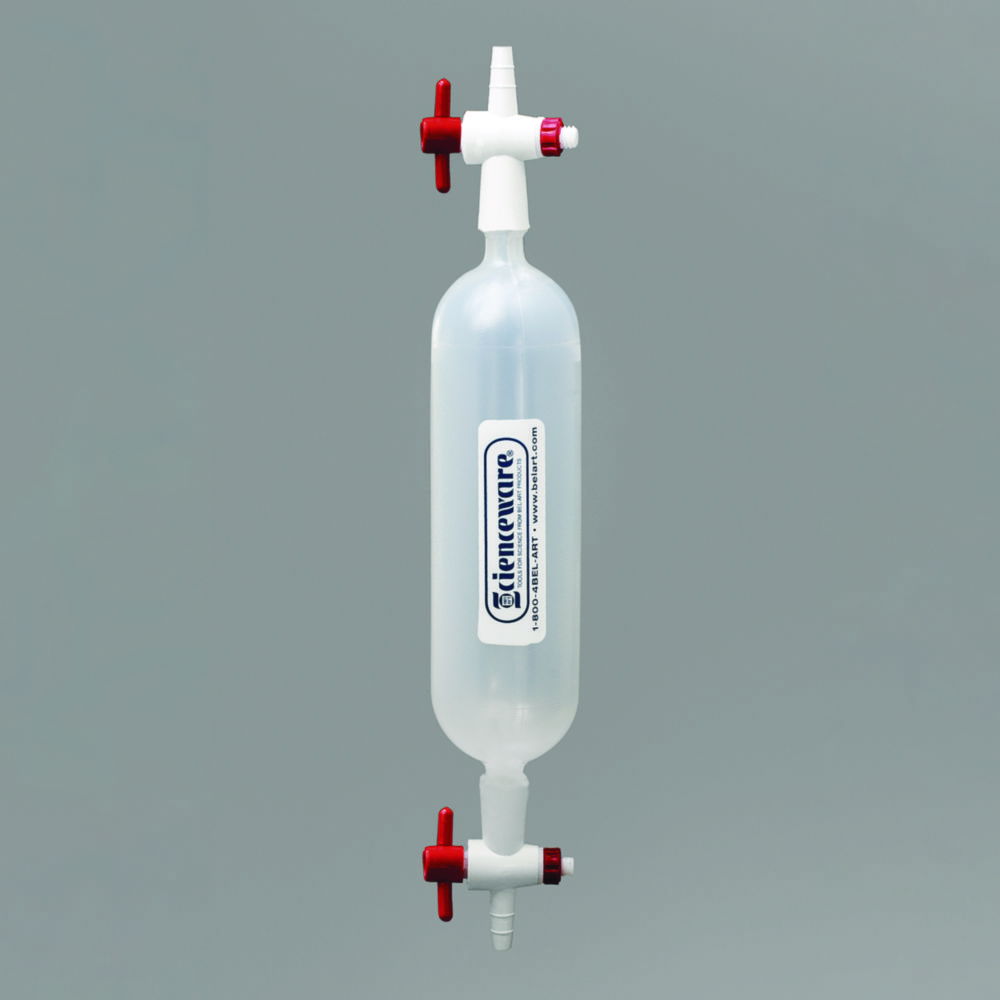

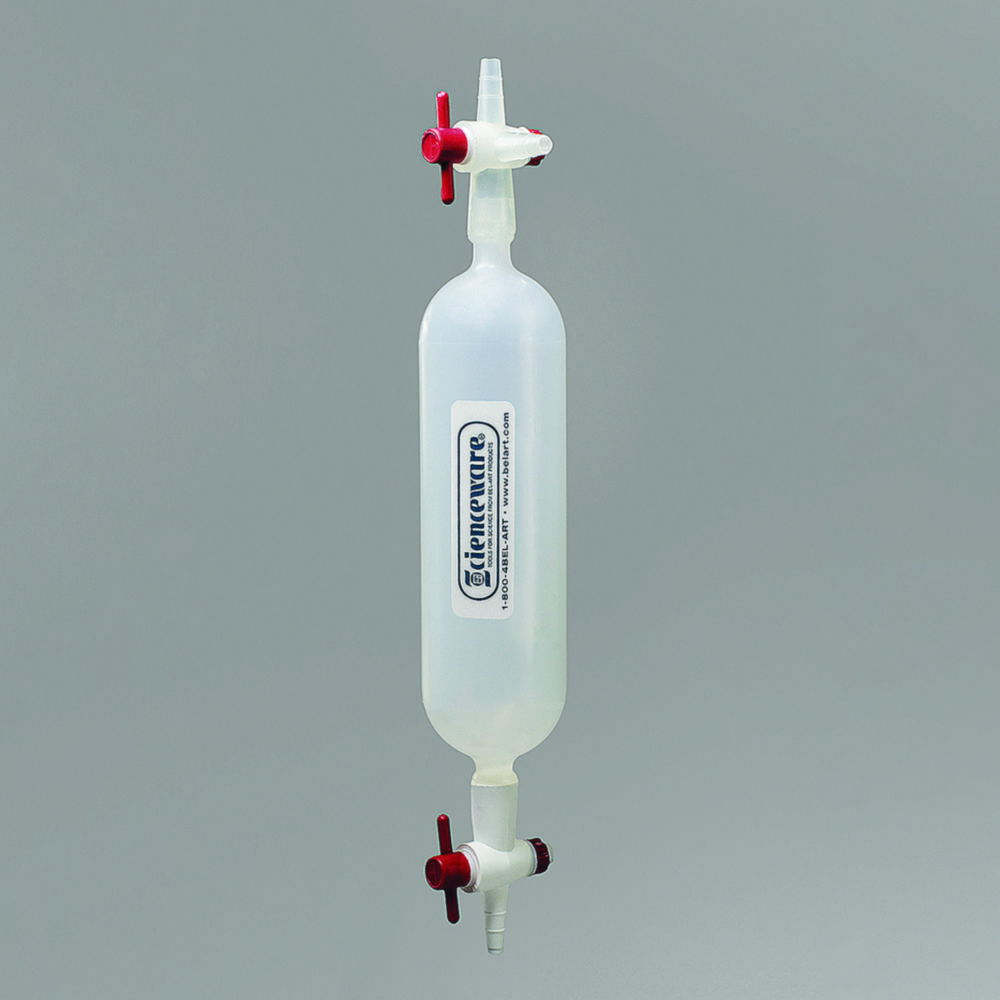

Stopcocks, PP, with free-turning PTFE plugs. Ends accept 6.4 to 9.5 mm I.D. tubing.Stopcocks, PP, with free-turning PTFE plugs. Ends accept 6.4 to 9.5 mm I.D. tubing.

Stopcocks, PP, with free-turning PTFE plugs. Ends accept 6.4 to 9.5 mm I.D. tubing.Stopcocks, PP, with free-turning PTFE plugs. Ends accept 6.4 to 9.5 mm I.D. tubing.

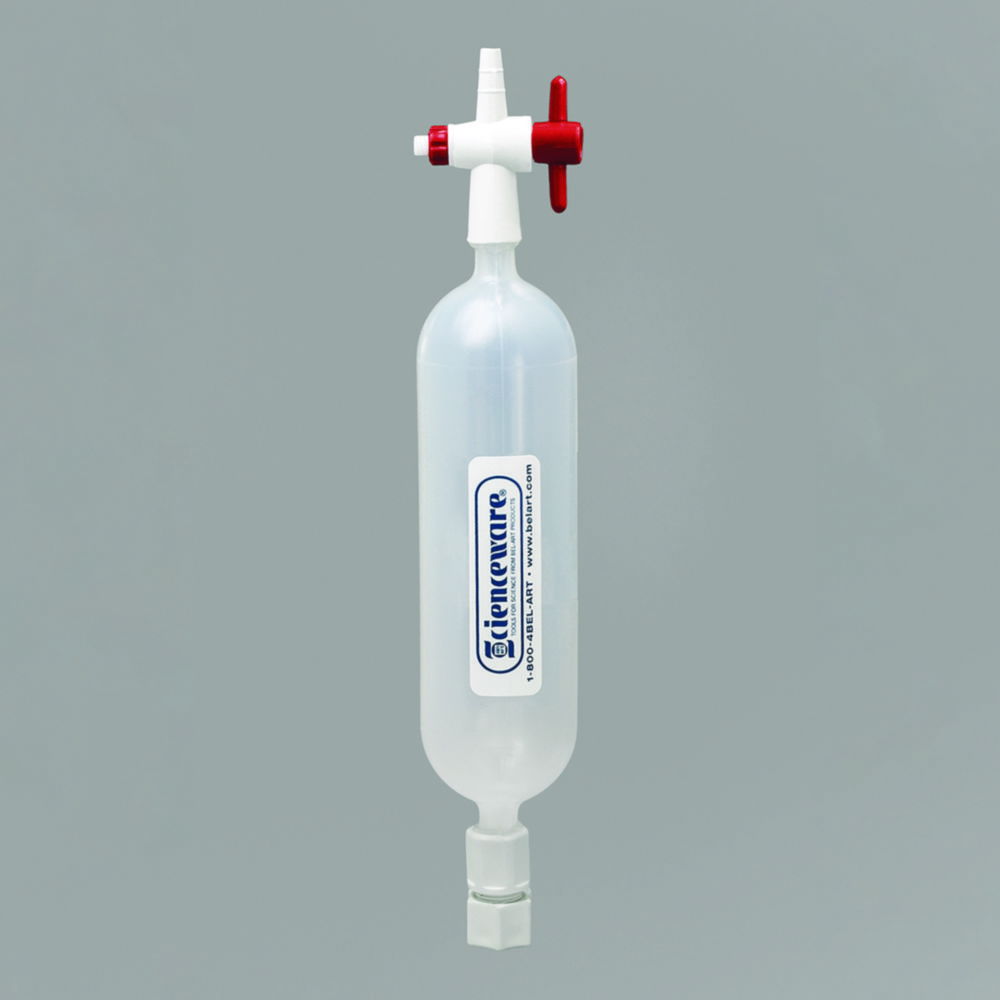

Stopcocks, PP, with free-turning PTFE plugs. Ends accept 6.4 to 9.5 mm I.D. tubing.Screw fitting with silicone rubber septum, 6 septa included.

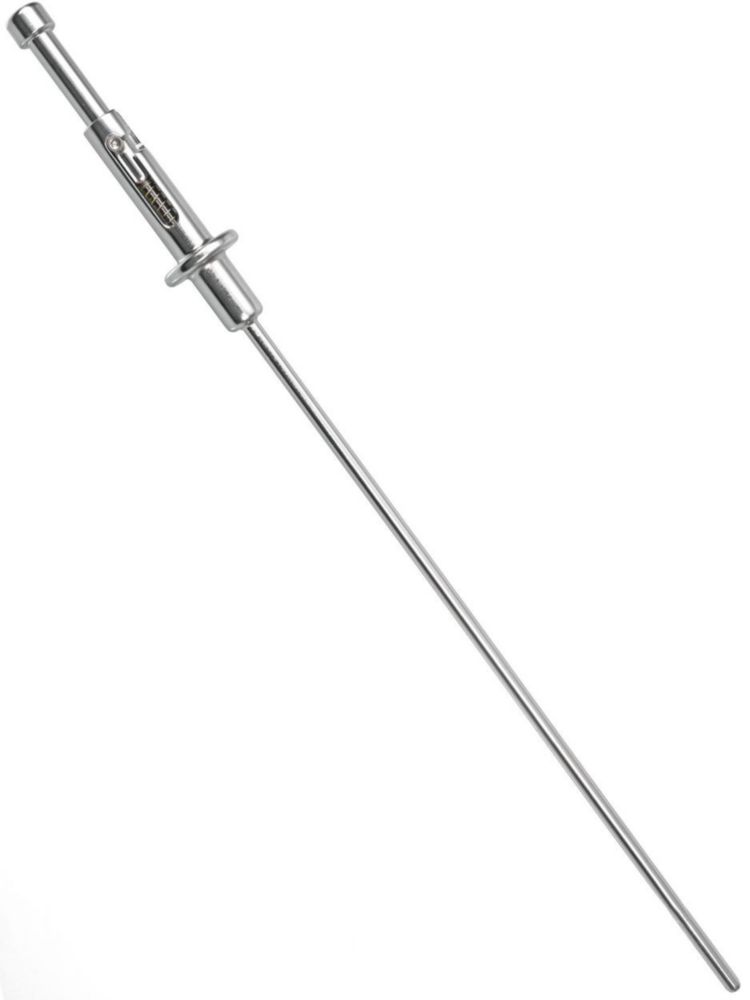

For precise sampling of small quantities (0.01 - 0.1 ml). With an insertion depth of up to 300 mm, multiple target point samples can be collected at different depths. When the button is pressed, a sampling rod enters the sample material and retracts when released. In this way, a fixed amount of sample material is enclosed in the sample notch of the rod and removed.

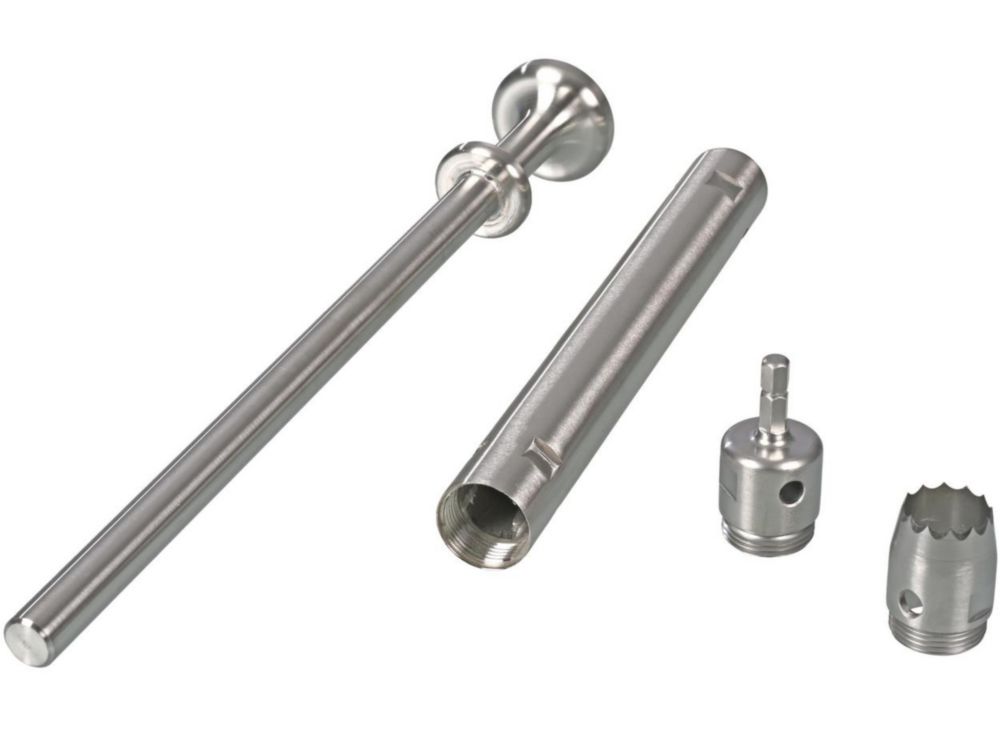

For sampling hay, silage, straw, herbs, shrubs or other stalky plant dry material. The special geometry of the drill tip cuts effectively and quickly into various materials. The practical ejector helps to empty the sampler.Sample removal possible with mechanical support (drill or cordless screwdriver)Can be used horizontally and vertically

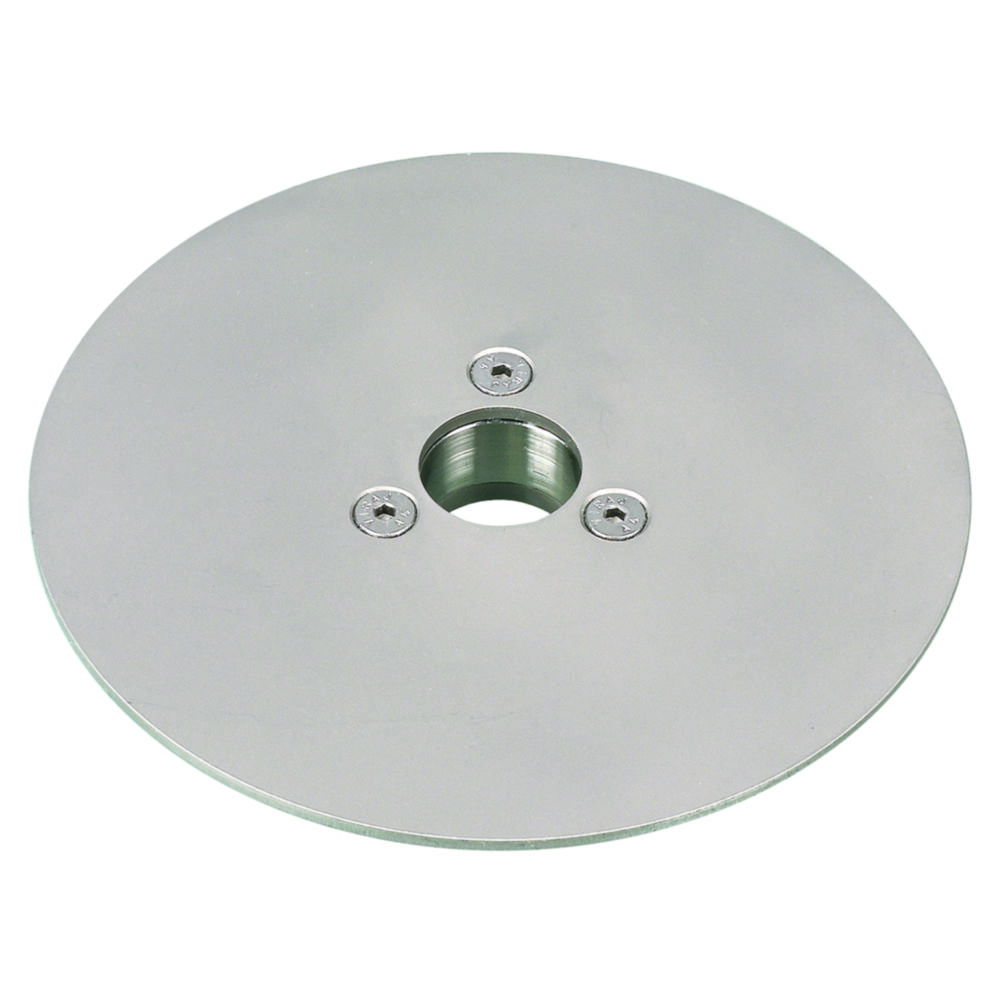

The depth stop can be clamped to any height of the sampler. This ensures that the sampler penetrates to the same desired depth each time it is pierced. In addition, accidental puncturing during sampling is prevented.For standardised, reproducible samplingFixation by C-clamping screwAutoclavableFood safe

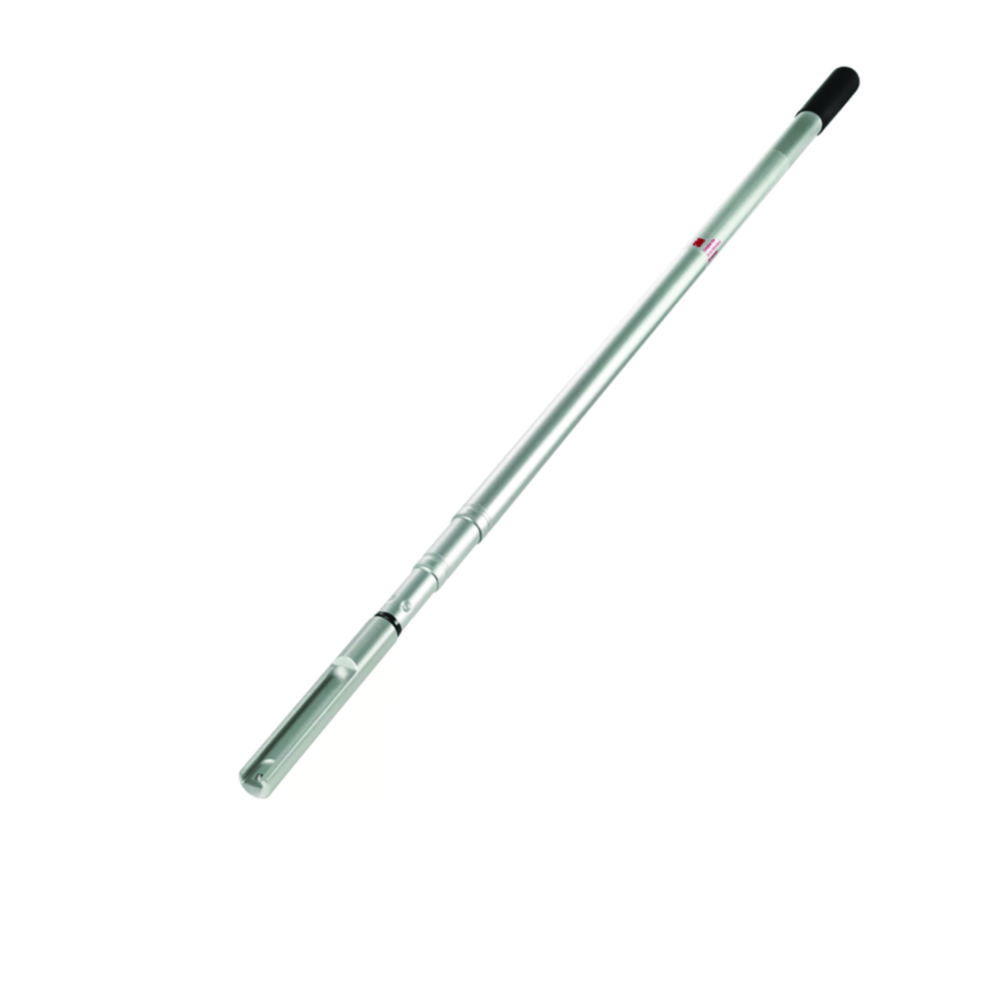

Designed for use with the Neogen® Sponge Stick for easier sampling of remote and hard-to-reach areas.Lightweight, extendable rod, robustEnables samples to be taken safely from ceilings and tanks

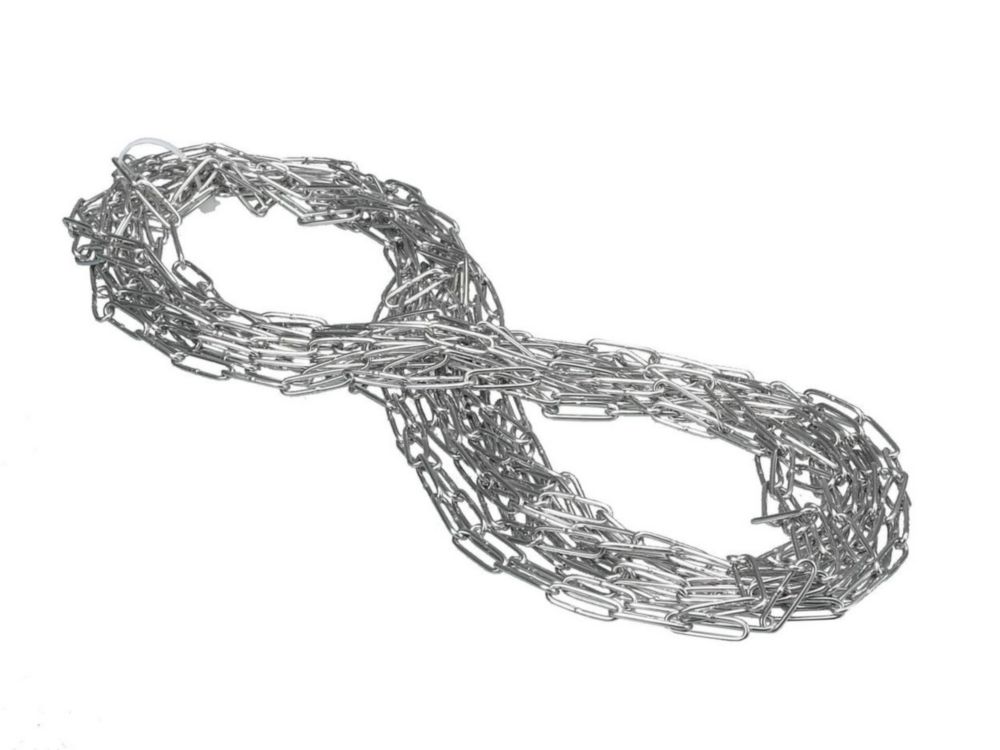

Manually-operated reelsHigh winding capacity of up 150 m for cable 2 mm dia.Reel width: inner 44 mm, outer 55 mm, reel diameter: inner 100 mm, outer 180 mmPlease order the required lowering cable separatelyLowering cablesFor dipping bottles and immersion cylinders, matching manually-operated drum reels made of various materialsTensile load max. up to 10 kg

Designed for precise sampling, this durable polystyrene (PS) spoon is ideal for handling sensitive materials in laboratory orIndustrial settings.Individually packagedSterilized

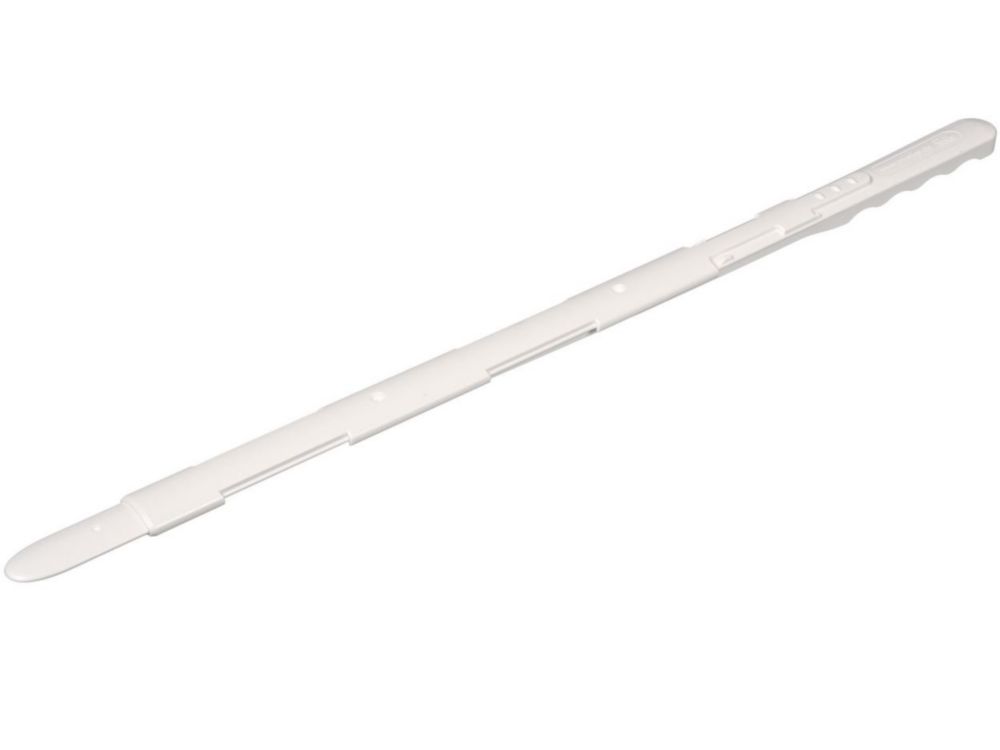

The three separate sampling chambers allow simultaneous sampling from different layers or zones. A sliding mechanism with an end stop makes it easy to open and close the sampler. Ergonomic one-handed operationClean room manufactured, individually packagedFood safe

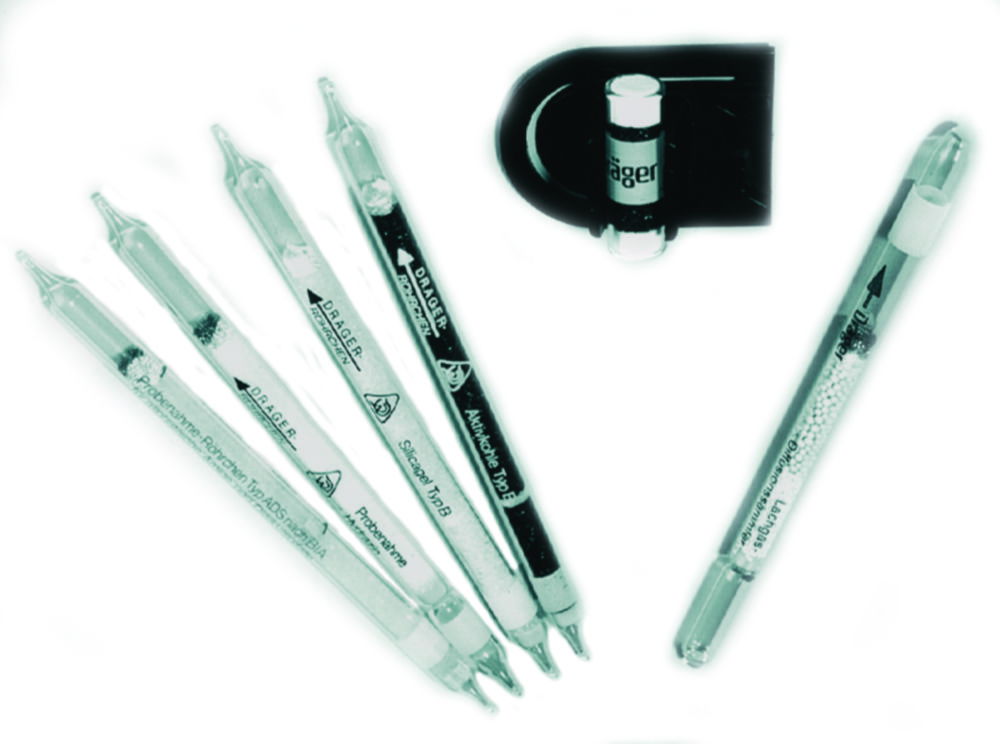

Using the Dräger activated charcoal tubes or silica gel tubes, hazardous substances in the air are collected using a suitable medium via adsorption or chemisorption. The sample is then analysed in the laboratory by means of various analytical methods such as gas chromatography (GC), high performance liquid chromatography (HPLC), UV-VIS photometry, or IR spectroscopy.

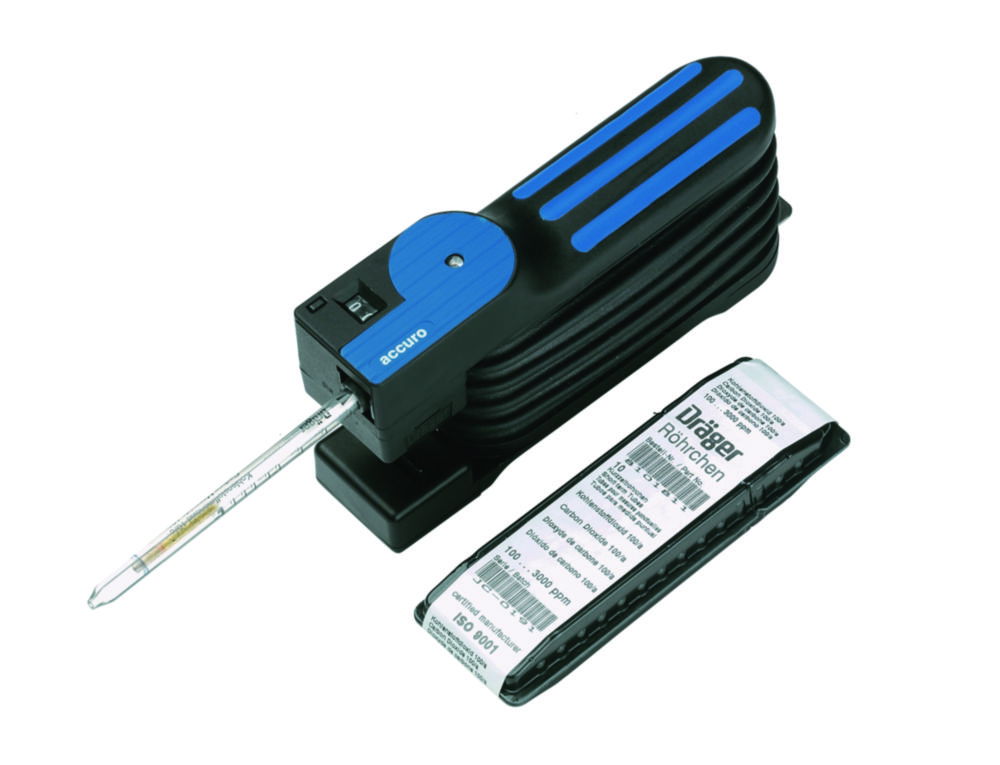

The Dräger-Tubes® measuring system is the safe method for measuring pollutants in the soil, water and air. More than 500 substances can be measured in varying concentrations. The long-established principle of Dräger-Tubes® is still the same. A defined volume of gas/air must be pumped through the sampling tube. This can be achieved by using the Accuro® gas pump. On contact with the substance under test the reagent system contained in the tube reacts and displays a colour. The strength of the concentration of the substance is shown by the length of the colour band displayed and can be read directly from the scale. The Dräger-Tubes® sampling system provides accuracy, efficiency, quick and easy handling. Over 250 tubes are available on request for all substances and measuring fields. Further sampling devices, diffusion tubes for long-term measurements as well as sampling systems with activated carbon tubes, ORSA collector and TDS thermodesorption tubes are also available.

The Dräger-Tubes® measuring system is the safe method for measuring pollutants in the soil, water and air. More than 500 substances can be measured in varying concentrations. The long-established principle of Dräger-Tubes® is still the same. A defined volume of gas/air must be pumped through the sampling tube. This can be achieved by using the Accuro® gas pump. On contact with the substance under test the reagent system contained in the tube reacts and displays a colour. The strength of the concentration of the substance is shown by the length of the colour band displayed and can be read directly from the scale. The Dräger-Tubes® sampling system provides accuracy, efficiency, quick and easy handling. Over 250 tubes are available on request for all substances and measuring fields. Further sampling devices, diffusion tubes for long-term measurements as well as sampling systems with activated carbon tubes, ORSA collector and TDS thermodesorption tubes are also available.

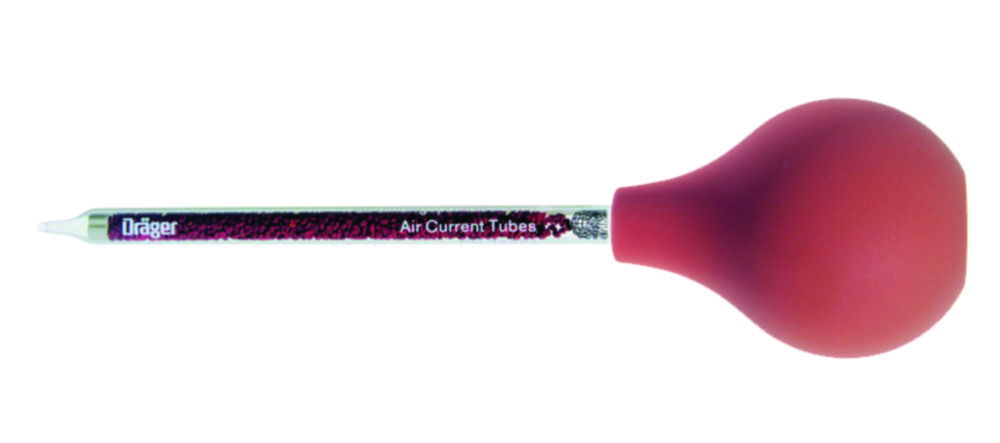

In many fields, such as mining or industry, it is very important to detect even the smallest air flows, in order to quickly and reliably evaluate the possible diffusion of dangerous substances. With the air flow test tubes, the source, direction and speed of the air flow are visible immediately.Hazardous Substance DataGHSSignal wordGefahrH-SatzH290, H314P-SatzP102, P103, P260, P280, P301+P330+P331, P305+P351+P338, P309, P310UNNR3260SDSLink

The Dräger-Tubes® measuring system is the safe method for measuring pollutants in the soil, water and air. More than 500 substances can be measured in varying concentrations. The long-established principle of Dräger-Tubes® is still the same. A defined volume of gas/air must be pumped through the sampling tube. This can be achieved by using the Accuro® gas pump. On contact with the substance under test the reagent system contained in the tube reacts and displays a colour. The strength of the concentration of the substance is shown by the length of the colour band displayed and can be read directly from the scale. The Dräger-Tubes® sampling system provides accuracy, efficiency, quick and easy handling. Over 250 tubes are available on request for all substances and measuring fields. Further sampling devices, diffusion tubes for long-term measurements as well as sampling systems with activated carbon tubes, ORSA collector and TDS thermodesorption tubes are also available.

Hazardous Substance DataUNNR3260SDSLink

Facilitate sample collection to reduce risk of cross-contamination.Individually wrappedHandle neatly snaps off after sample collectionSterilized by gamma radiation

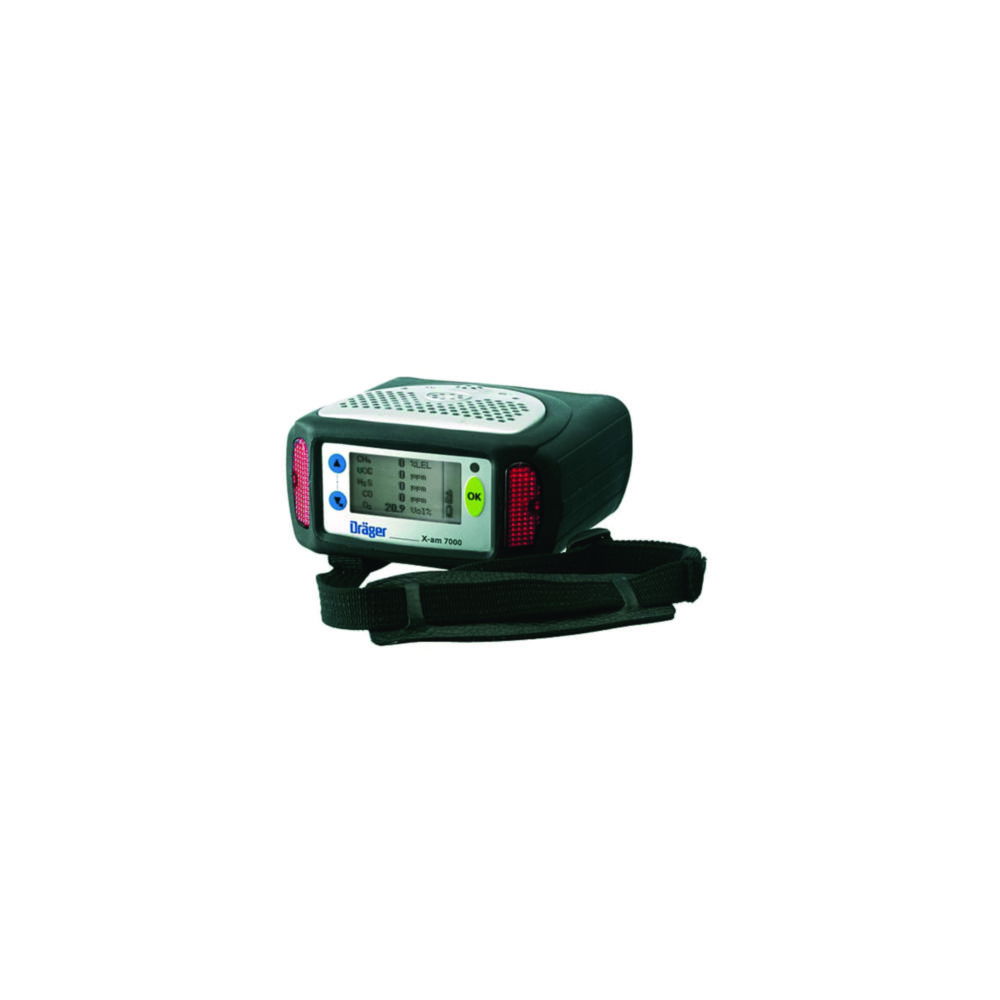

This device is the innovative solution for the simultaneous and continuous detection of up to five gases. A combination of more than 25 sensors allows flexible solutions to individual monitoring tasks. The device can be equipped with three electrochemical, and two catalytic bead, infrared or photoionisation sensors. It is the ideal companion in a great number of applications where reliable monitoring of oxygen, toxic and combustible gases and vapors in ambient air is necessary.Basic unit with rubber-boot, carrying strap, calibration adapter, water and dust filter. In order to get a fully operational unit, a power pack and up to 5 sensors have to be ordered. And, optionally, a built-in pump or a datalogger can be ordered.SpecificationsTemperature: Pressure: Humidity:-20 ... +55 °C, short-term -40 ... +60 °C 700 ... 1300 hPa 10 ... 95 % r.F.Alarms (visual/audible):360° flashing LEDs / 100 dB(A) at 30 cmCharging time:3.5 to 7 hours, depending on battery typePump mode:maximum hose length of 45 mDimensions (W x H x D):150 x 140 x 75 mmWeight (basic unit/battery):600 g / 490 g (3,0 Ah), 730 g (6,0 Ah)Ingress protection:IP 67Approvals:ATEX, MED, CSA, IECEx

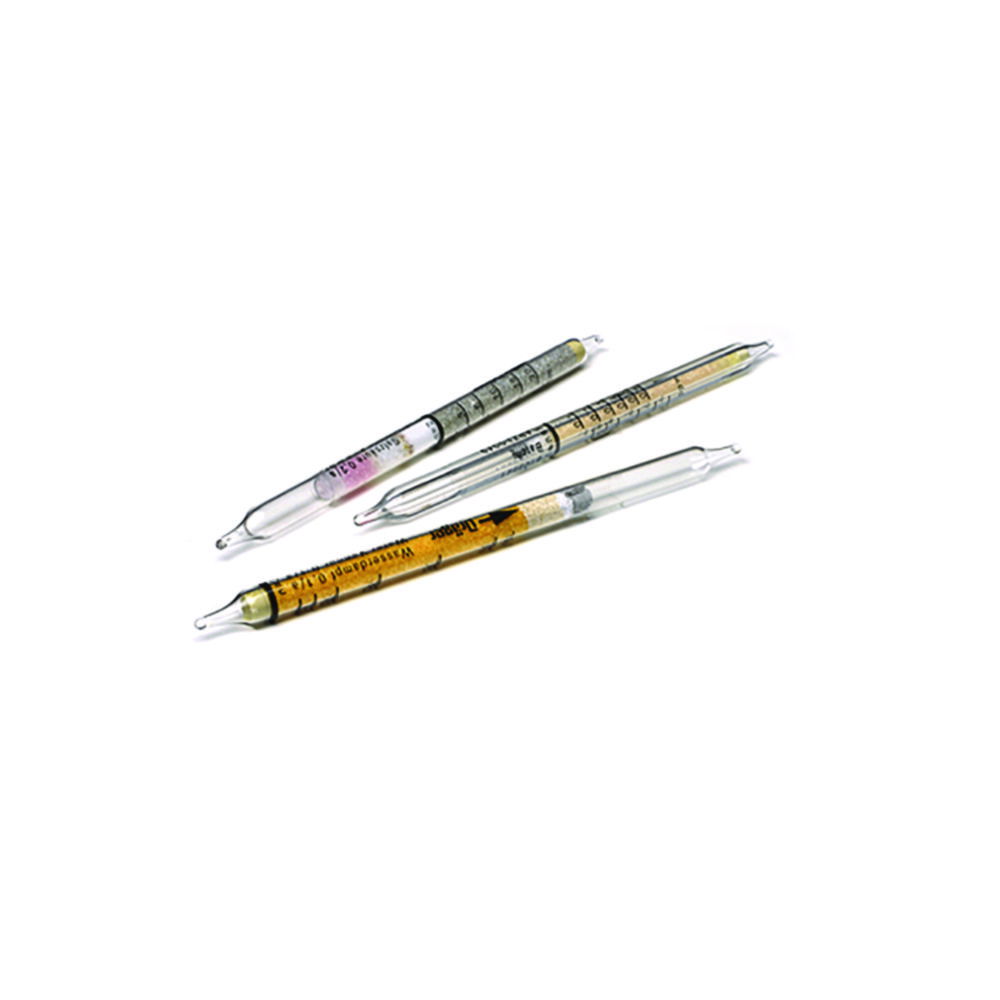

The Dräger Aerotest Alpha allows the quality of breathing air supplied by a compressor or compressed gas cylinder to be determined. Use of the test system performs a reliable check in accordance with the breathing air standard EN 12 021.Dräger Aerotest Alpha comprising of 1 pressure reducer, measuring device for 4 tubes, impactor adapter, coupling, barbed nipple, stopwatch, tube opener Dräger TO 7000, bubble test hose, pack of 5 sintered filters, instruction for use, transport case (black)

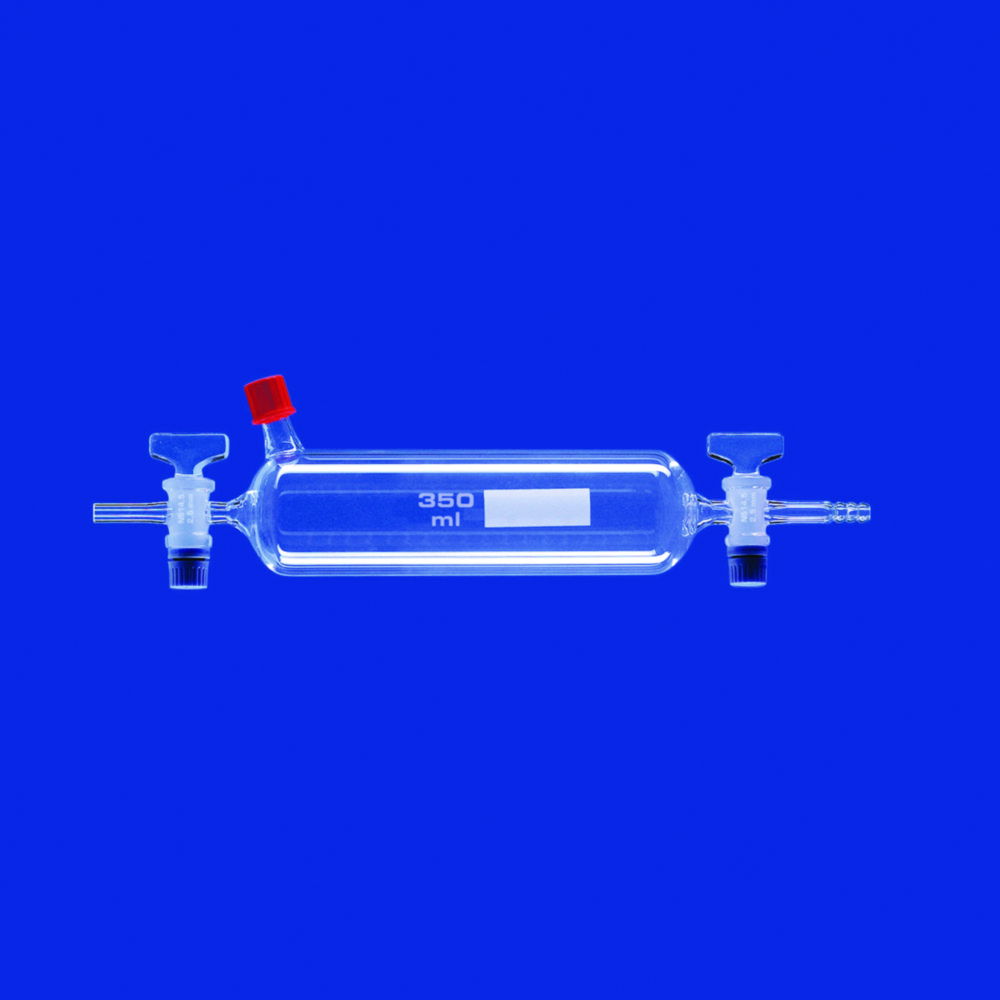

Gas sampling tubes, with nozzle (with thread GL14 and septa), with two one-way stopcocks NS14 (with retaining device), connections: capillary tube (outer dia. 8 mm, inner dia. 2.7 mm), glass olive (outer dia. 9 mm), with inscription label.

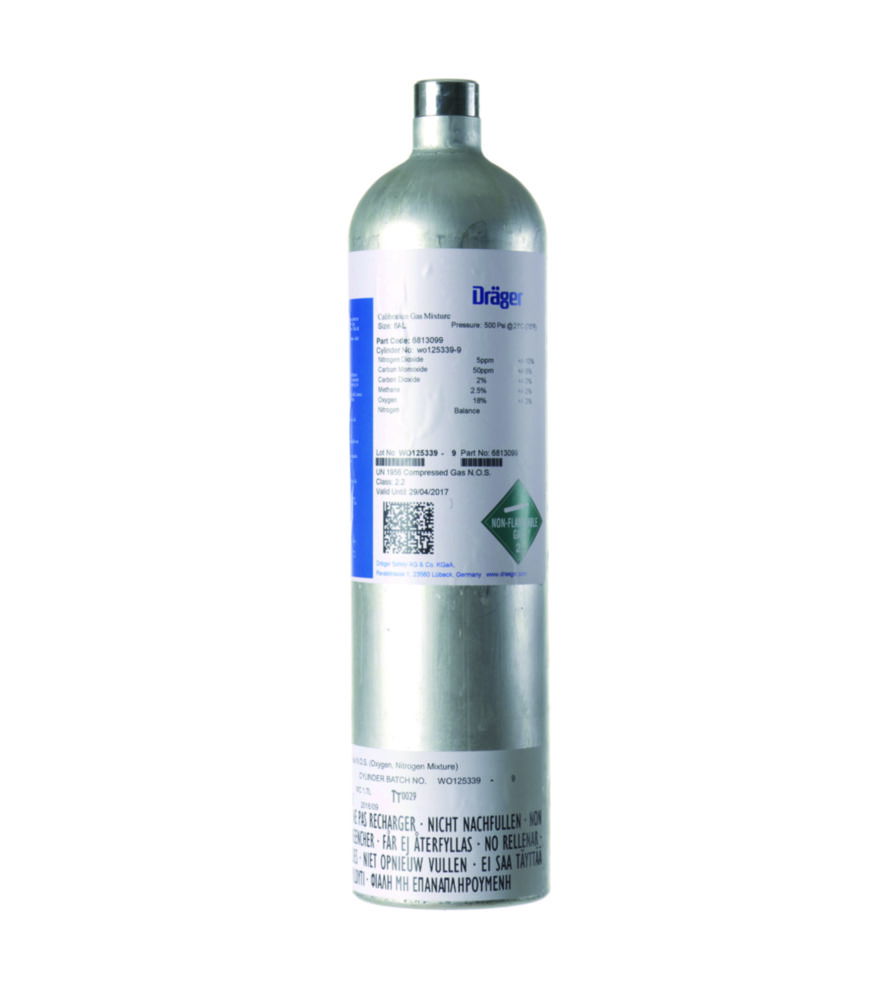

According to ISO 9002.DOT39 and EN12205.Control valve not included, please order separately.Hazardous Substance DataGHSSignal wordAchtungH-SatzH280P-SatzP103, P202, P233, P376, P403+P233, P410+P403, P412, P501UNNR1956SDSLink

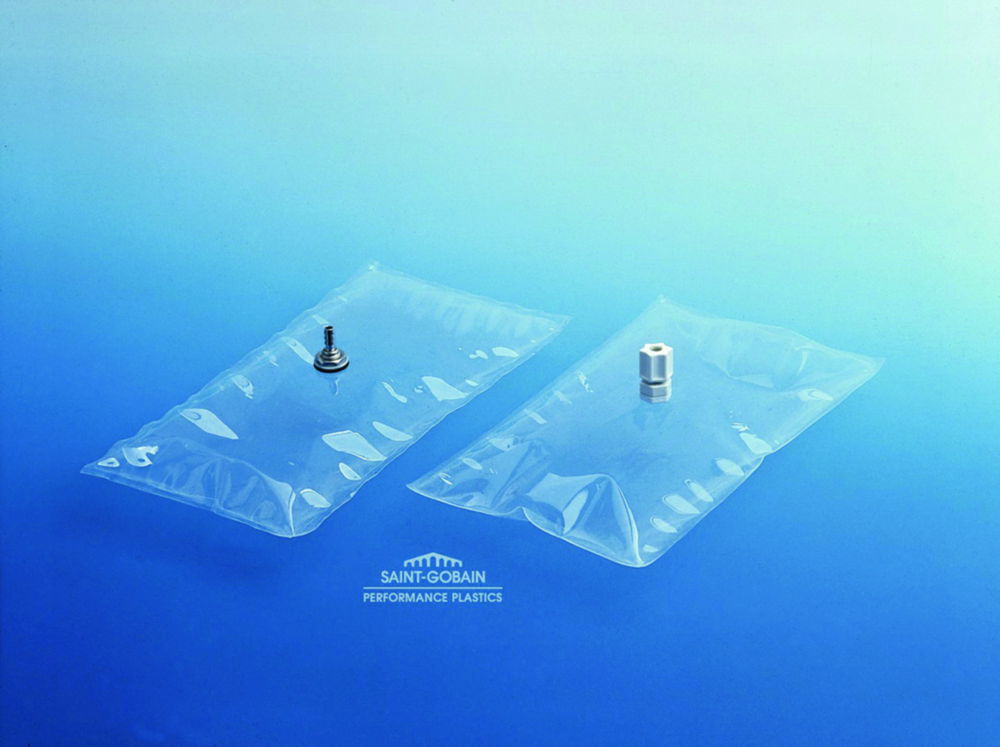

Made from 5 mil (125 µm) FEP fluoropolymer film, these flexible, sturdy bags are heat sealed on all four sides for complete chemical resistance and leak-proof operation. They are inert to most chemicals and have low permeability which limits sample loss. These FEP bags are easy to use. They can be stored for an unlimited period prior to use. Applications include gas sample analysis, extracting air samples from smokestack exhaust systems, monitoring air quality or calibrating instruments in the field. The bags are individually packaged.Chemically resistantFlexibleWill not contaminate sampleWith a nickel-plated, brass on/off valve that accepts 6.4 mm I.D. flexible tubing.

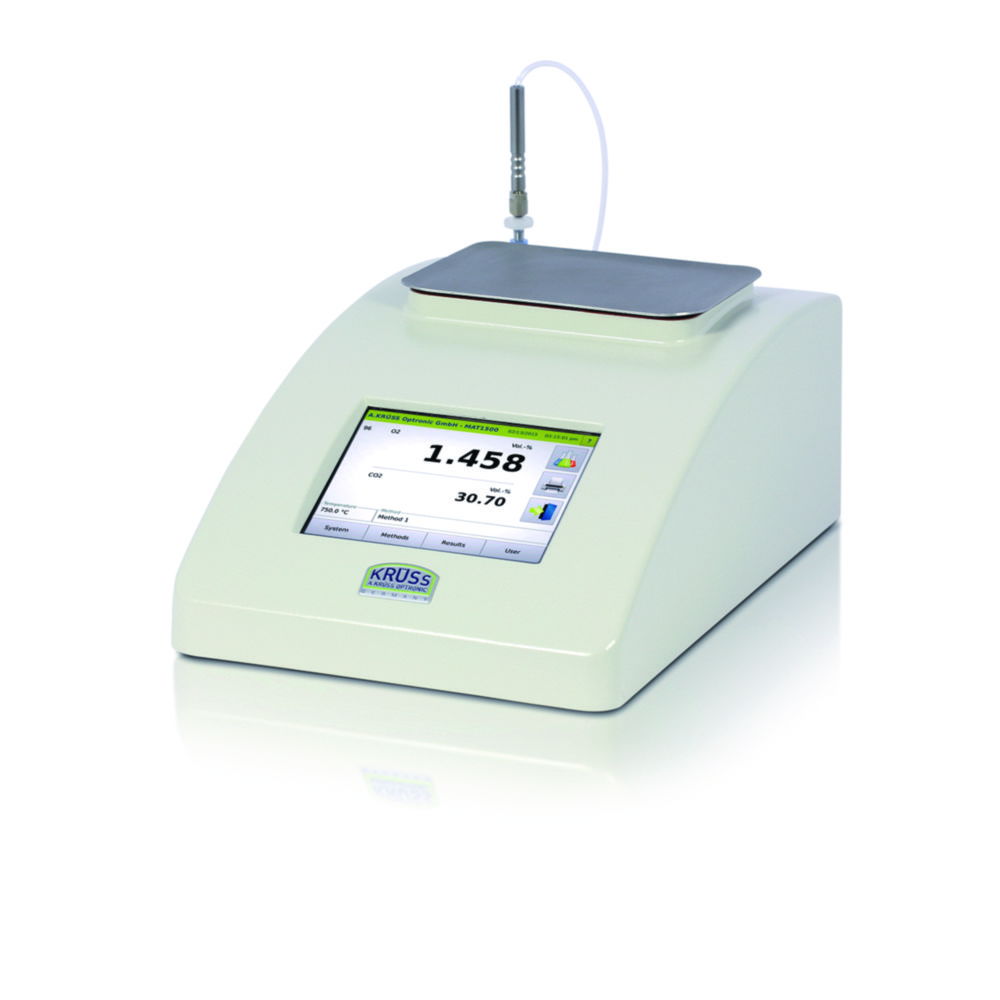

Gas analyzers MAT1000 series are used for measuring oxygen concentrations (O2) or optional carbon dioxide concentrations (CO2).Applies to all models of MAT1000 series:Easy and intuitive operation via touchscreen, even by untrained personnelCreate your own methodAvailable method parameters: scales, measurement procedures, limit values, comment and much moreSelectable measurement methods: single or continuousSeveral single measurement procedures: manual, automatic, min/max detectionShortcut keys for most important functionsShort measurement period, high accuracy even with small sample volumeValidation possibleCompliance with global standards such as GMP/GLP and 21 CFR Part 11Documentation of all measured values of the last 999 measurementsIntegrated interfaces, flexible data export (USB, Ethernet, RS-232)Compact design in robust cast aluminum housingBuilt-in air pressure sensorIntegrated flow rate monitoringGas analysers for controlling protective gas packaging. The MAT1100 equipped with an electrochemical oxygen cell measures the oxygen concentration within the range of 0.5 and 35 vol% and with an accuracy of ±0.2 vol%. The MAT1200 additionally features a non-dispersive infrared sensor for measuring carbon dioxide within the range of 0 and 50 vol% and with a high accuracy of ±0.5 vol%. Both devices are suitable for the random sampling as well as the permanent monitoring of the gas mixture used on packaging machines. Their solid metal housing with an interchangeable protective cover offers protection against impact and dirt from the outside.Measurement of O2 and CO2 e.g. in modified atmosphere packaging, for work with modified atmosphere conditions.Sporadic O2 sample checksQuick OperationLow-drift electrochemical oxygen cell (EC)Low-drift carbon non-dispersive infrared sensor (NDIR), model MAT1200Combined O2 and CO2 measurement, model MAT1200Environmental compensated CO2 measurement, model MAT1200SpecificationsO2 measuring range: Accuracy: Resolution:0.5 to 35 Vol.-% ±0.2 Vol.-% 0.1 Vol.-%CO2 measuring range (only MAT1200): Accuracy: Resolution:0 to 50 Vol.-% ±0.5 Vol.-% 0.11 Vol.-%Average measurment period: Heating time MAT 1100 / MAT1200:7 to 10 sec 10 sec / 5 minInterface:RS-232, USB, EthernetDimensions (W x D x H):200 x 350 x 150 mmWeight:4.6 kgPower consumption:60 WPower supply:100-250 V, 50/60 Hz
