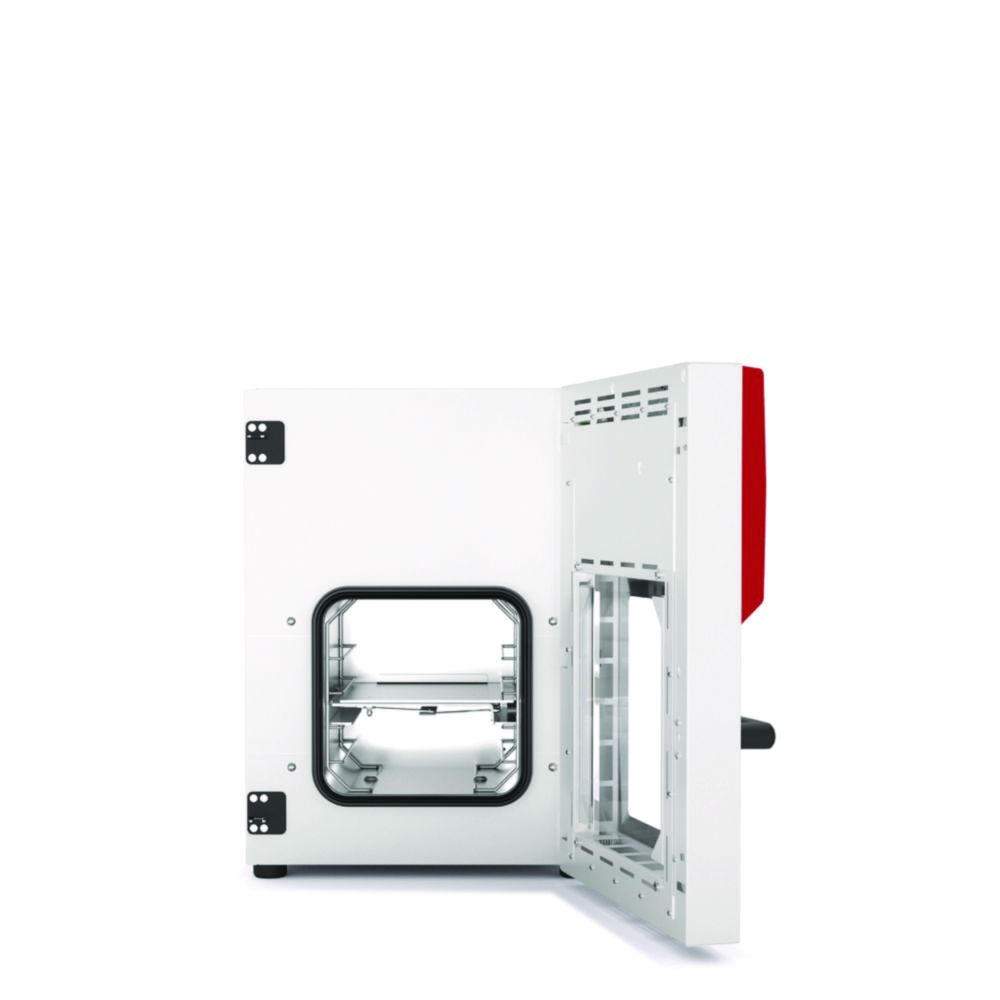

Vacuum drying ovens VD series
BINDER GmbH
Hersteller: BINDER GmbH
Produktinformationen "Vacuum drying ovens VD series"
For gentle, fast drying without residues, incrustations or oxidation.
- Direct heat transfer through large thermal conducting plates
- Program-controlled drying monitoring with automatic ventilation at end of process
- Internal data logger, measured values can be read out in open format via USB
- Inert gas connection
- Shatterproof, spring-mounted safety glass panel
- Large viewing window
- Aluminum expansion racks, can be custom-positioned
- Ethernet interface
- For non-flammable solvents
- Controller with digital display of pressure and temperature
- Access port DN 16
Eigenschaften "Vacuum drying ovens VD series"
| Depth int.: | 295 mm |
|---|---|
| Ext. depth: | 413 mm |
| Ext. height: | 698 mm |
| Ext. width: | 523 mm |
| External dimensions (WxDxH): | 523 x 413 x 698 mm |
| Height int.: | 285 mm |
| Int. width: | 285 mm |
| Internal dimensions (WxDxH): | 285 x 295 x 285 mm |
| Manufacturer Article Number: | 9630-0005 |
| Material inserts: | Aluminium |
| Max. no. of inserts: | 4 |
| Max. temperature: | 220 °C |
| Max. voltage: | 120 V |
| Min. temperature: | +9 °C |
| Min. voltage: | 100 V |
| Nominal capacity: | 24 l |
| Plug type: | US |
| Power supply: | 100 ... 120 V, 50/60 Hz |
| Power supply frequency: | 50/60 Hz |
| Rated capacity: | 0.9 kW |
| Temperature: | RT+9 ... 220 °C |
| Temperature addition: | RT |
| Temperature stability: | ±0,1 K (100 °C) |
| Type: | VD 23UL |
| Type of auxiliary energy: | Mains connection |
| UNSPSC: | 41104510 |
| Weight: | 64 kg |
